Atlas Pro8000EXT 8,000lb 4 Post Vehicle Lift - Extra Tall

The Atlas® Garage Pro 8000 EXT is a heavy-duty, extra-tall 4-post lift designed to provide a versatile lifting solution for both home garages and restoration shops. With its 8,000 lb. capacity and added height, it's perfect for stacking taller vehicles or performing service tasks where more under-car clearance is needed. Its freestanding, portable design allows for easy repositioning in garages with limited space.

Specifications

• Lifting Capacity: 8,000 lbs

• Lifting Height to Top of Runway: 84 1/4"

• Clearance Under Runways: 79"

• Height of Columns: 98 1/2"

• Overall Width (Without Motor): 104 3/8"

• Overall Width (With Motor): 114"

• Overall Length with Approach Ramps: 207 1/2"

• Overall Length without Approach Ramps: 175 1/2"

• Approach Ramp Length: 36 3/8"

• Runway Width: 18 1/2"

• Runway Length: 165 1/2"

• Runway Thickness: 4 1/2"

• Width Between Runways: 37 3/8"

• Drive-Thru Width: 80 1/2"

• Clearance Between Columns: 94 1/2"

• Length Between Columns: 157 1/2"

• Maximum Wheelbase: 153 1/2"

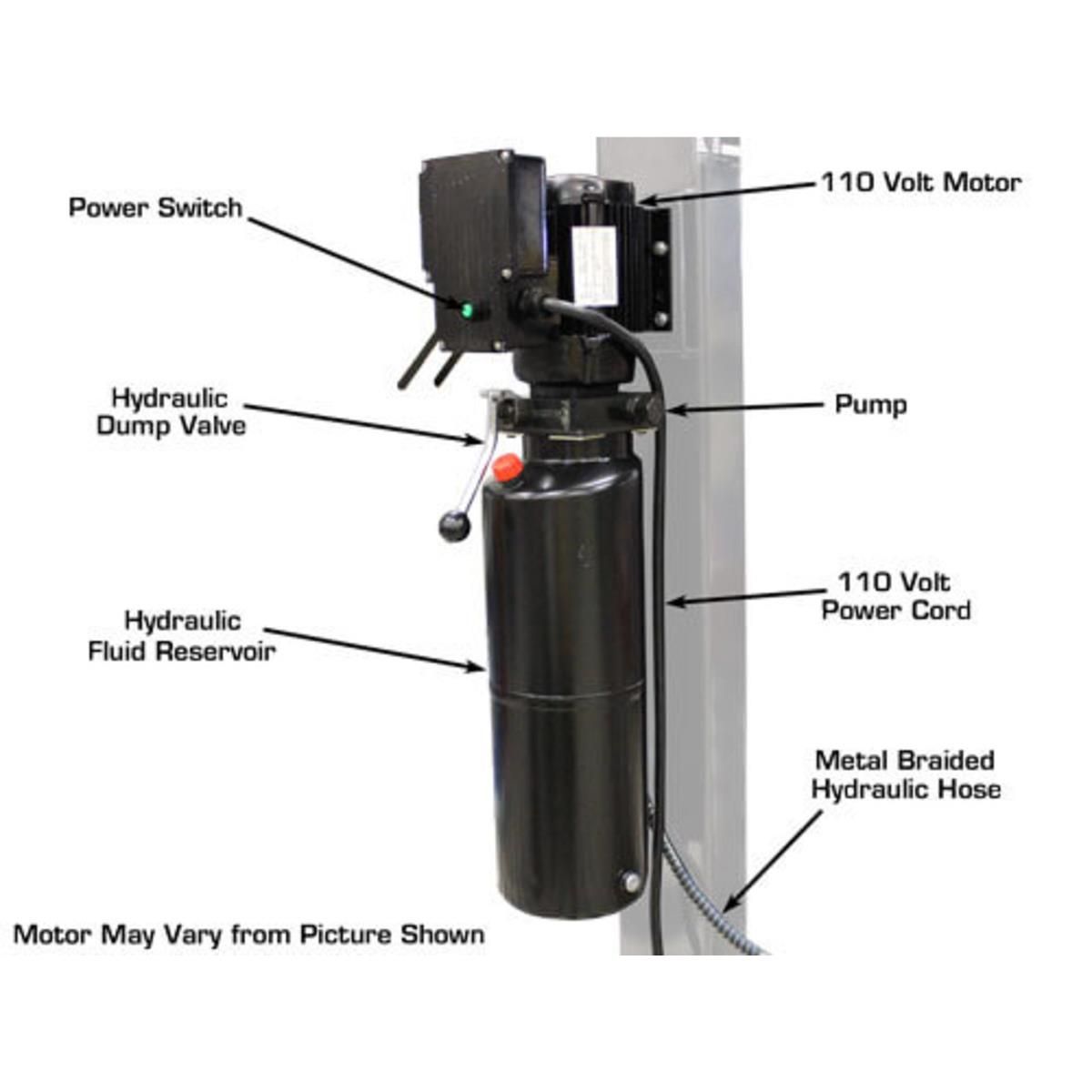

• Motor Power: 110V (30A breaker required)

• Oil Requirement: 3–5 gallons AW32/AW46 hydraulic oil (not included)

• Shipping Weight: Approx. 1,720 lbs

Features

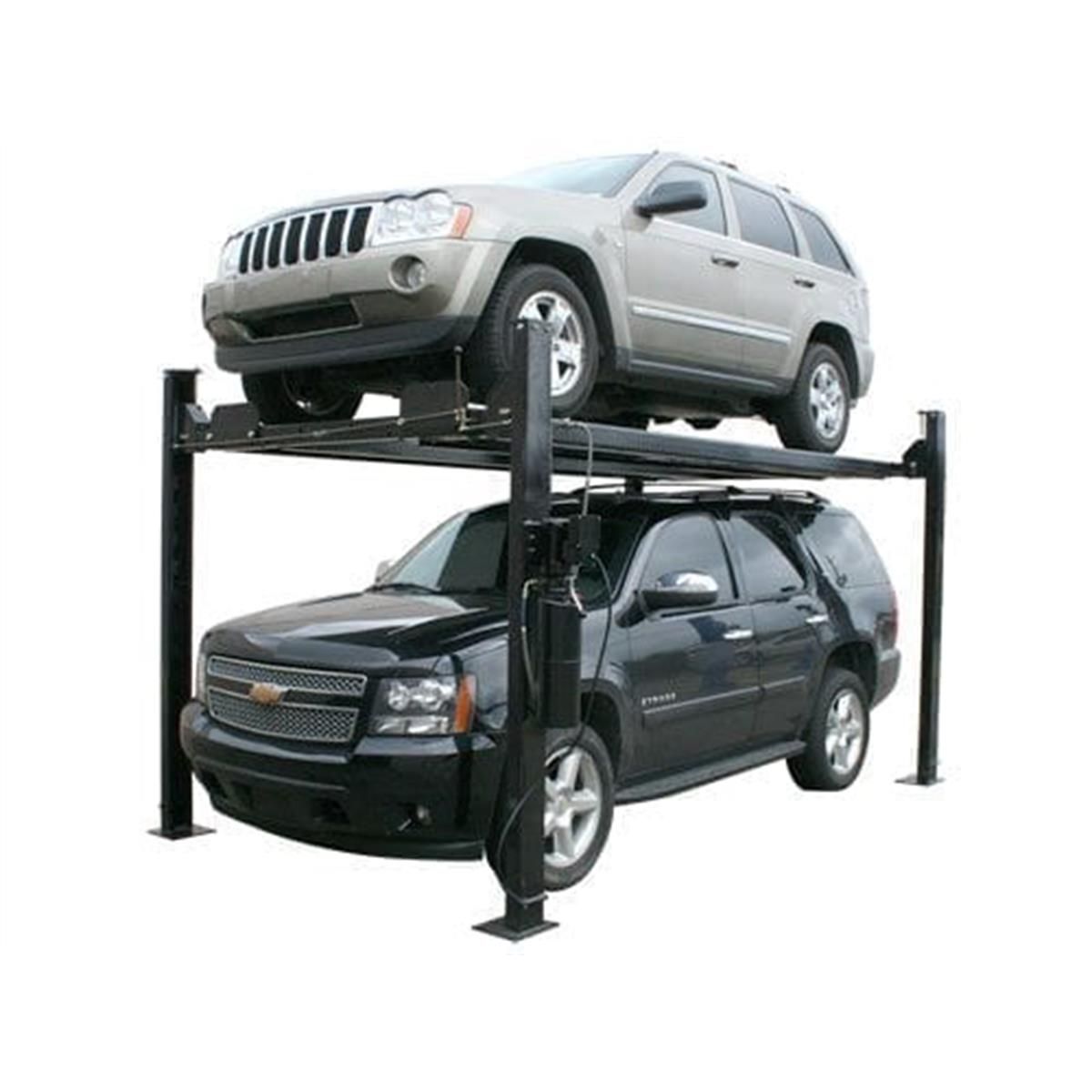

• Extra Height: 79" of clearance under the runways — ideal for stacking taller vehicles.

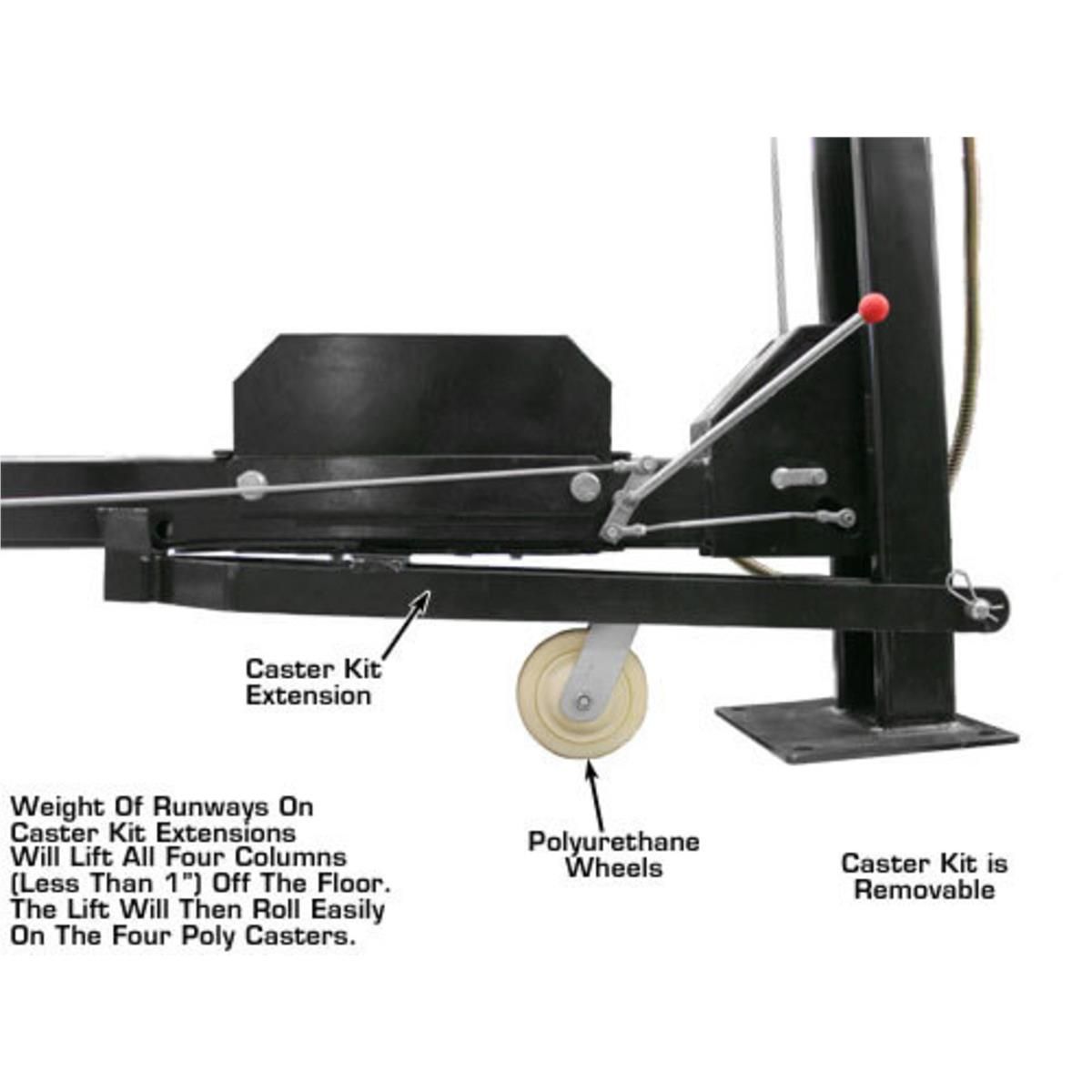

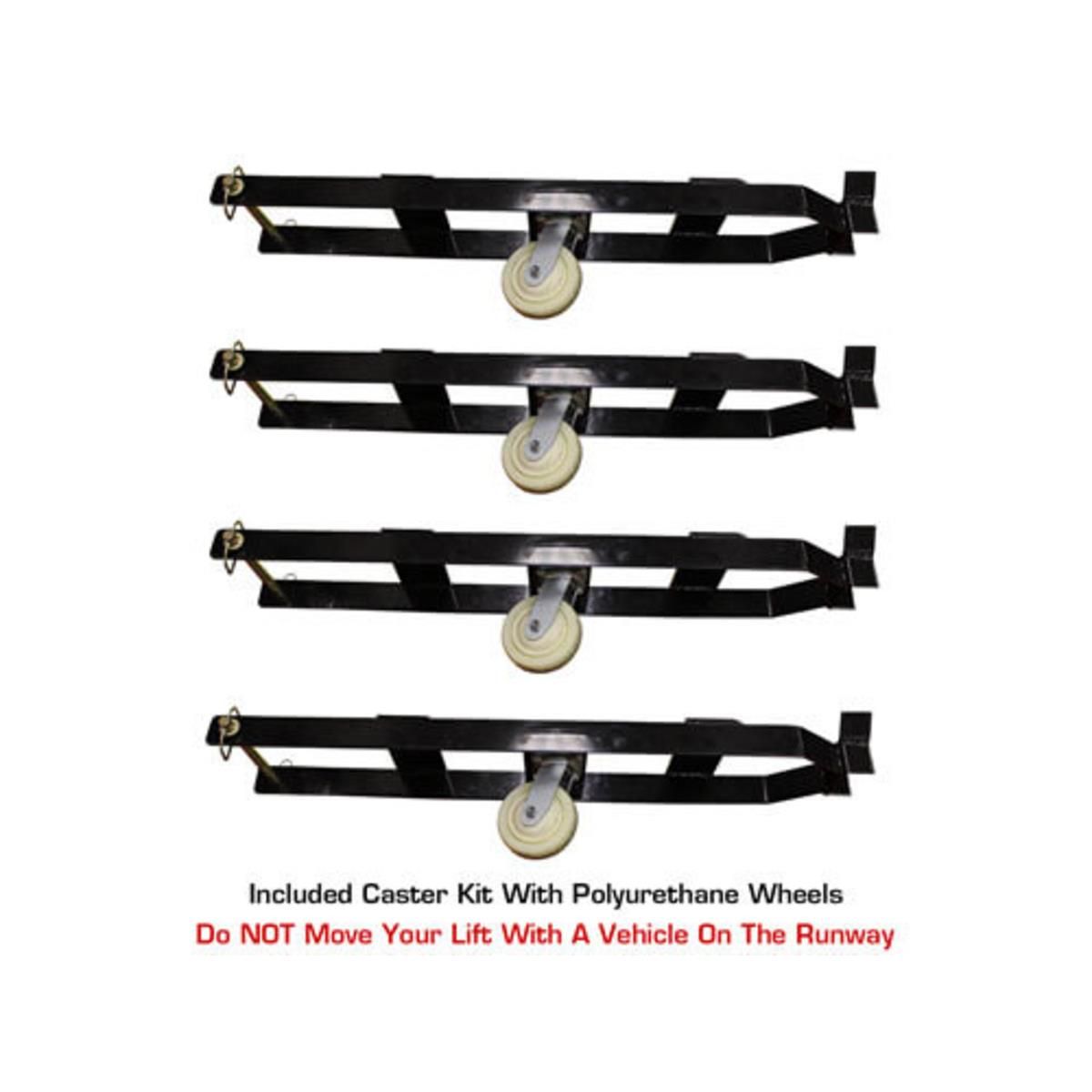

• Portable Mobility Kit: Includes caster kit with polyurethane wheels for easy movement.

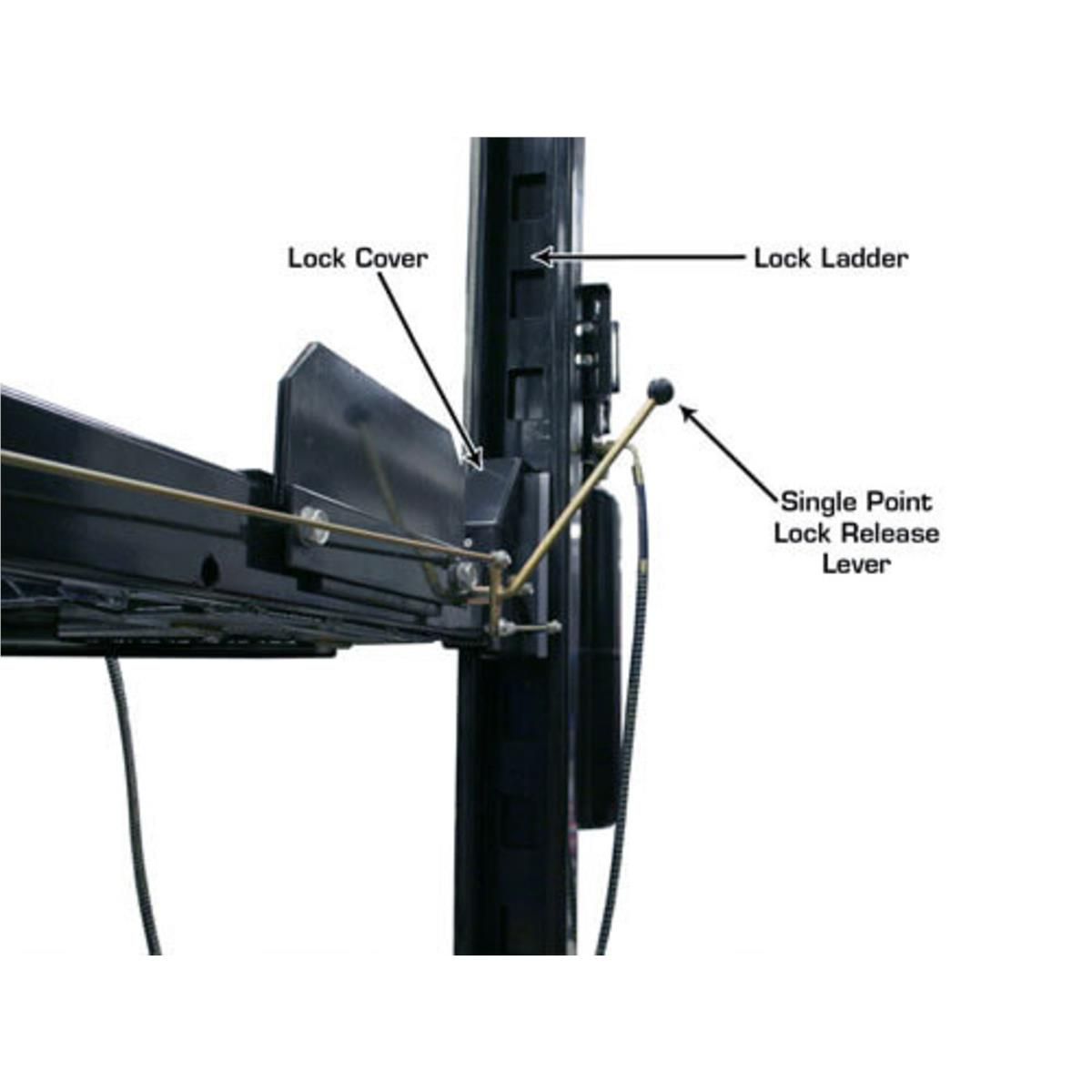

• Single-Point Lock Release: Unlocks all four corners simultaneously for quicker operation.

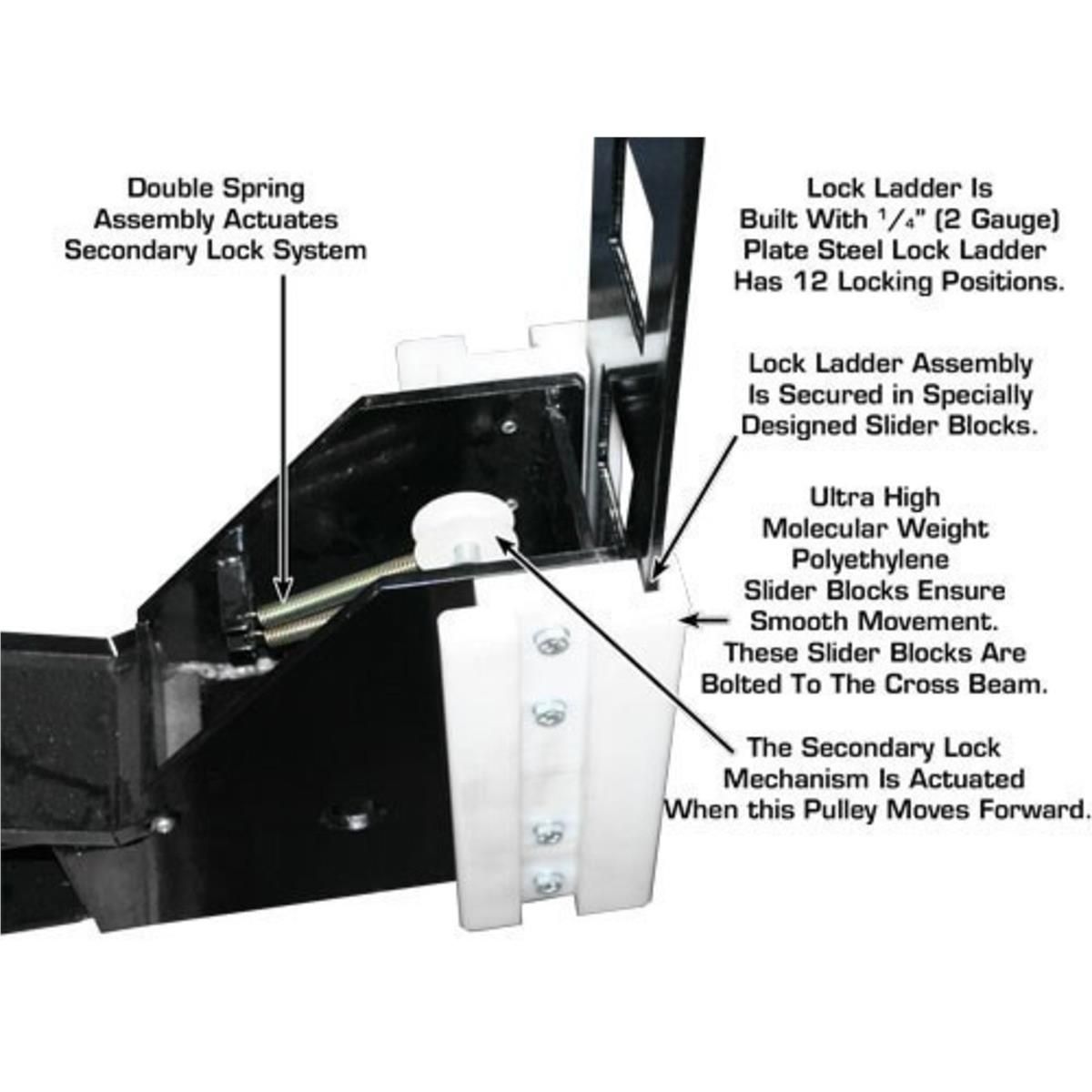

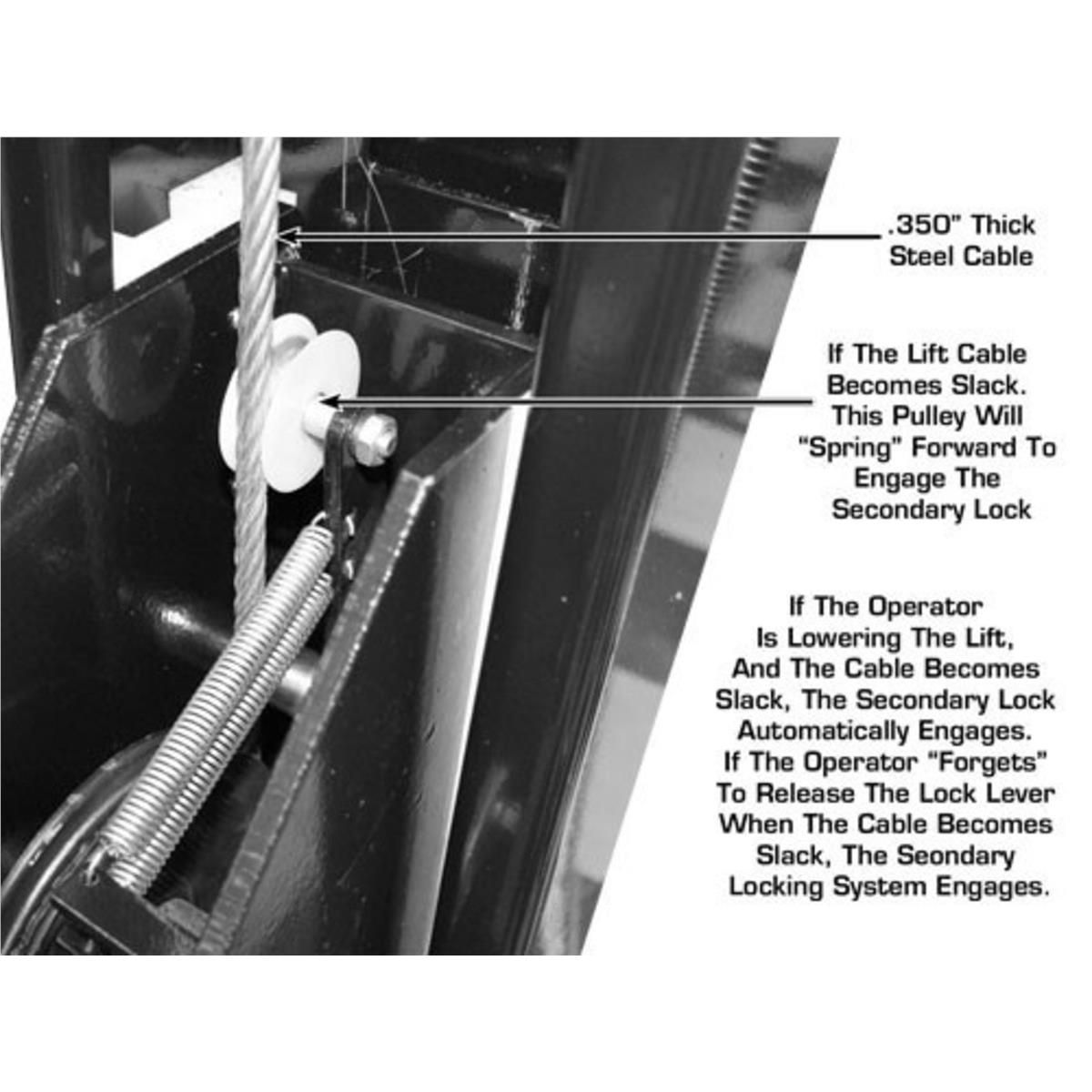

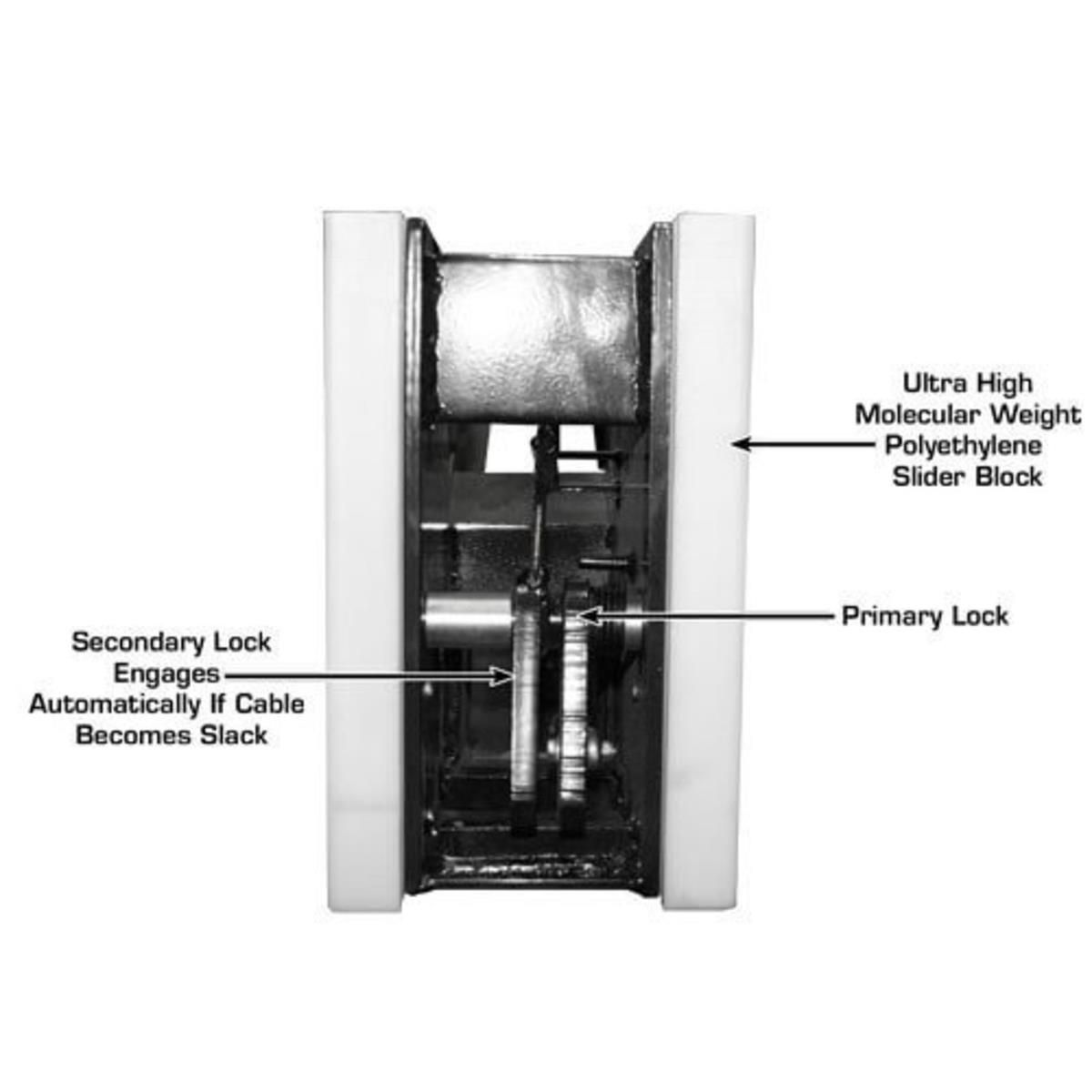

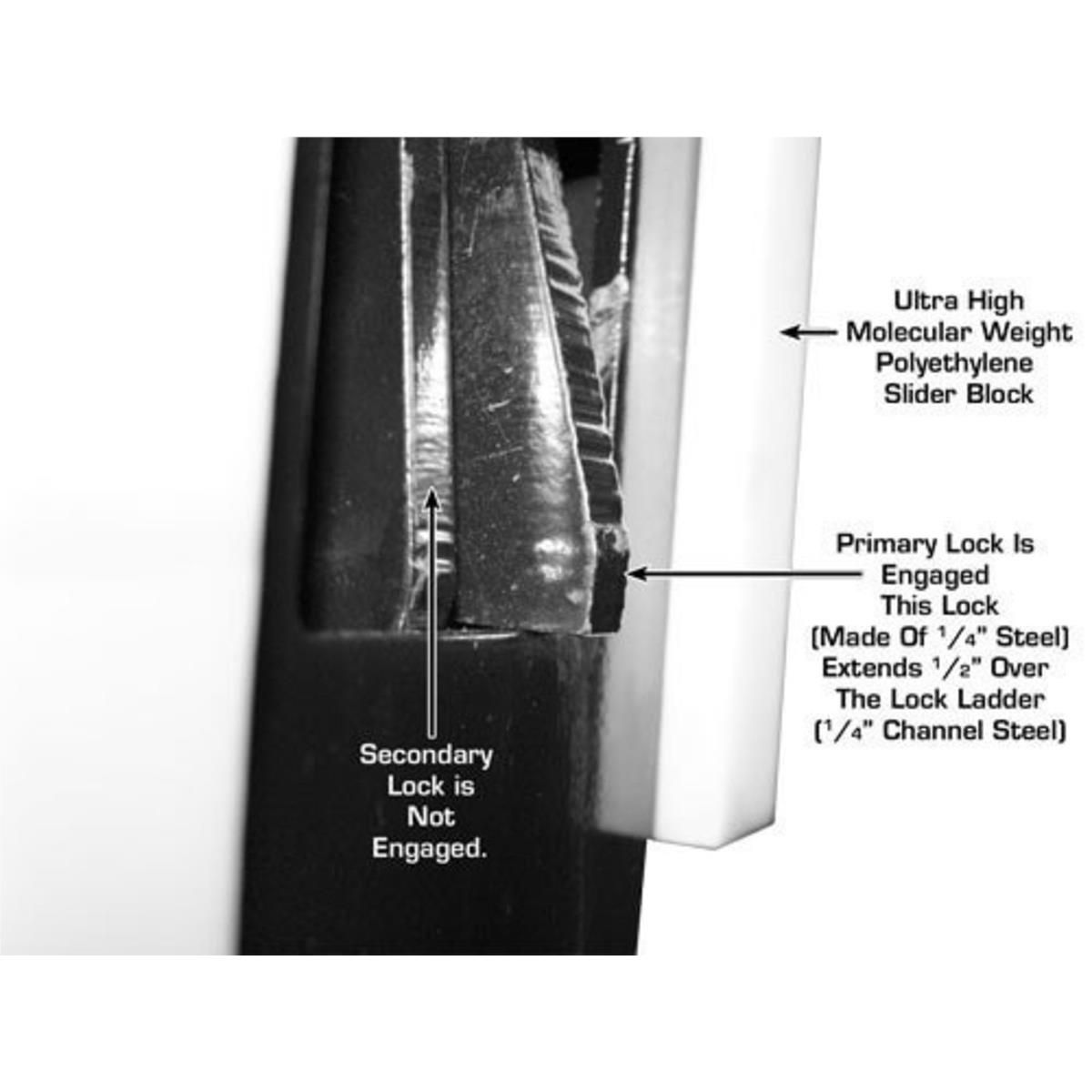

• Double Lock System: Ensures safety with mechanical and secondary safety locks.

• Diamond-Plated Runways: Slip-resistant surface adds extra grip and durability.

• Included Accessories:

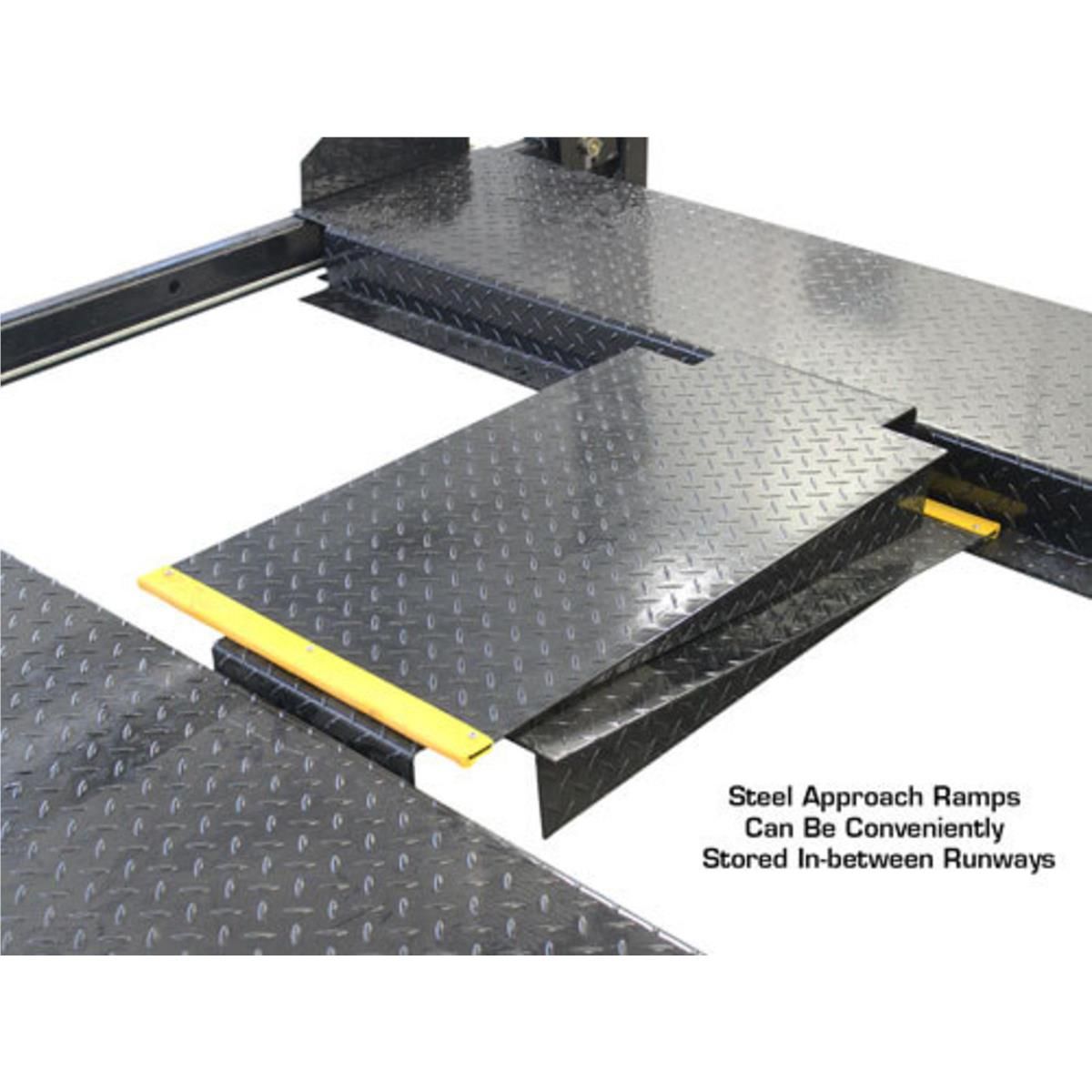

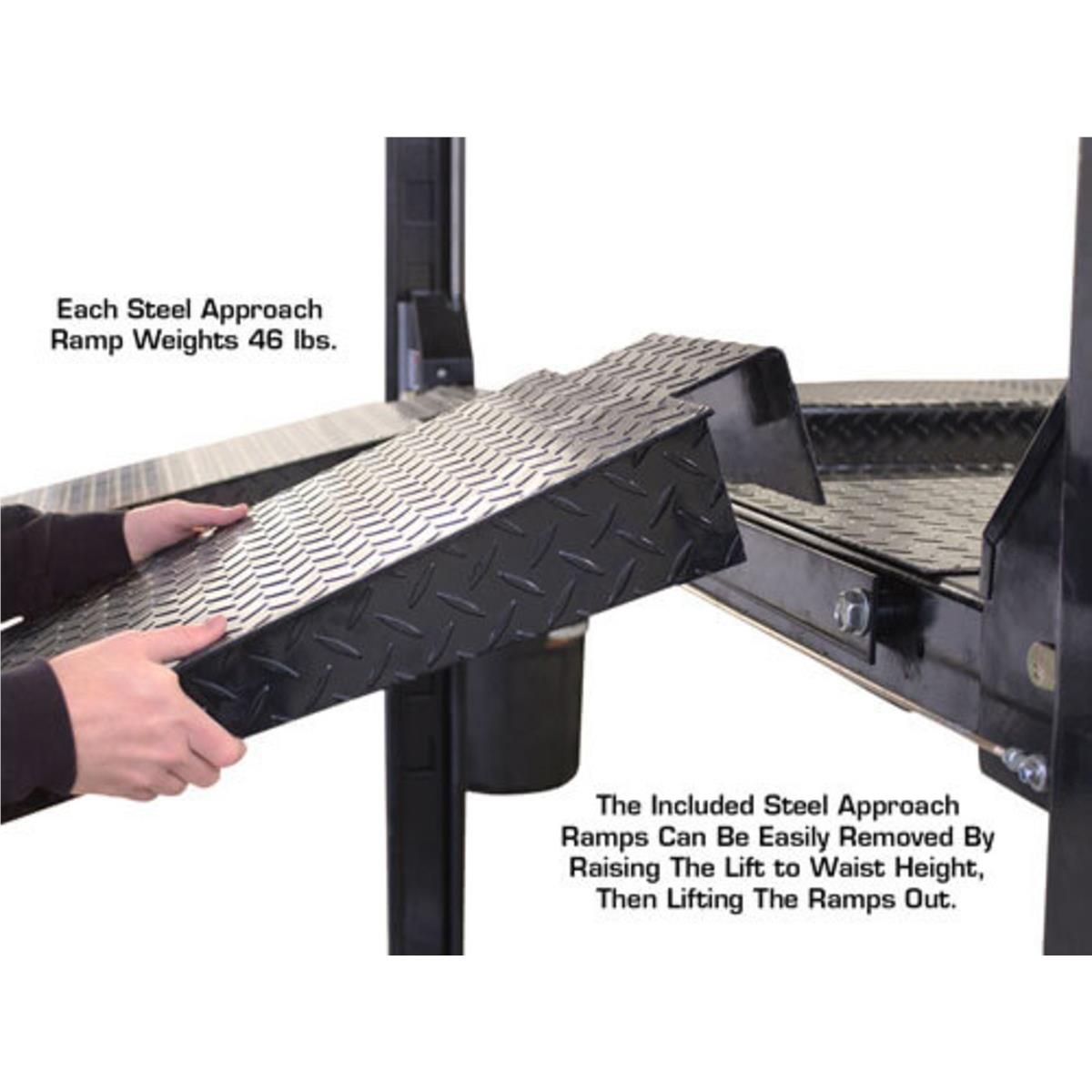

  • Steel approach ramps

  • Steel jack tray

  • Four plastic drip trays

  • Four wheel stops

  • Two rubber wheel chocks

  • Full caster kit

Installation

• Recommended Ceiling Height: Minimum 9 feet for safe operation and clearance.

• Concrete Requirements: At least 4” thick, 3,000 psi rated concrete slab.

• Electrical: Standard 110V power, 30-amp breaker required.

• Assembly Time: Varies by experience; professional installation is recommended for optimal safety.

Warranty

• Structure: 2-Year Limited Warranty

• Hydraulic and Electrical Components: 1-Year Limited Warranty

Important Details

• Home Garage Friendly: Compact and portable design means no permanent anchors are required.

• Vehicle Compatibility: Works with sedans, SUVs, light-duty trucks, and sports cars.

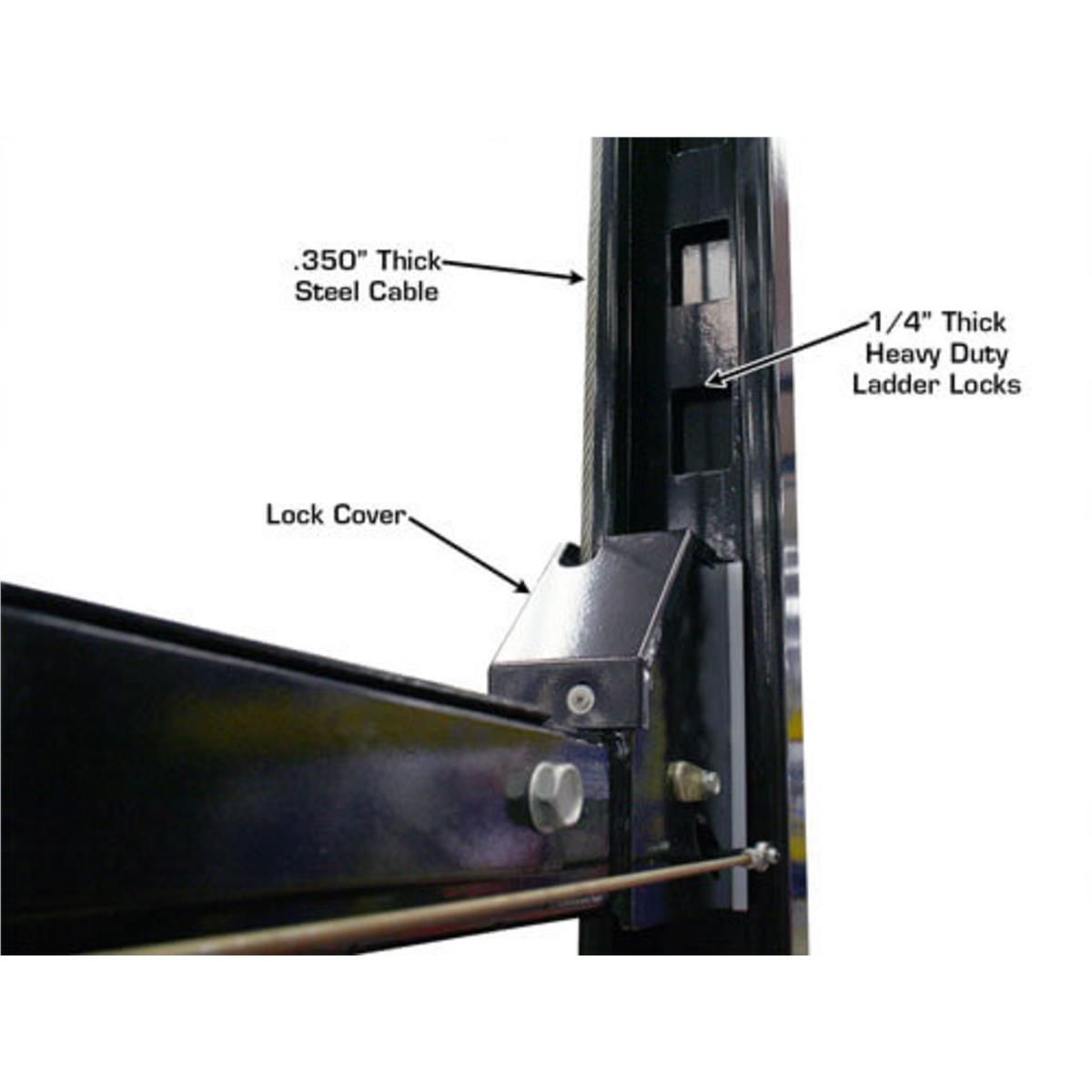

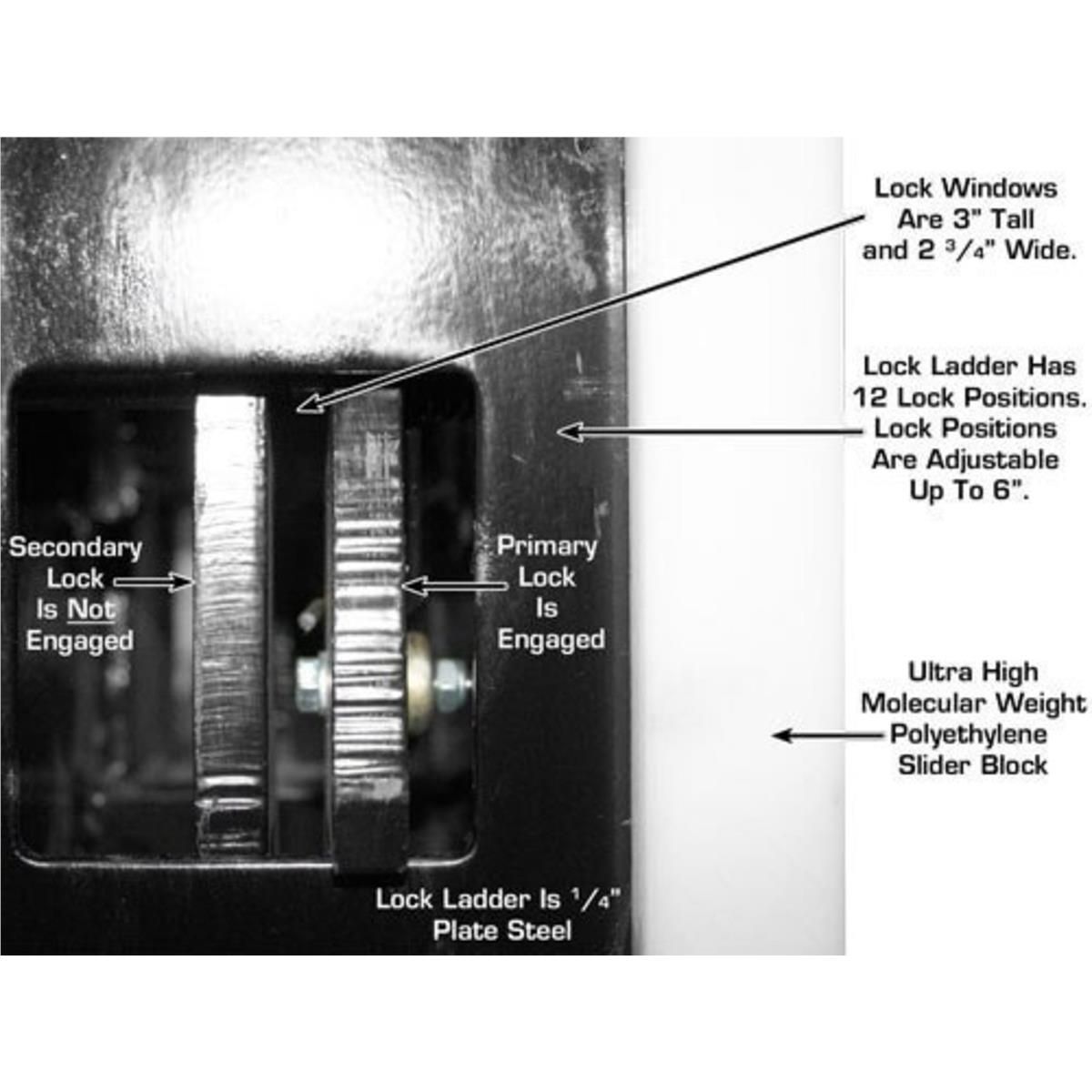

• Safety-First Engineering: The lock ladder design ensures secure positioning at various heights.

• Low Maintenance: Designed for years of use with minimal upkeep required.
