Atlas PVL10 10,000lb 2 Post Vehicle Lift - ALI Certified

Overview

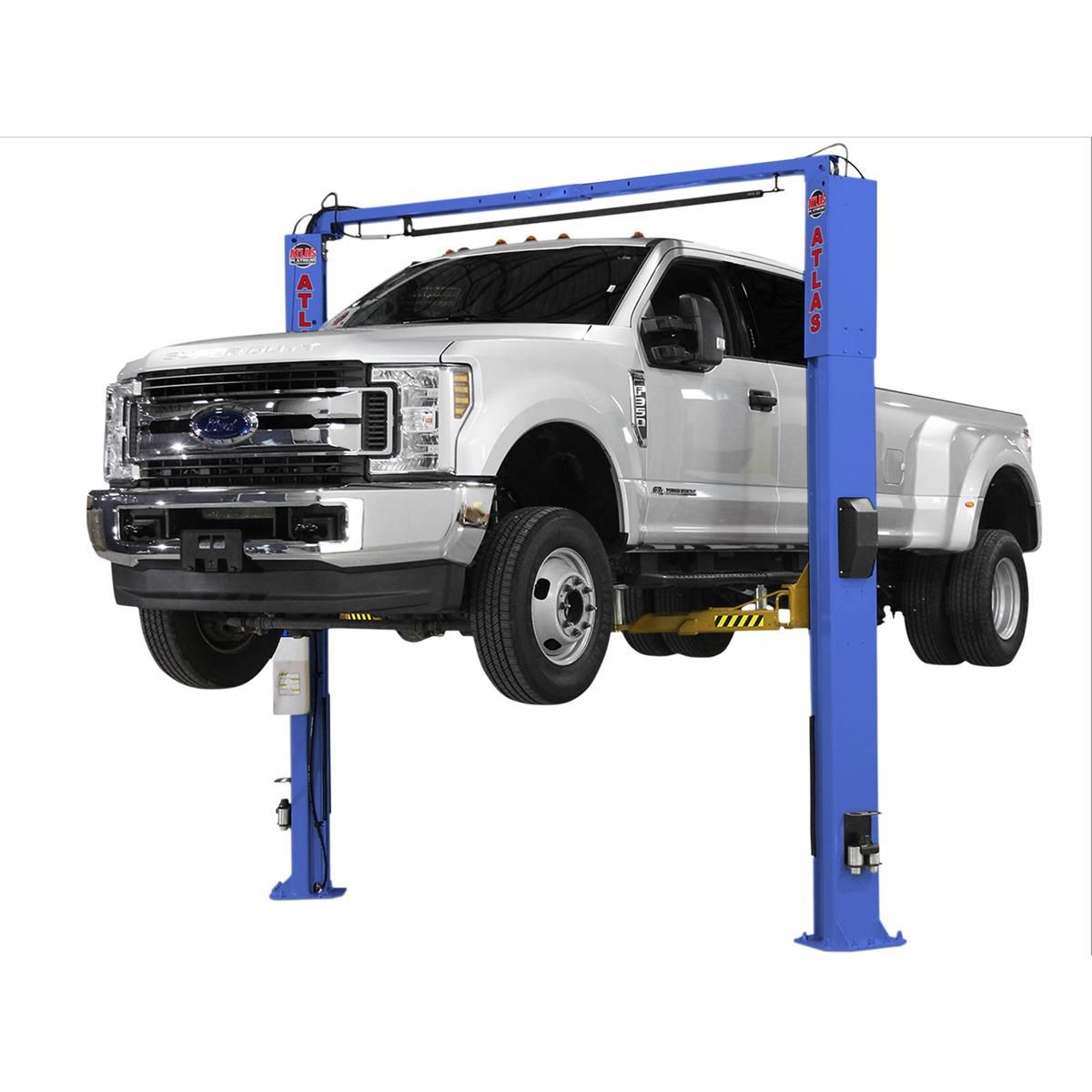

The Atlas PVL-10 is a premium-grade, ALI-certified two-post lift designed for professional automotive service environments. With a lifting capacity of 10,000 lbs, it accommodates a wide range of vehicles, from compact cars to light-duty trucks. Its overhead, clear-floor design ensures unobstructed workspace, enhancing efficiency and safety.

Specifications

• Lifting Capacity: 10,000 lbs

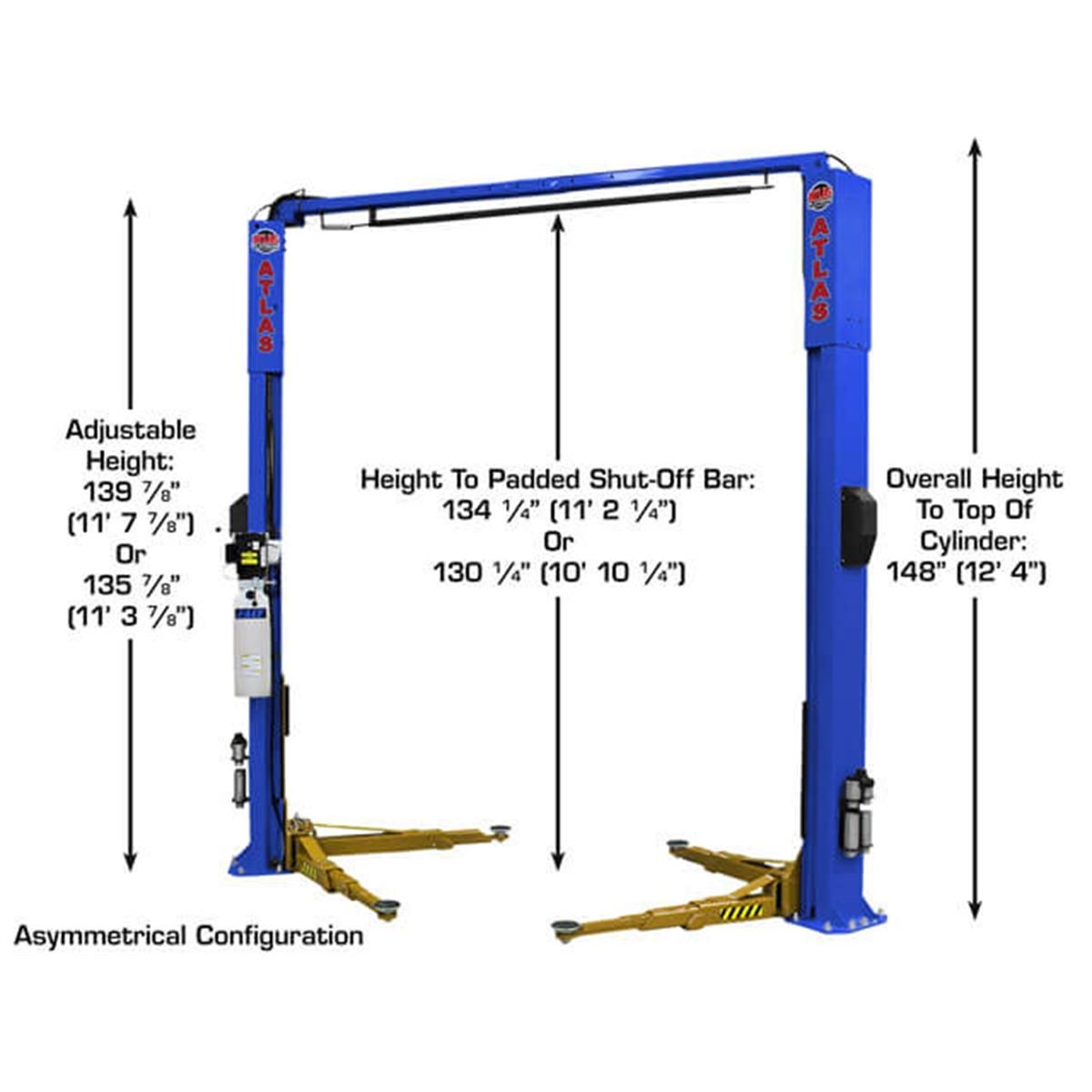

• Overall Height: Adjustable to 135 7/8" or 139 7/8"

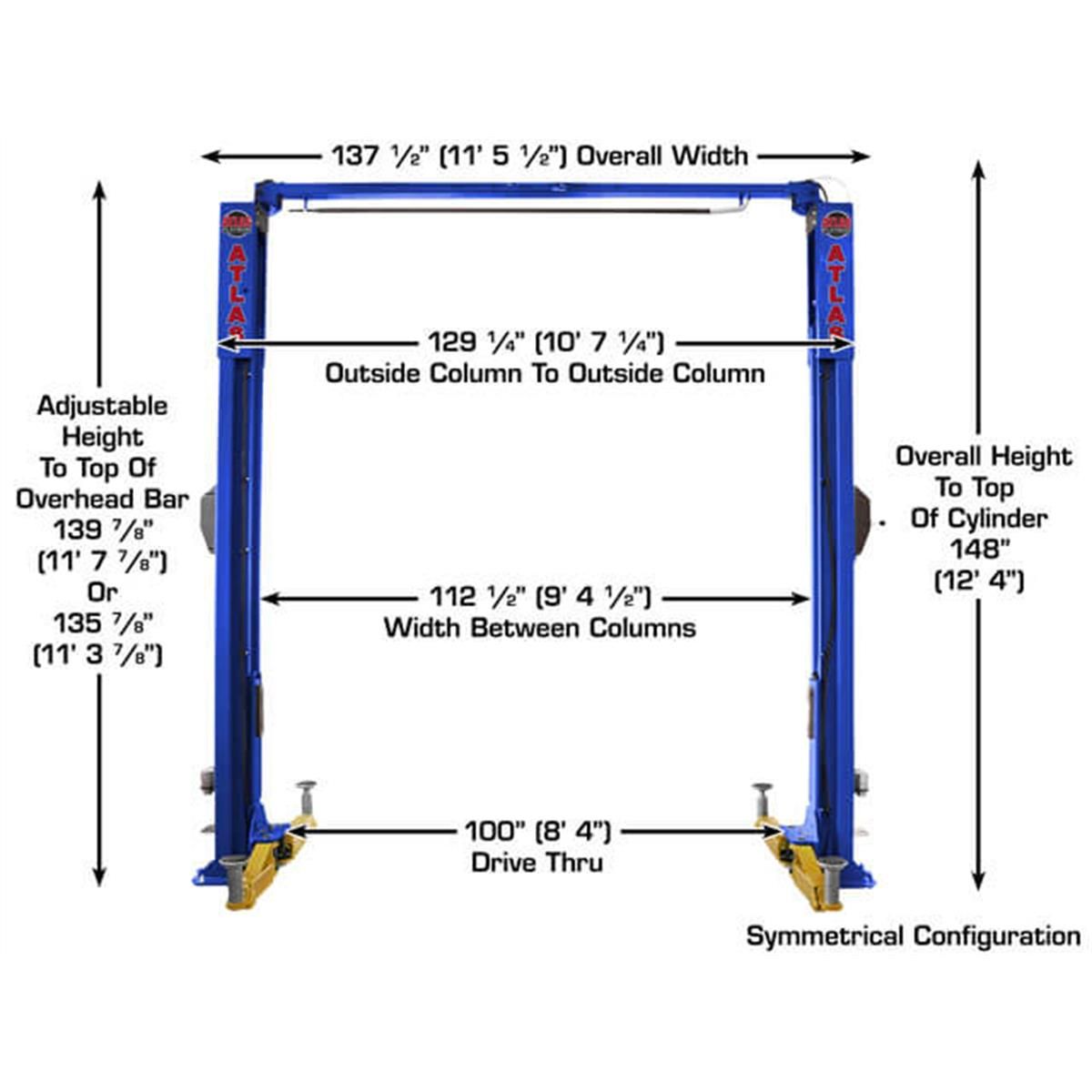

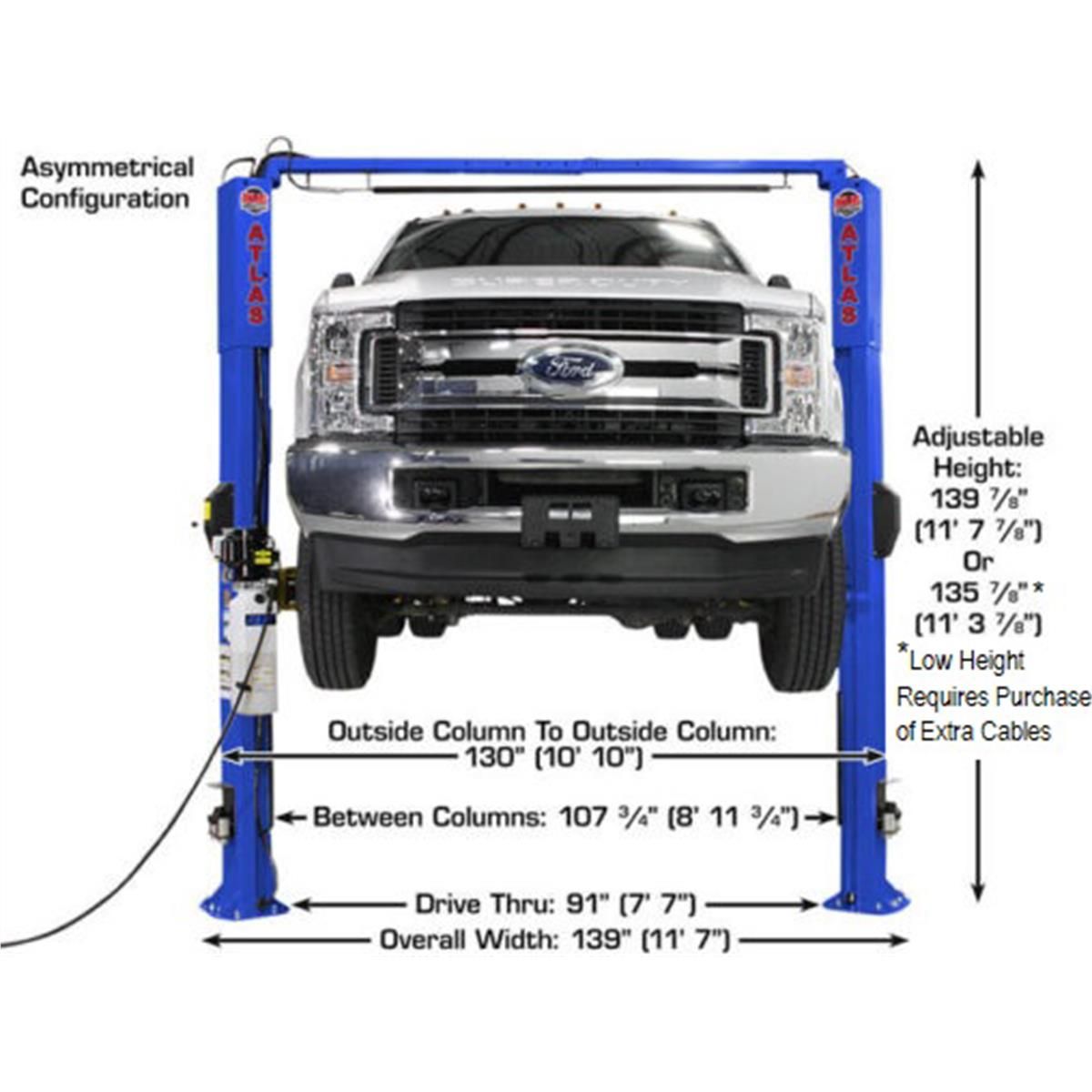

• Overall Width: 137 1/2" (Symmetrical) / 139" (Asymmetrical)

• Distance Between Columns: 129 1/4" (Symmetrical) / 130" (Asymmetrical)

• Drive-Through Width: 99 1/2" (Symmetrical) / 91" (Asymmetrical)

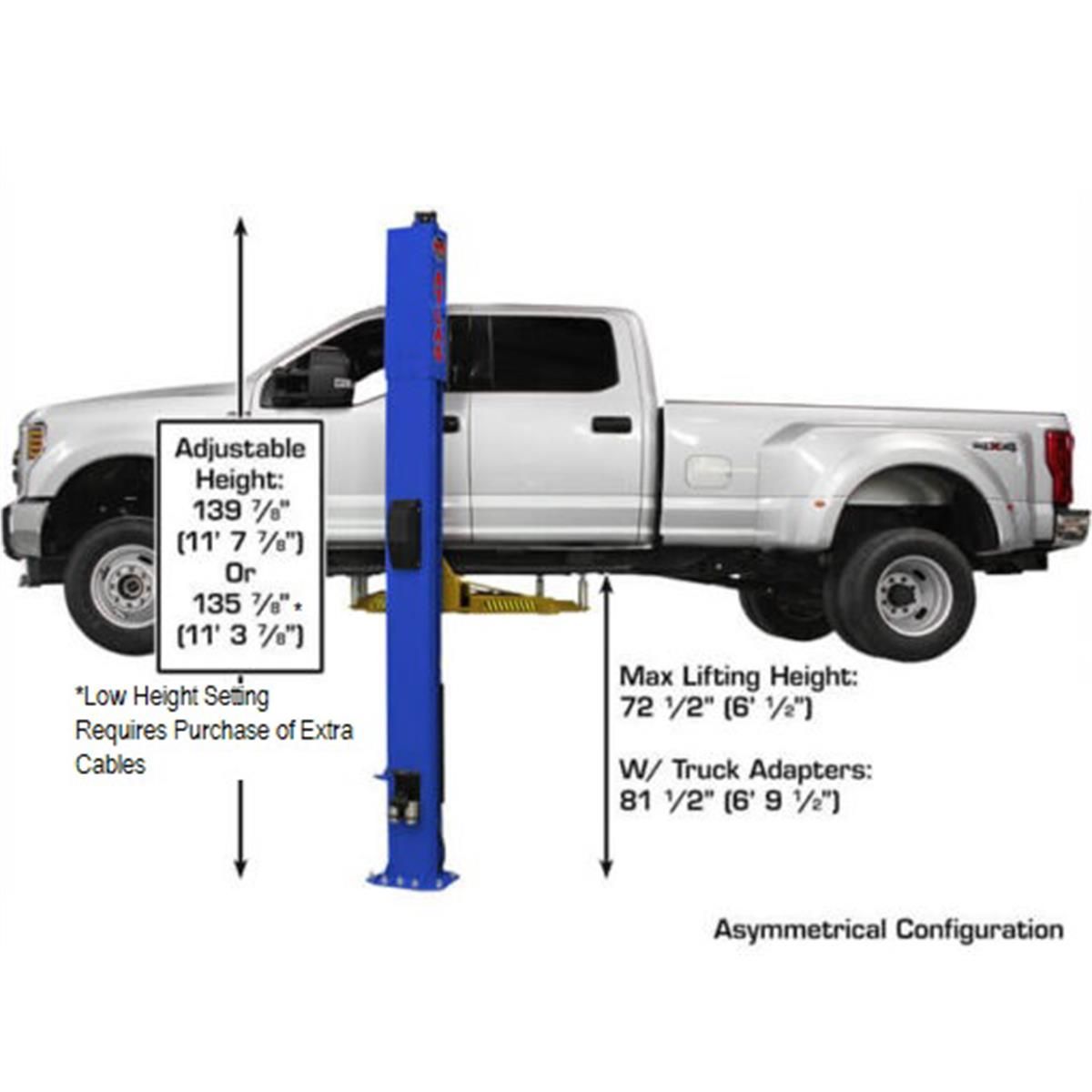

• Maximum Lift Height (with Adapters): 79 1/4" to 81 1/2"

• Maximum Lift Height (without Adapters): 70" to 72 1/2"

• Front Arm Length: 22" (Min) to 43 1/2" (Max)

• Rear Arm Length: 35" (Min) to 58" (Max)

• Column Size: 10 1/4" x 7"

• Base Plate Size: 15" x 18"

• Motor/Electrical Requirements: 220V single-phase (30 amp breaker recommended)

• Oil Requirement: 3-5 gallons AW32/AW46 (not included)

• Concrete Requirements: Minimum 4" thickness with a strength of 3,000 PSI

• Shipping Weight: Approximately 1,850 lbs

Features

• ALI Certified: Meets the standards set by the Automotive Lift Institute for safety and performance.

• Double "S" Column Design: Enhances column strength and stability.

• Adjustable Height: Accommodates various ceiling heights with two adjustable settings.

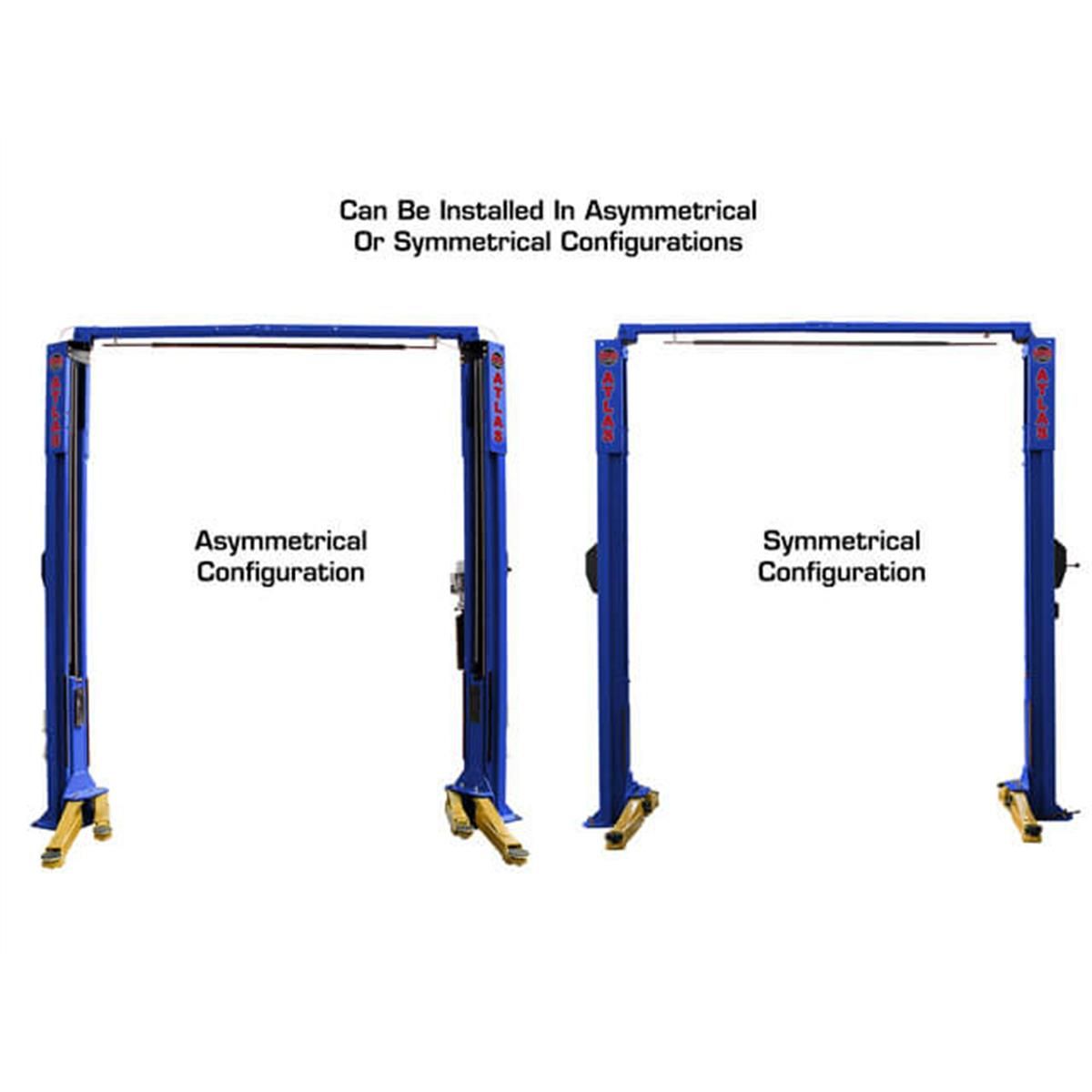

• Symmetric or Asymmetric Configuration: Allows flexibility in installation to suit different workspace requirements.

• Three-Stage Front Arms: Provides extended reach and versatility for various vehicle lifting points.

• Double Screw-Up Adapters: Enable precise positioning of lift pads in direct contact with vehicle lifting points.

• Truck Adapter Set Included: Accommodates a wider range of vehicle heights.

• Protective Rubber Pads: Mounted on carriages to prevent vehicle damage.

• Rubber Column Guards: Protect vehicle doors from contact with columns.

• Single-Point Lock Release: Simplifies operation by unlocking both columns simultaneously.

• Powder-Coated Finish: Enhances durability and resistance to corrosion.

• ALLY Hydraulic AL2850 Power Unit: Certified by MET Laboratories Inc. for electrical compliance in the U.S. and Canada. Features heavy-duty armatures and increased silver content in wires and connections for efficient operation and reduced heat generation. Carries a two-year limited warranty.

Warranty

• Structural Components: 5-year warranty

• Hydraulic Components: 2-year warranty

• Wear Items: 90-day warranty on parts only

The Atlas PVL-10 offers a combination of strength, flexibility, and safety features, making it a reliable choice for various automotive lifting needs.
