Atlas BP8000 8,000 2 Post Vehicle Lift

Overview

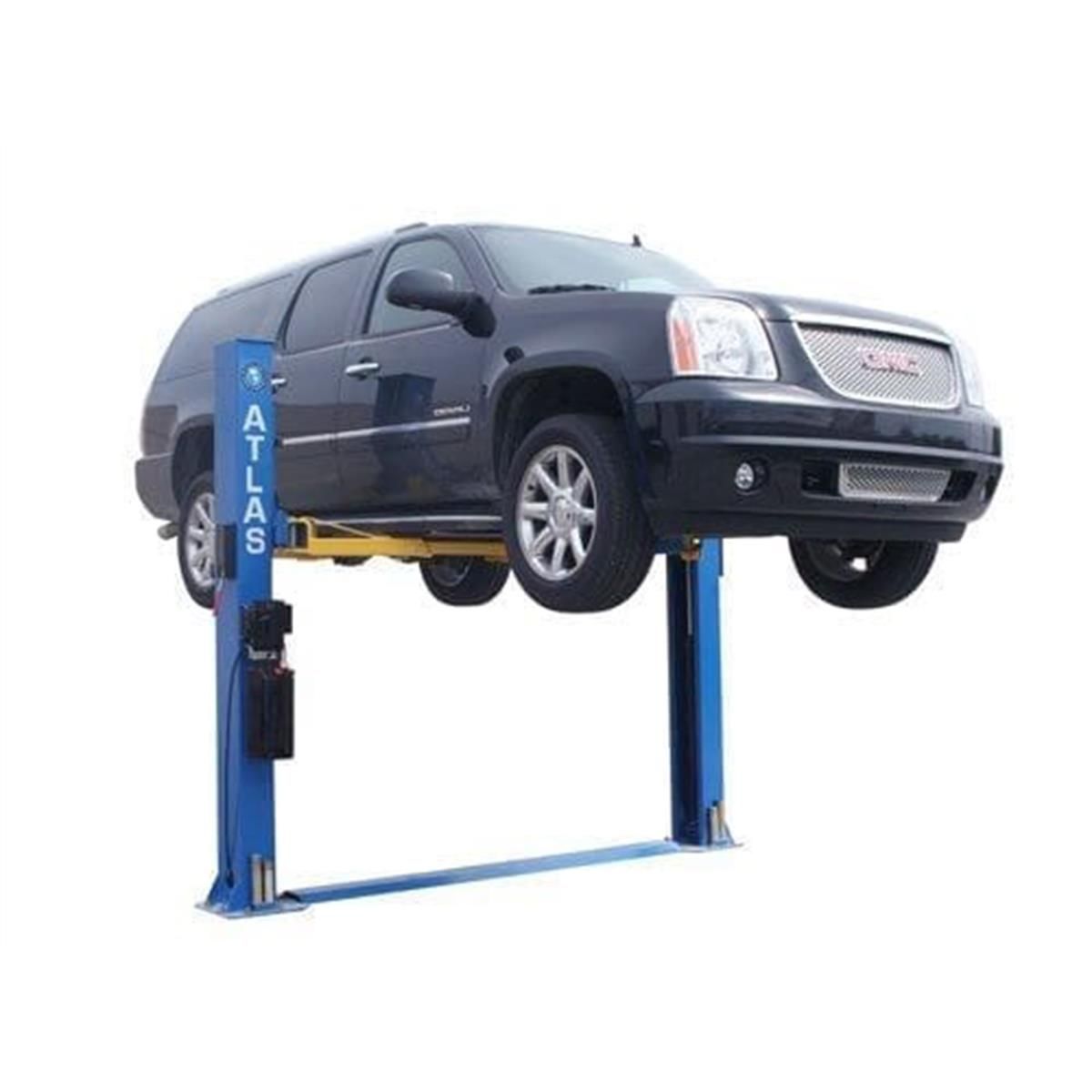

The Atlas® BP8000 is an 8,000 lb. capacity baseplate two-post lift designed for garages with low ceilings. With a total column height of 108 inches (9 feet), it can be installed in spaces with ceilings as low as 9 feet 3 inches. Despite its compact design, the BP8000 incorporates many features found in larger, more expensive lifts, making it suitable for both professional and home garages.

Specifications

• Lifting Capacity: 8,000 lbs

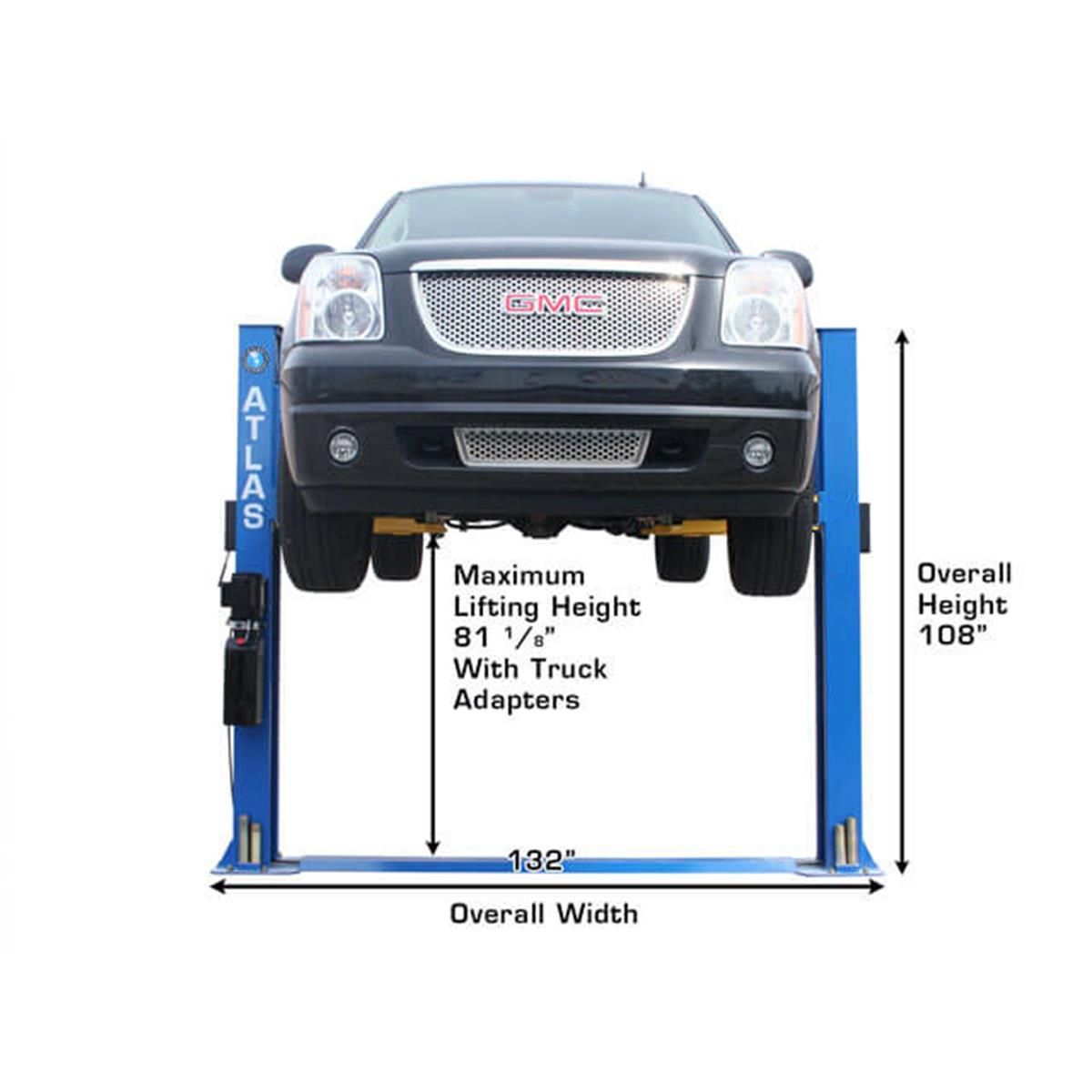

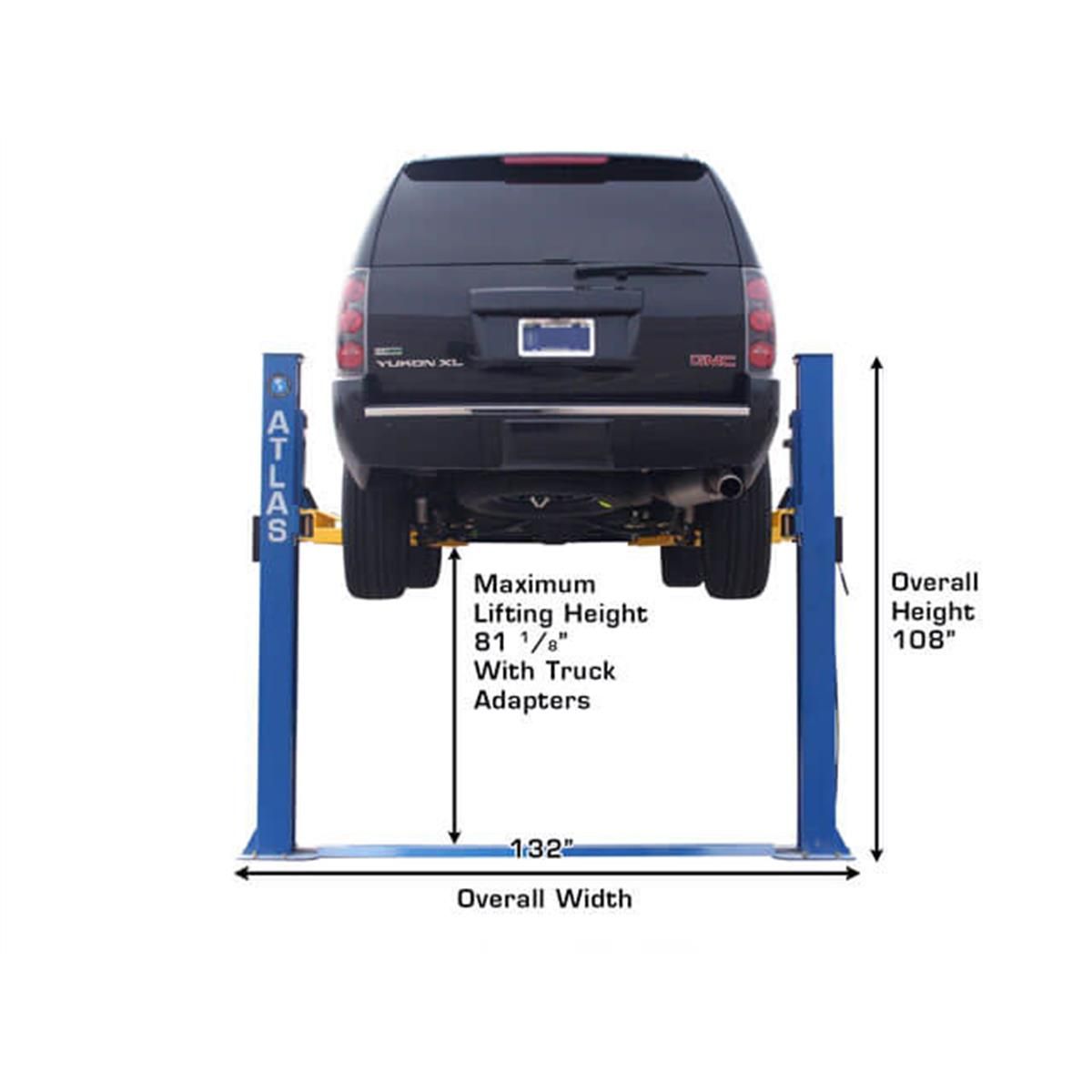

• Overall Height: 108" (9')

• Overall Floor Width: 132" (11')

• Outside Column to Outside Column: 124" (10' 4")

• Inside Column Width: 109 1/8" (9' 1 1/8")

• Drive-Thru Clearance: 99" (8' 3")

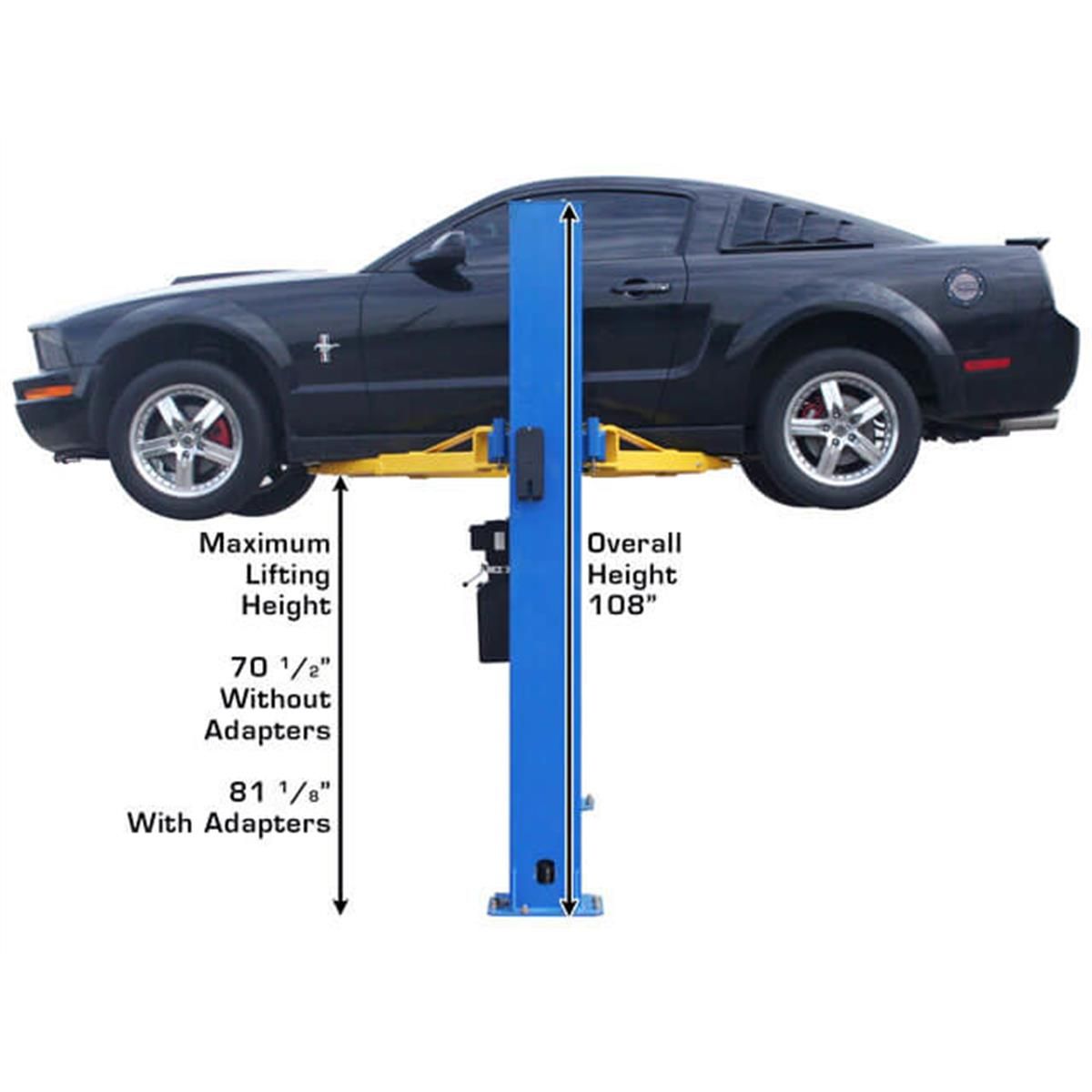

• Maximum Lift Height (Without Adapters): 75 1/2"

• Maximum Lift Height (With Adapters): 86 1/2"

• Minimum Arm Height: 4"

• Column Size: 7 1/4" x 11"

• Column Steel Thickness: 6 mm

• Base Plate Dimensions: 17 1/2" x 17 3/4"

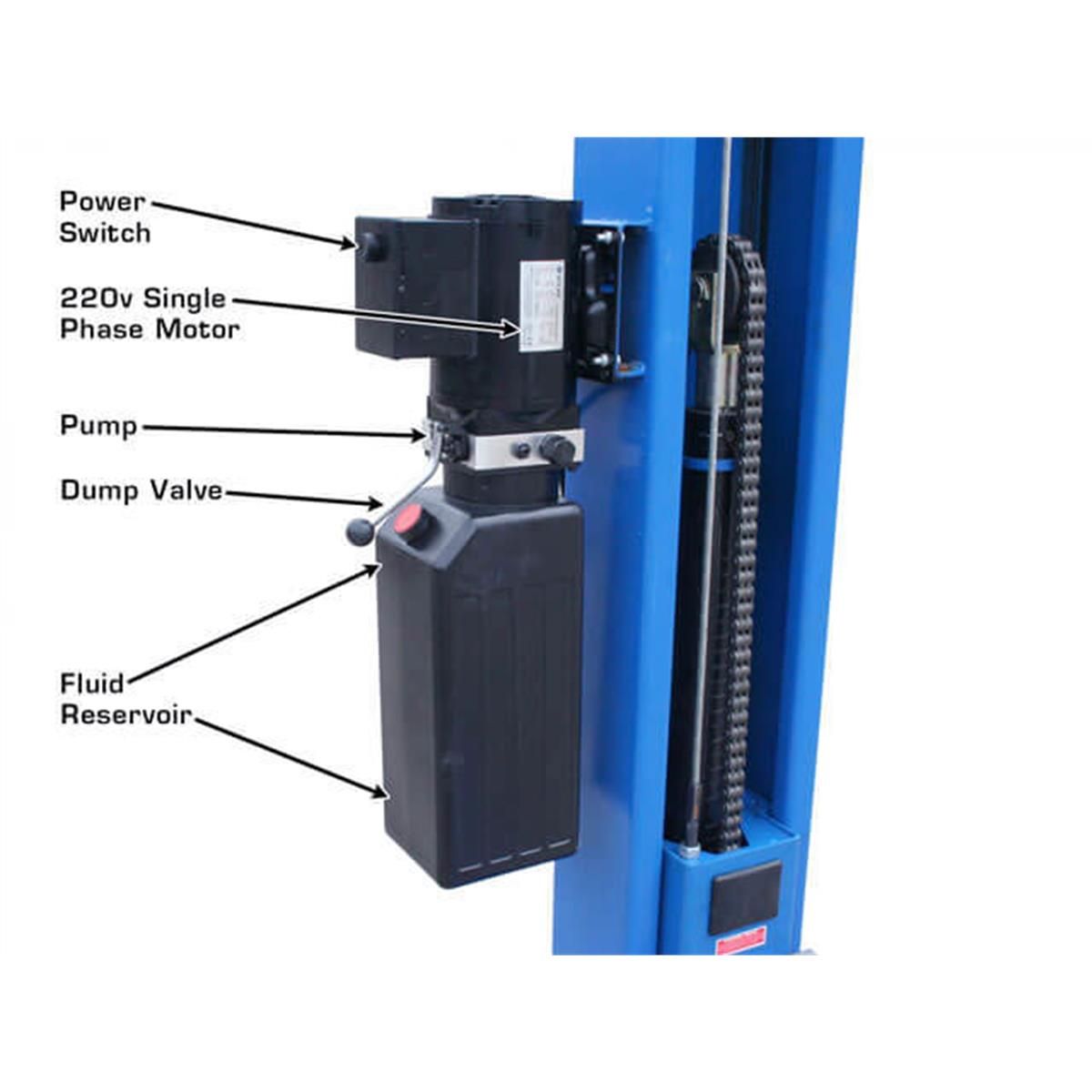

• Motor/Electrical Requirement: 220V single-phase, 30A breaker recommended

• Oil Requirement: 3-5 gallons AW32/AW46 (not included)

• Shipping Weight: Approximately 1,300 lbs

• Adapter Heights: 4 each of 2", 3", and 6"

• Arm Hole/Adapter Peg Size: 1.5"

• Concrete Requirements: Minimum 4" thick concrete with a strength of 3,000 psi

Features

• Low Ceiling Compatibility: Designed for garages with ceilings as low as 9 feet 3 inches.

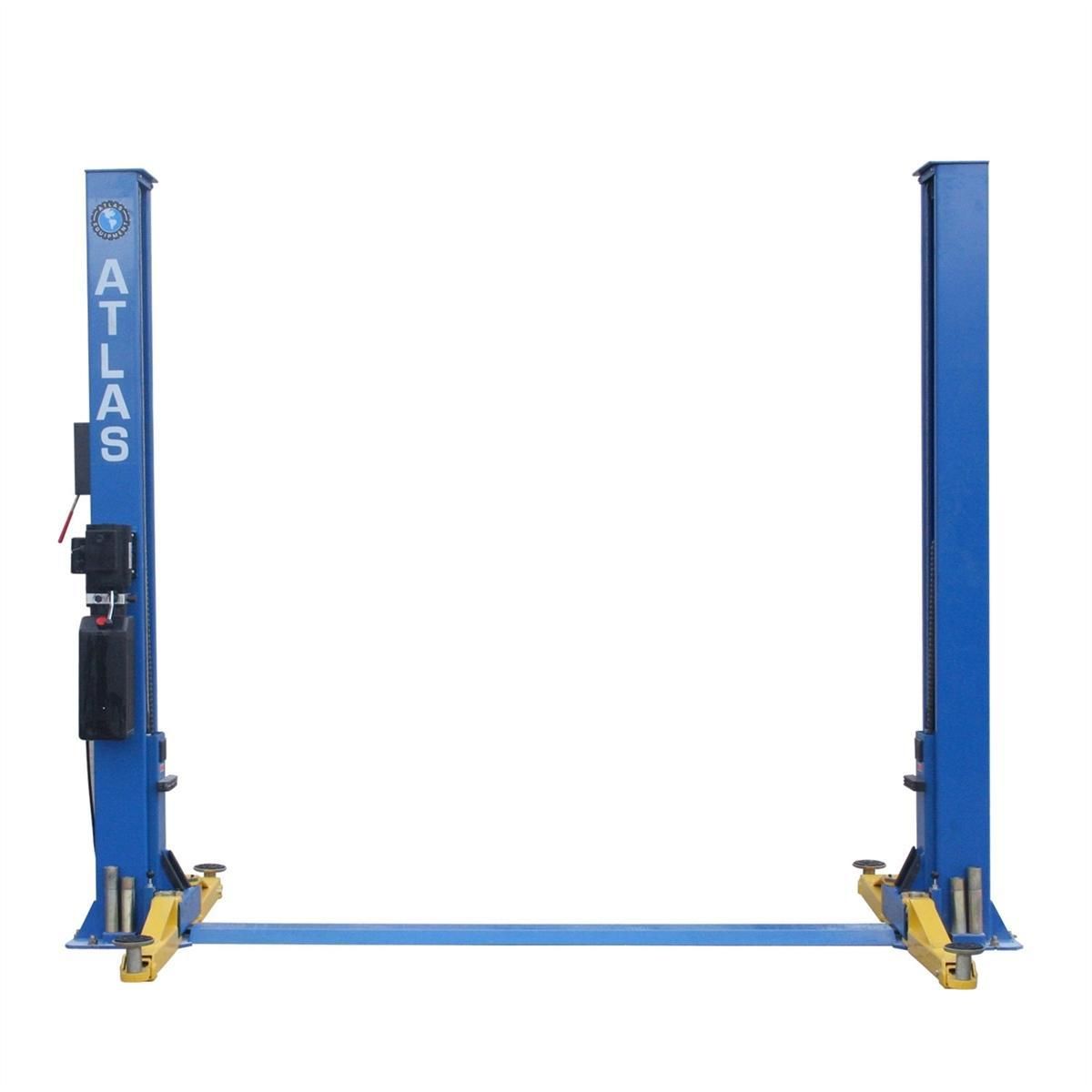

• Baseplate Design: Open-top style lift suitable for various garage settings.

• Super-Symmetric Arms: 3-stage front arms and 2-stage rear arms provide flexibility in lifting points.

• Automatic Arm Restraints: Ensures arms remain securely in place when the lift is raised.

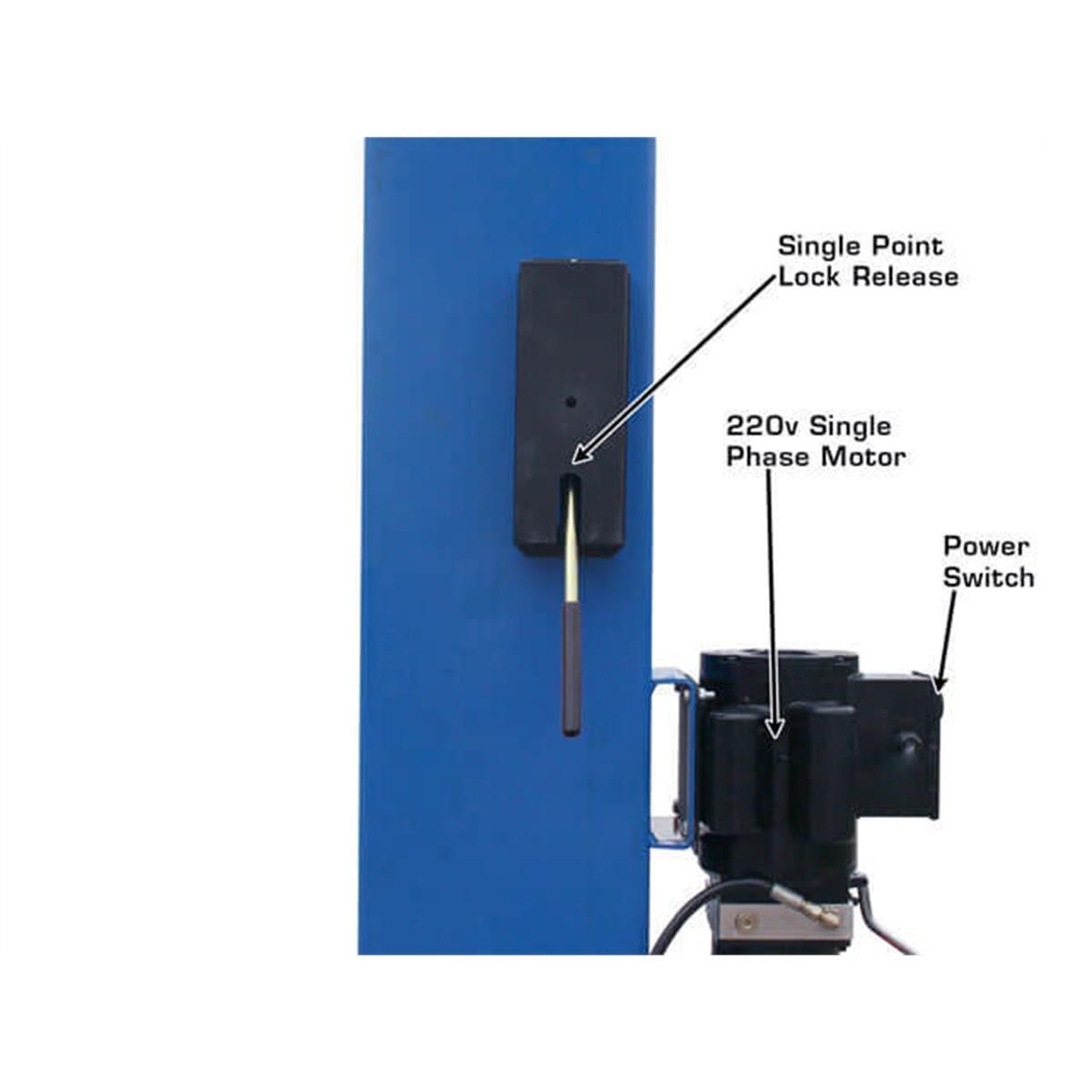

• Single-Point Lock Release: Allows both columns to be disengaged simultaneously for efficient operation.

• Double Safety Lock System: Provides an additional layer of safety during operation.

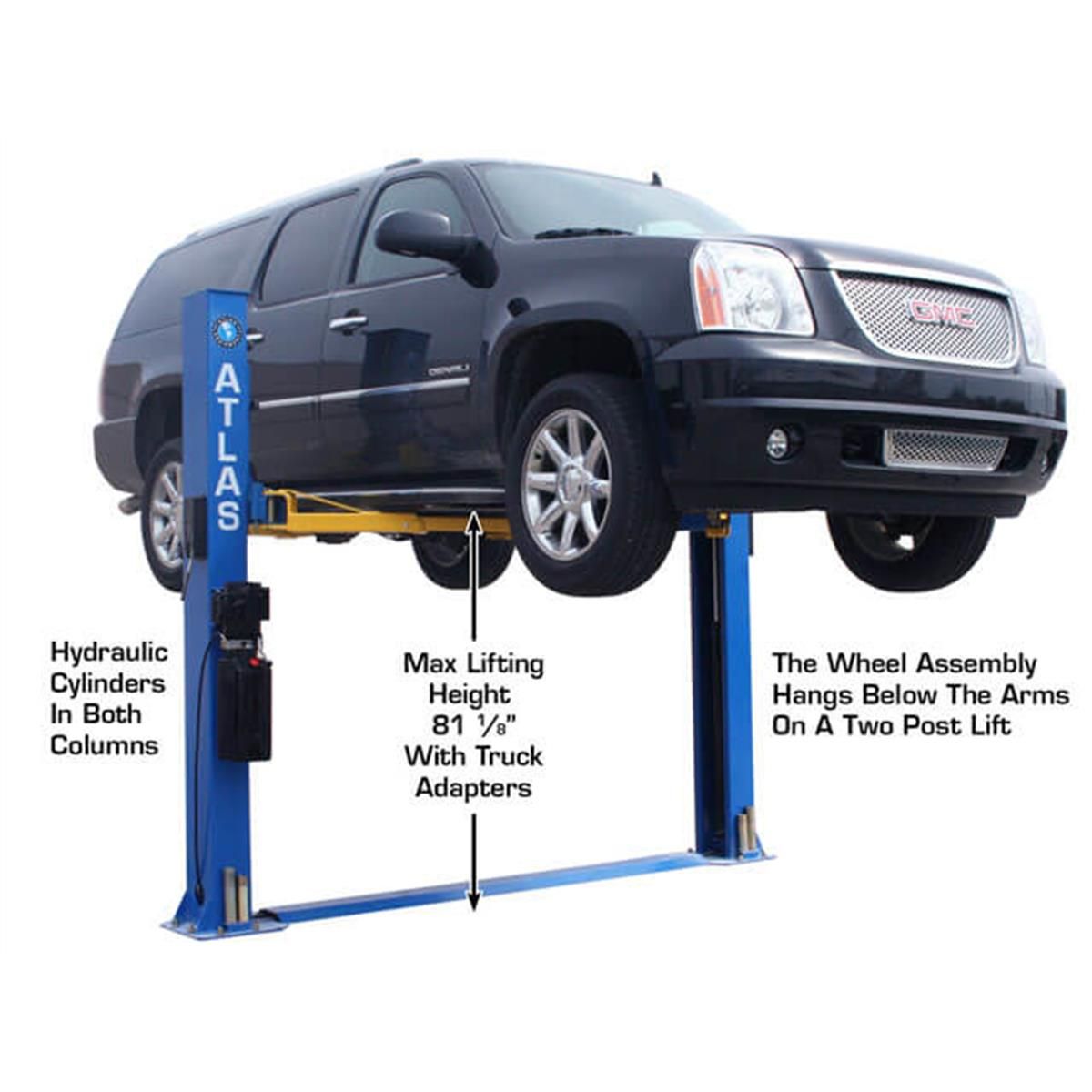

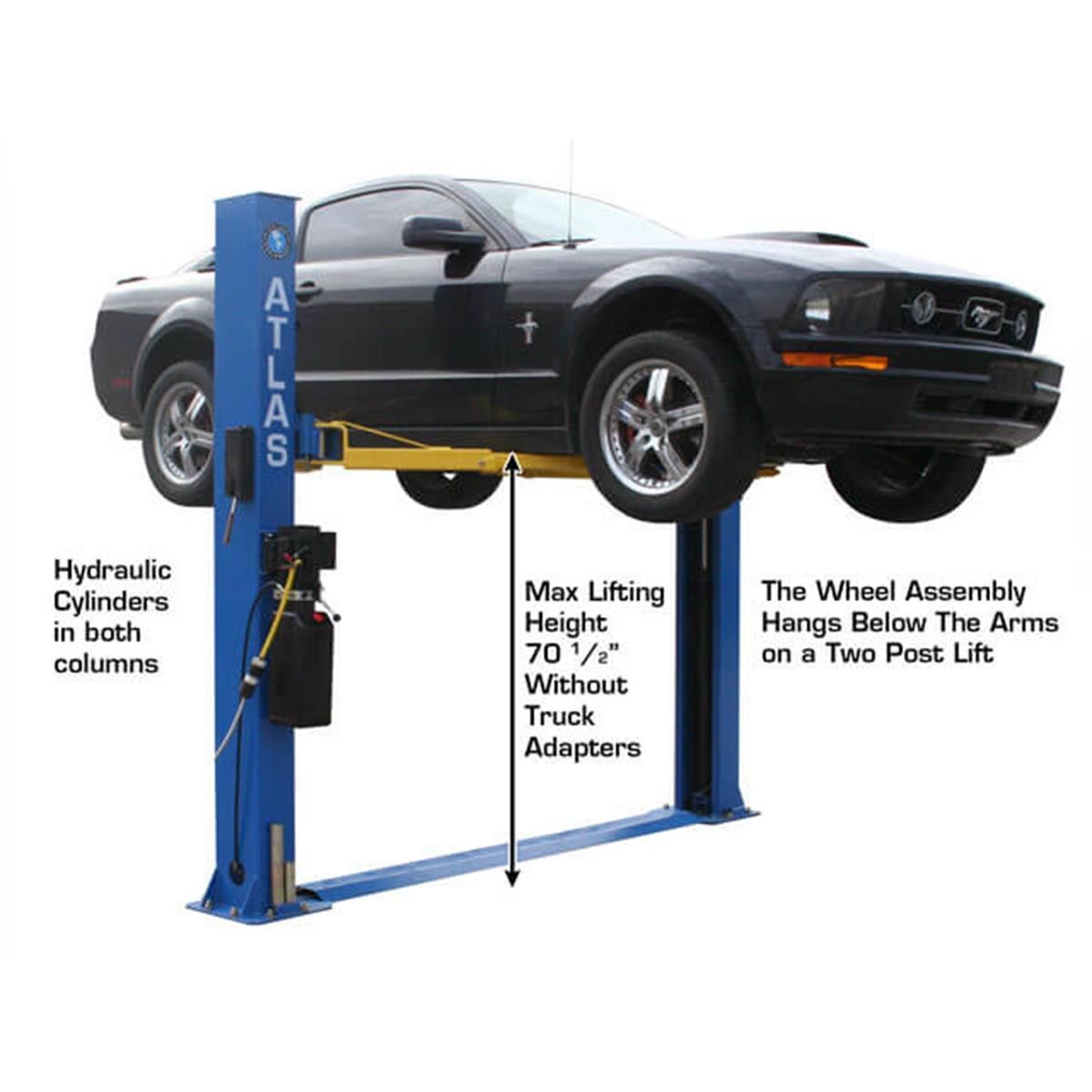

• Dual Hydraulic Chain-Drive Cylinders: Constructed to ANSI standards for smooth and reliable lifting performance.

• Powder Coat Finish: Provides a durable and corrosion-resistant surface for long-lasting use.

• Included Accessories: Comes with a 12-piece truck adapter set and mounting hardware.

Installation Requirements

• Ceiling Height: Minimum of 9 feet 3 inches to accommodate the lift's overall height.

• Concrete Specifications: Minimum 4" thick concrete with a strength of 3,000 psi.

• Electrical: 220V single-phase power supply with a 30A breaker.

Warranty

• Structural Components: 5-year limited warranty.

• Hydraulic Components: 2-year limited warranty (parts only)

Important Details

• Vehicle Compatibility: Suitable for a wide range of vehicles, including compact cars, sedans, SUVs, and light trucks.

• Safety Precautions: Operators should adhere to the safety guidelines outlined in the user manual to prevent accidents and ensure proper use.

• Maintenance: Regular inspections and maintenance are recommended to keep the equipment in optimal working condition and extend its lifespan.

• Environmental Conditions: Operate the lift in a clean, dry, and well-ventilated environment to ensure safety and efficiency.
