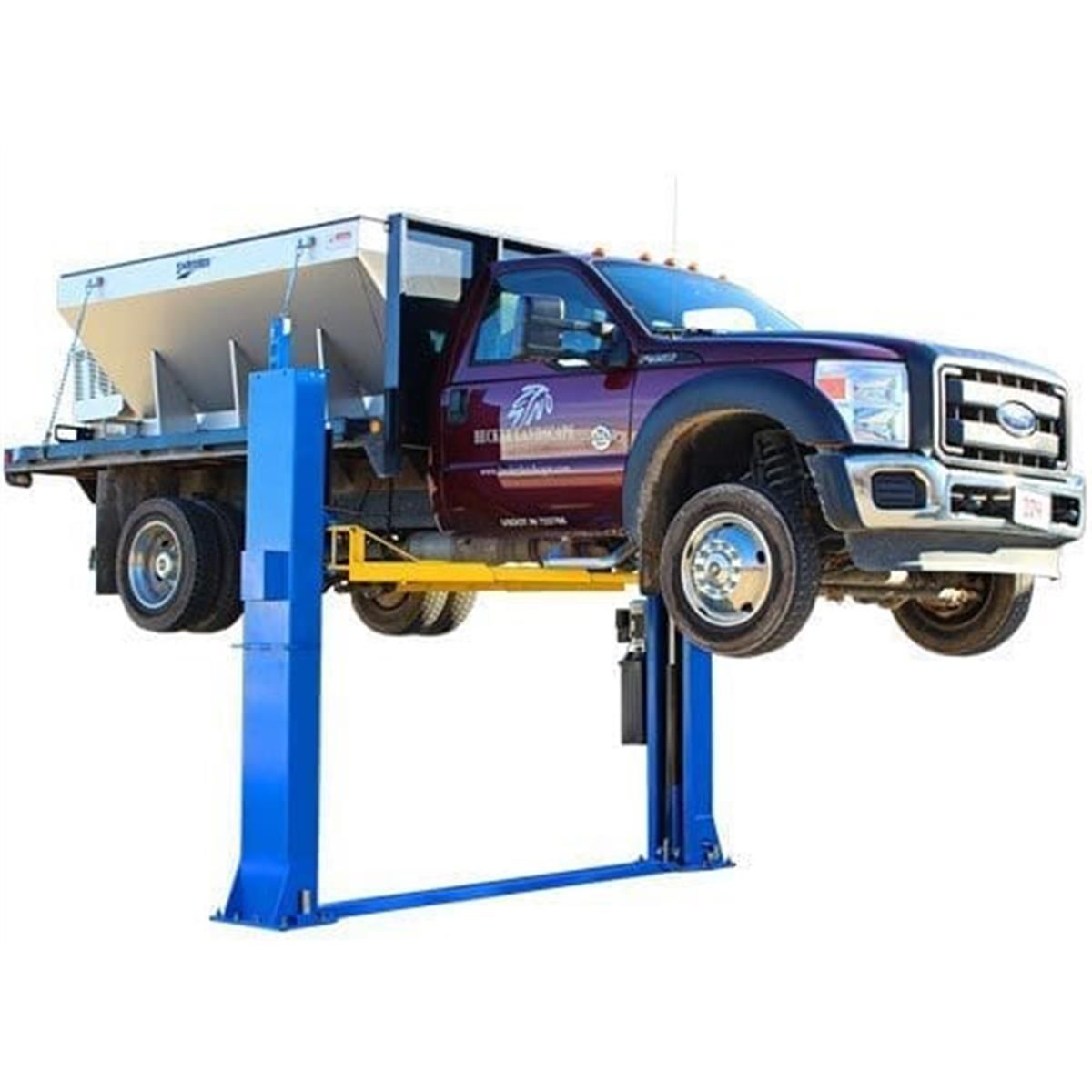

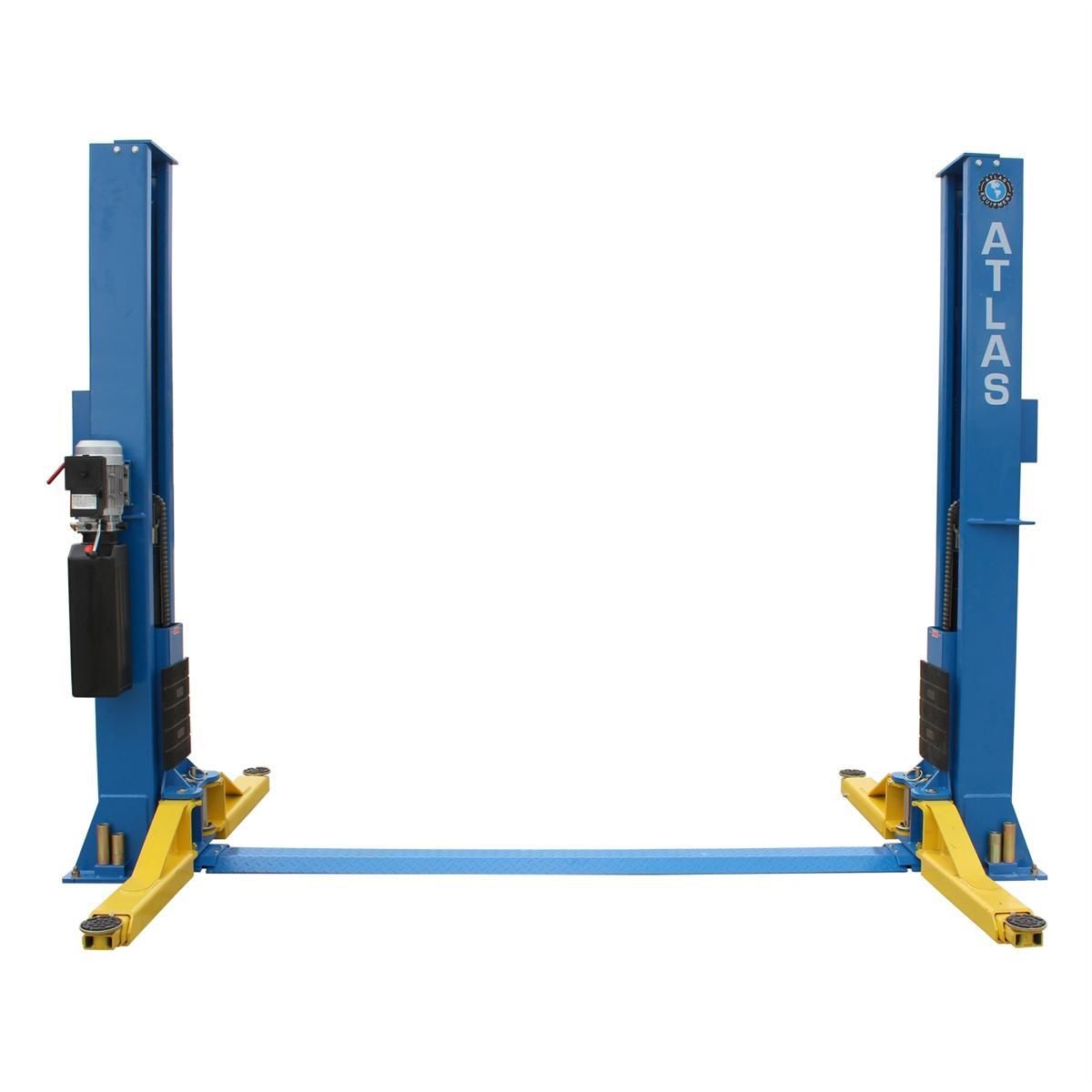

Atlas BP12000X 12,000lb 2 Post Vehicle Lift

Overview:

The Atlas® BP12000X is a heavy-duty, commercial-grade two-post baseplate lift with a 12,000 lb. lifting capacity. Designed for shops with ceiling height limitations, its robust construction and adjustable width settings make it ideal for lifting a wide range of vehicles, from compact cars to large trucks and trailers. The BP12000X combines strength, versatility, and safety features to meet the demands of professional automotive service environments.

Specifications:

• Lifting Capacity: 12,000 lbs

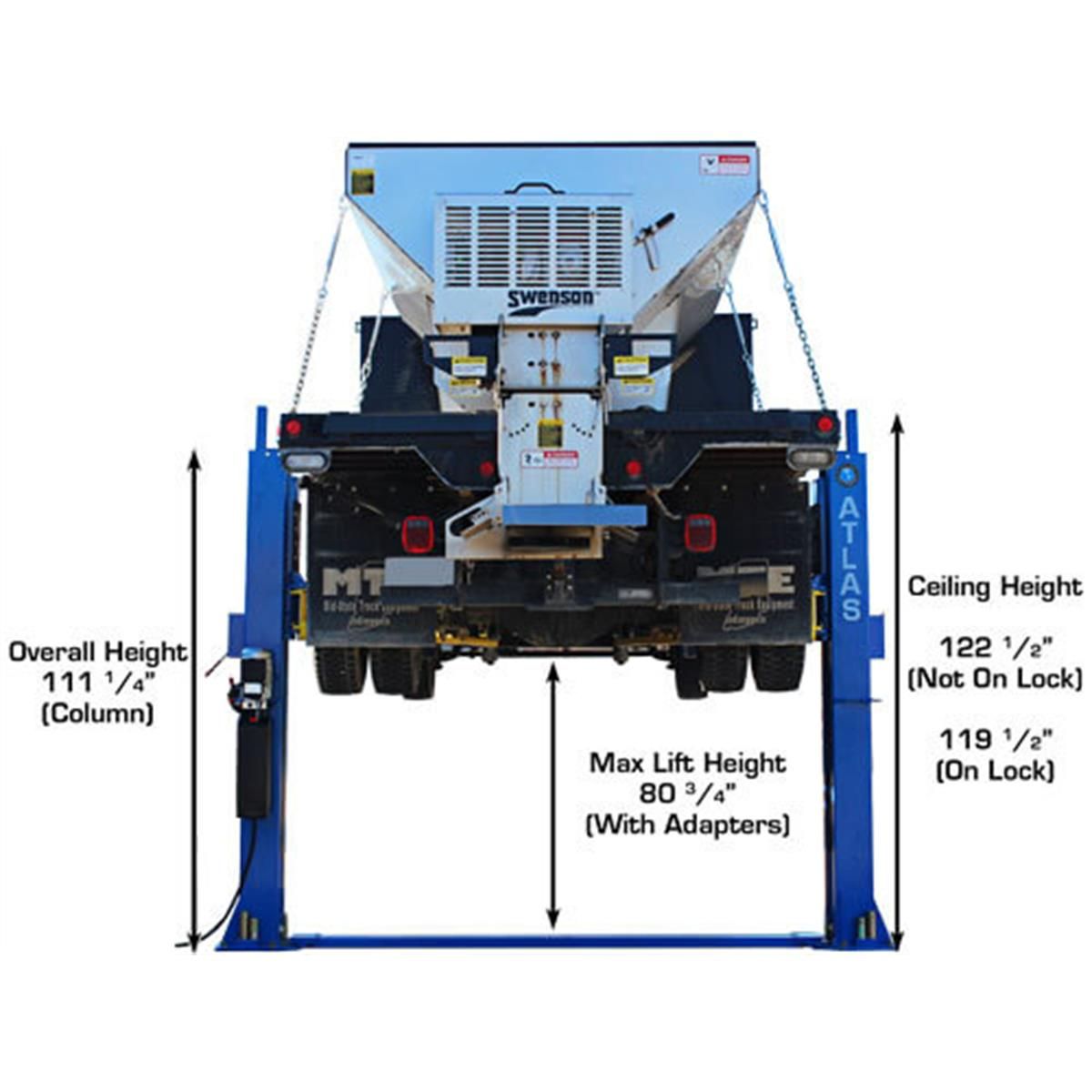

• Overall Height: 122 1/2" (10' 2 1/2")

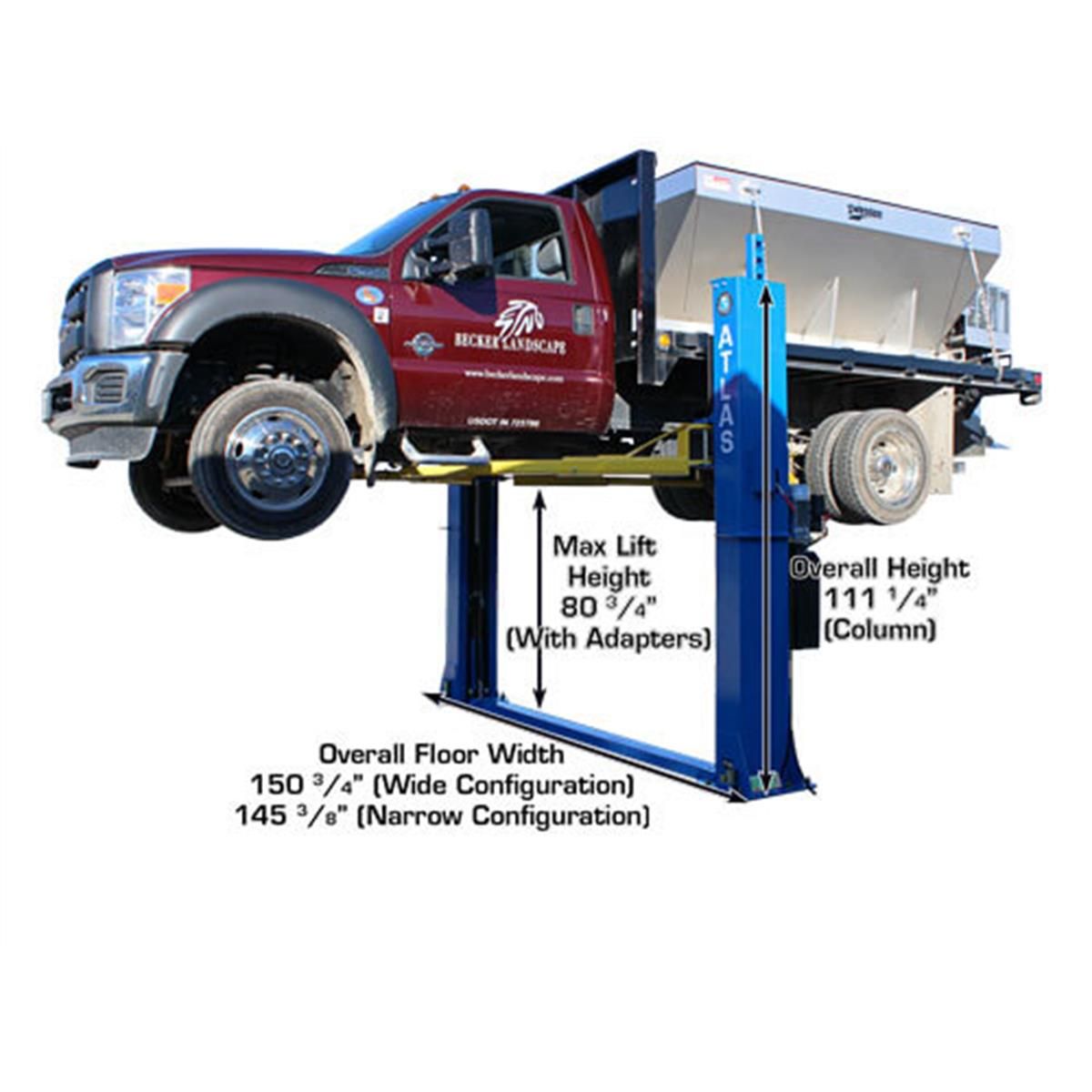

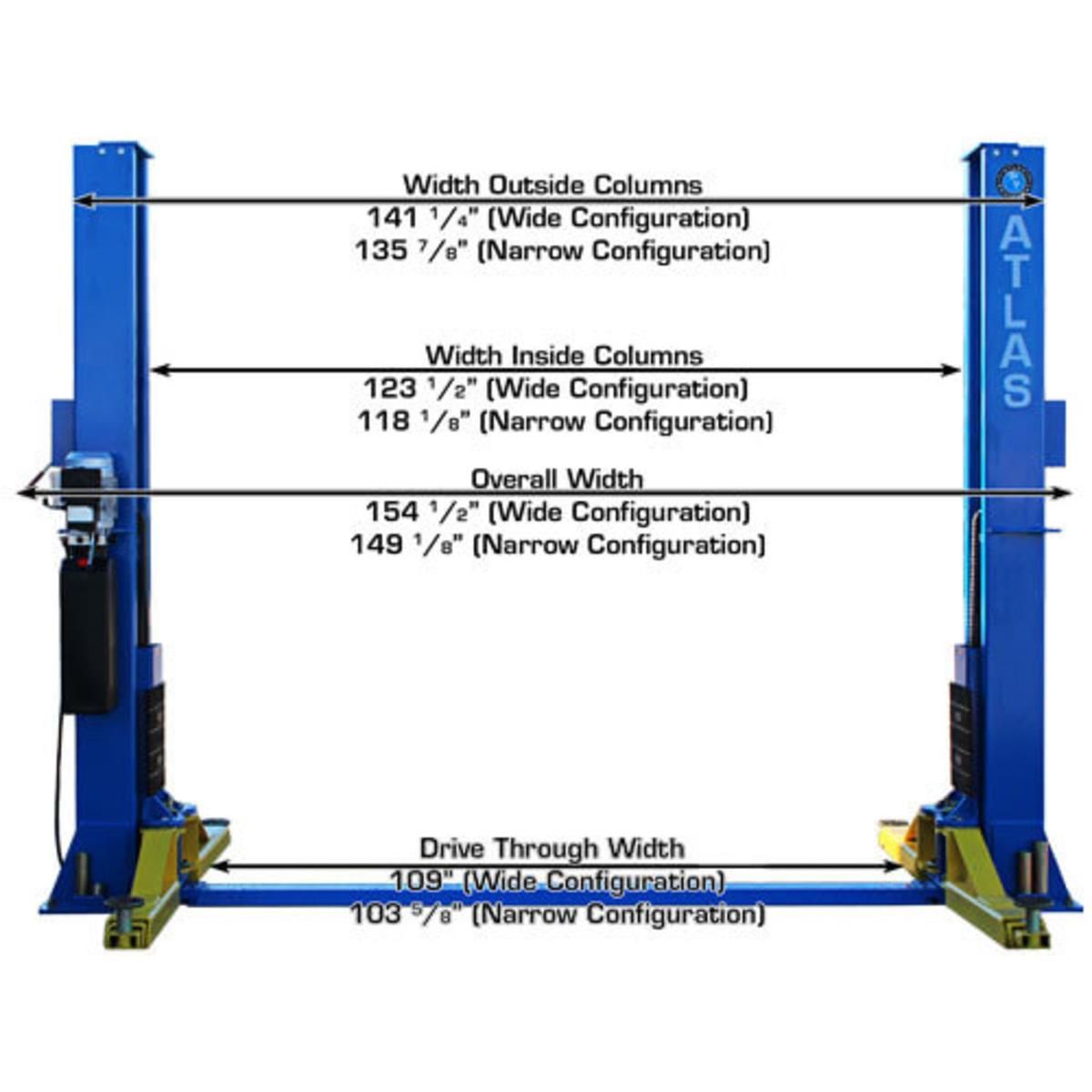

• Overall Floor Width: 149 3/8" (12' 5 3/8") or 154 1/2" (12' 10 1/2")

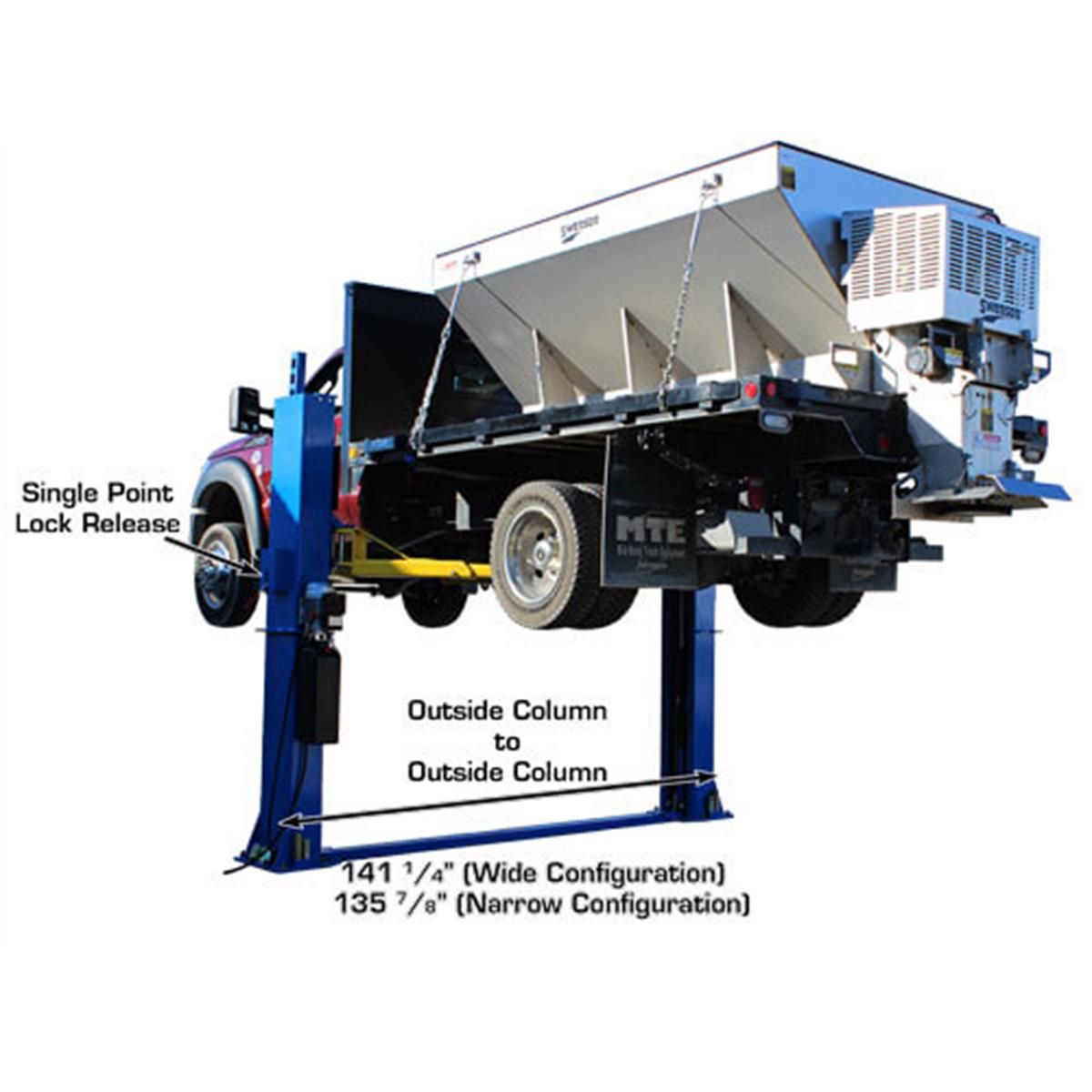

• Outside Column to Outside Column: 135 7/8" (11' 3 7/8") or 141 1/4" (11' 9 1/4")

• Inside Column Width: 118 1/8" (9' 10 1/8") or 123 1/2" (10' 3 1/2")

• Drive-Thru Clearance: 103 5/8" (8' 7 5/8") or 109" (9' 1")

• Maximum Lift Height (Without Adapters): 77 1/2"

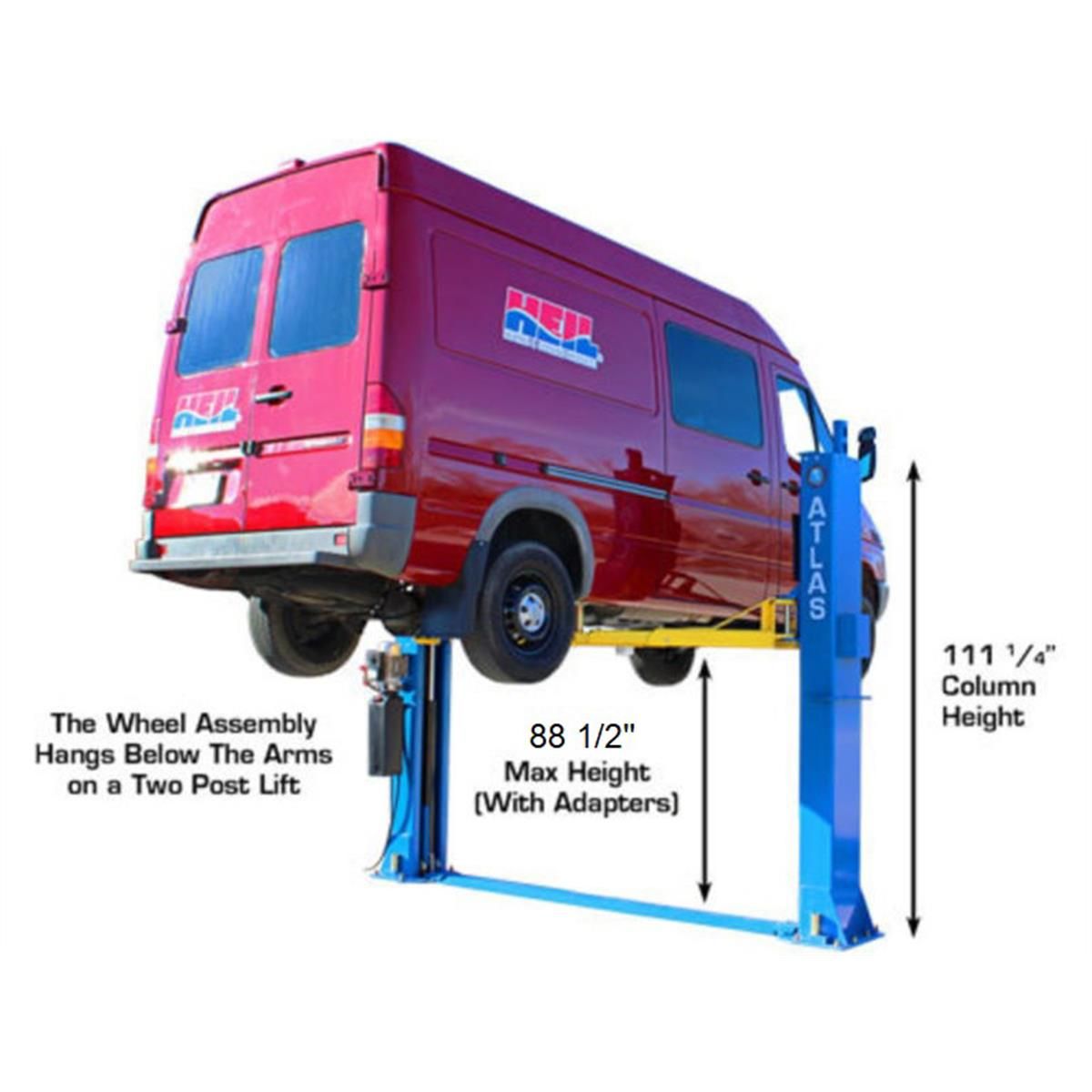

• Maximum Lift Height (With Adapters): 88 1/2"

• Minimum Arm Height: 4"

• Column Size: 8 3/4" x 14"

• Column Steel Thickness: 6 mm

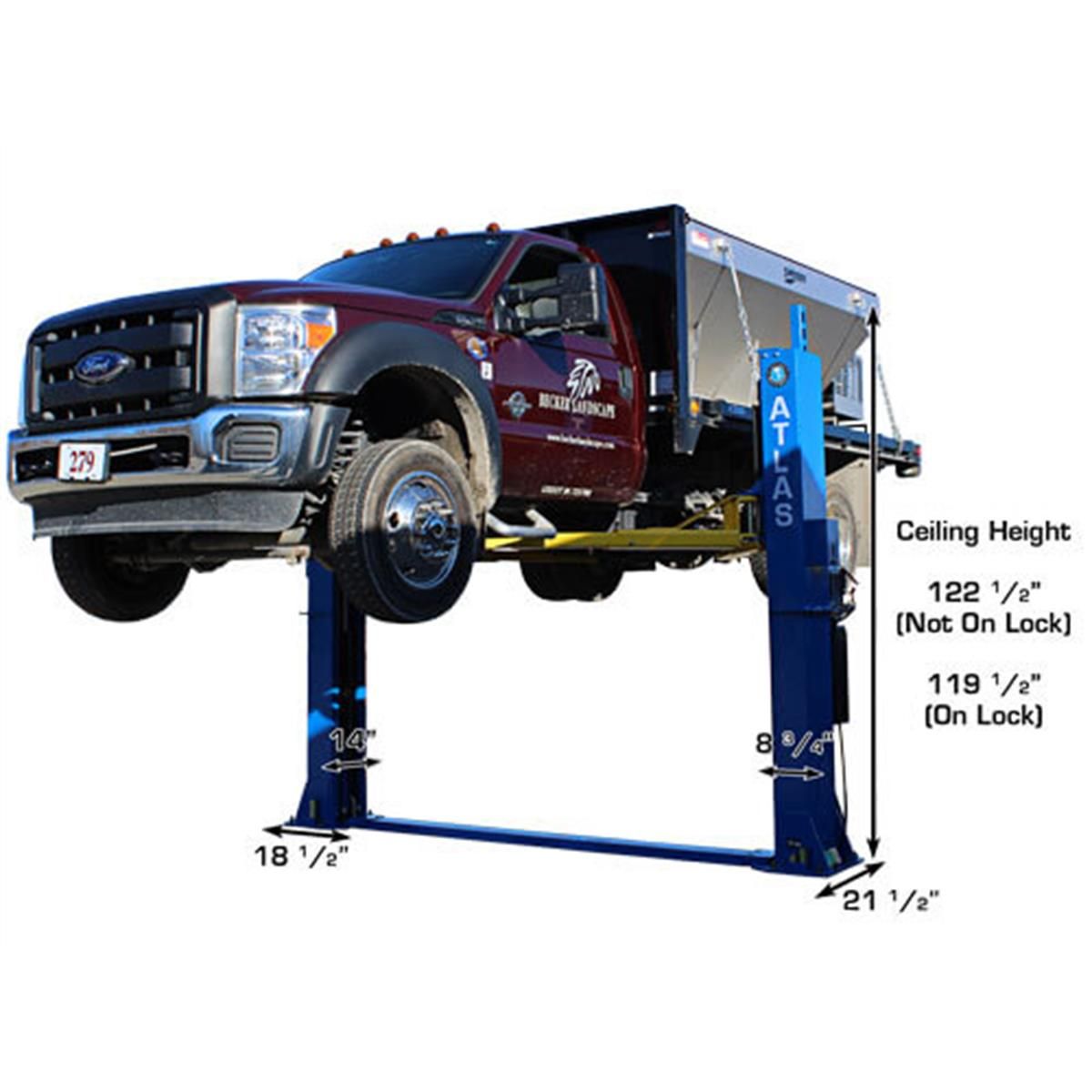

• Base Plate Dimensions: 18 1/2" x 21 1/2"

• Motor/Electrical Requirement: 220V single-phase, 30A breaker recommended

• Oil Requirement: 3-5 gallons AW32/AW46 (not included)

• Shipping Weight: Approximately 2,130 lbs

• Adapter Heights: 4 each of 2", 3", and 6"

• Arm Hole/Adapter Peg Size: 1.5"

• Concrete Requirements: Minimum 6" thick concrete with a strength of 3,000 psi

Features:

• Baseplate Design: Ideal for garages with low ceilings, allowing installation in spaces with ceilings as low as 10' 2 1/2".

• Adjustable Width: Accommodates wider trucks or trailers and facilitates driving between the lift columns.

• 3-Stage Symmetric Arms: Provides flexibility in vehicle positioning, accommodating a variety of vehicle sizes and configurations.

• Automatic Arm Restraints: Ensures arms remain securely in place when the lift is raised.

• Single-Point Lock Release: Allows both columns to be disengaged simultaneously for efficient operation.

• Dual Hydraulic Chain-Over Cylinders: Constructed to ANSI standards for smooth and reliable lifting performance.

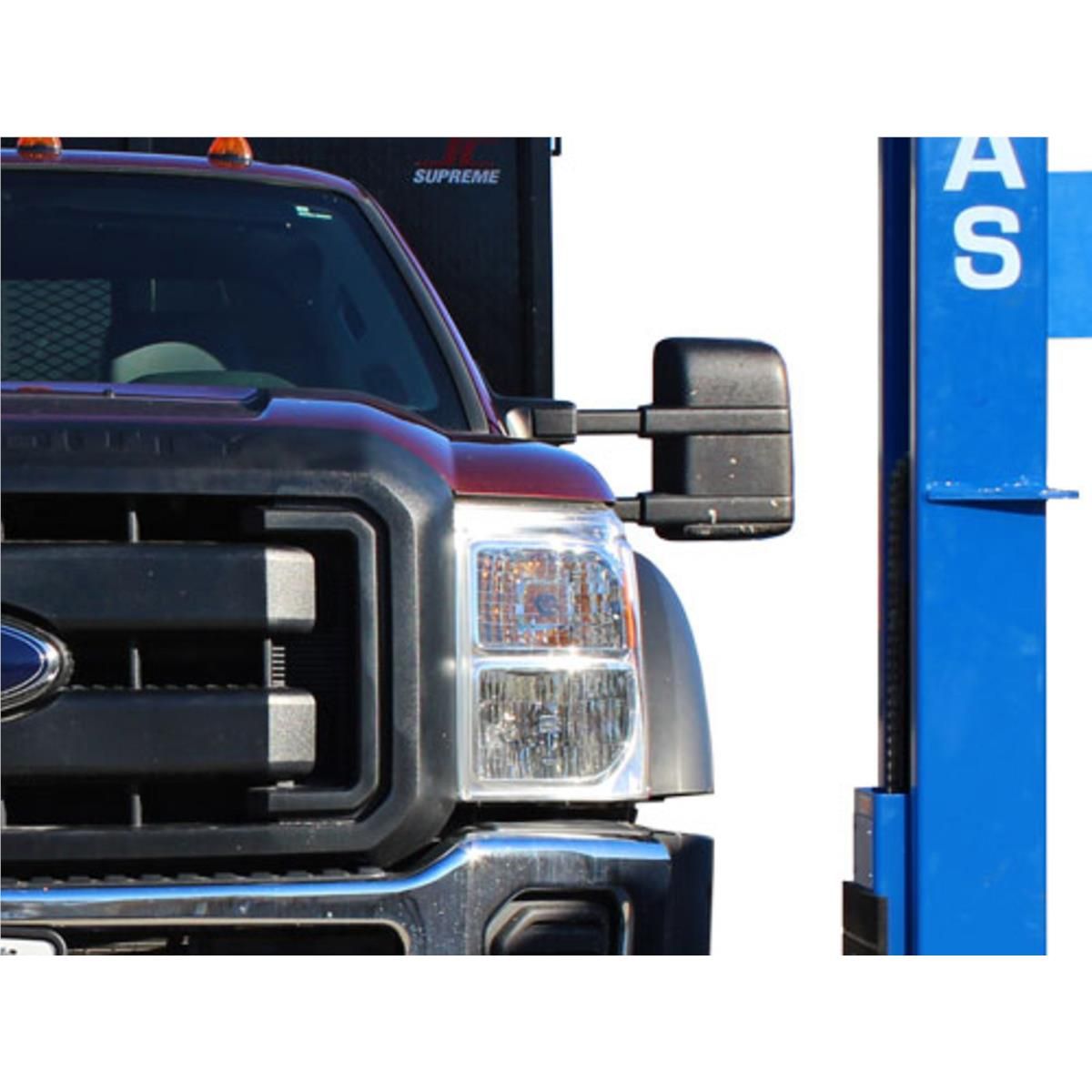

• Rubber Guards on Carriages: Protects vehicle doors from damage during loading and unloading.

• Powder Coat Finish: Provides a durable and corrosion-resistant surface for long-lasting use.

• Included Accessories: Comes with a free 12-piece truck adapter set and mounting hardware.

Installation Requirements:

• Ceiling Height: Minimum of 10' 3" to accommodate the lift's overall height.

• Concrete Specifications: Minimum 6" thick concrete with a strength of 3,000 psi.

• Electrical: 220V single-phase power supply with a 30A breaker.

Warranty:

• Structural Components: 5-year limited warranty.

• Hydraulic Components: 2-year limited warranty (parts only).

Important Details:

• Vehicle Compatibility: Suitable for a wide range of vehicles, including compact cars, sedans, SUVs, and light trucks.

• Safety Precautions: Operators should adhere to the safety guidelines outlined in the user manual to prevent accidents and ensure proper use.

• Maintenance: Regular inspections and maintenance are recommended to keep the equipment in optimal working condition and extend its lifespan.

• Environmental Conditions: Operate the lift in a clean, dry, and well-ventilated environment to ensure safety and efficiency.
