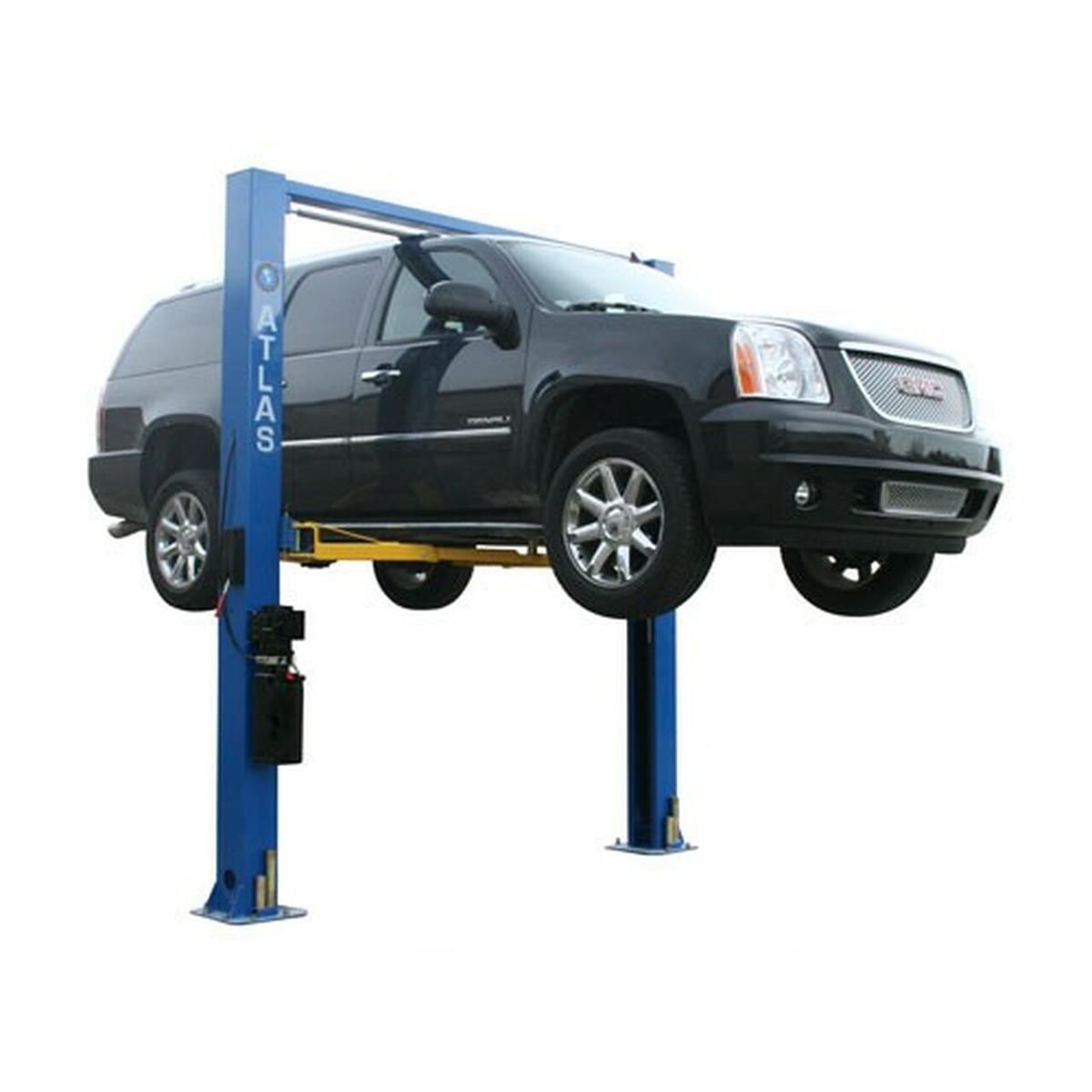

Atlas 9OHSC 9,000lb 2 Post Vehicle Lift

Overview:

The Atlas 9OHSC-SS is a 9,000 lb. capacity overhead two-post lift designed for both commercial repair facilities and home garages. Its robust construction and versatile features make it suitable for lifting a wide range of vehicles, from compact cars to larger SUVs and light trucks.

Specifications:

• Lifting Capacity: 9,000 lbs.

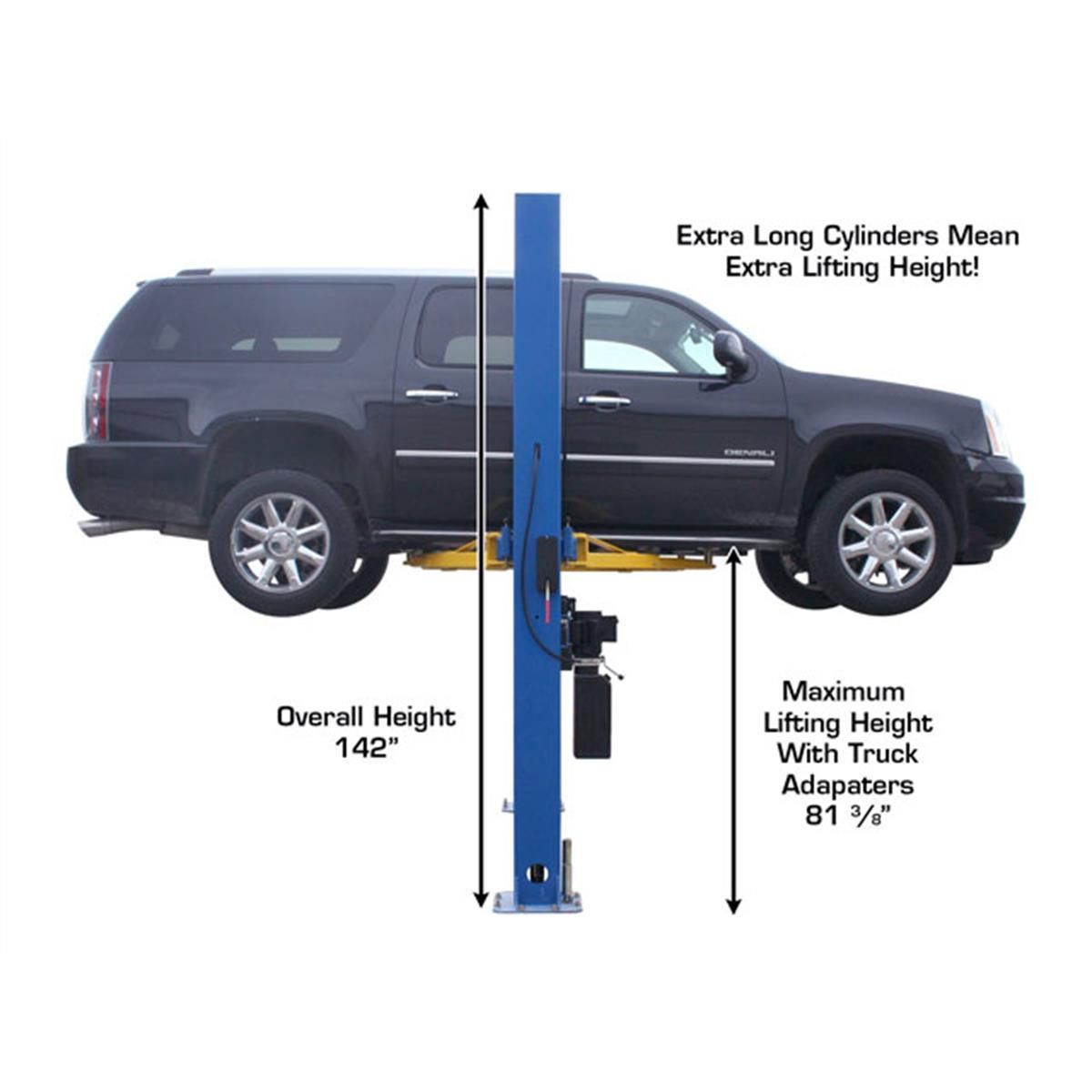

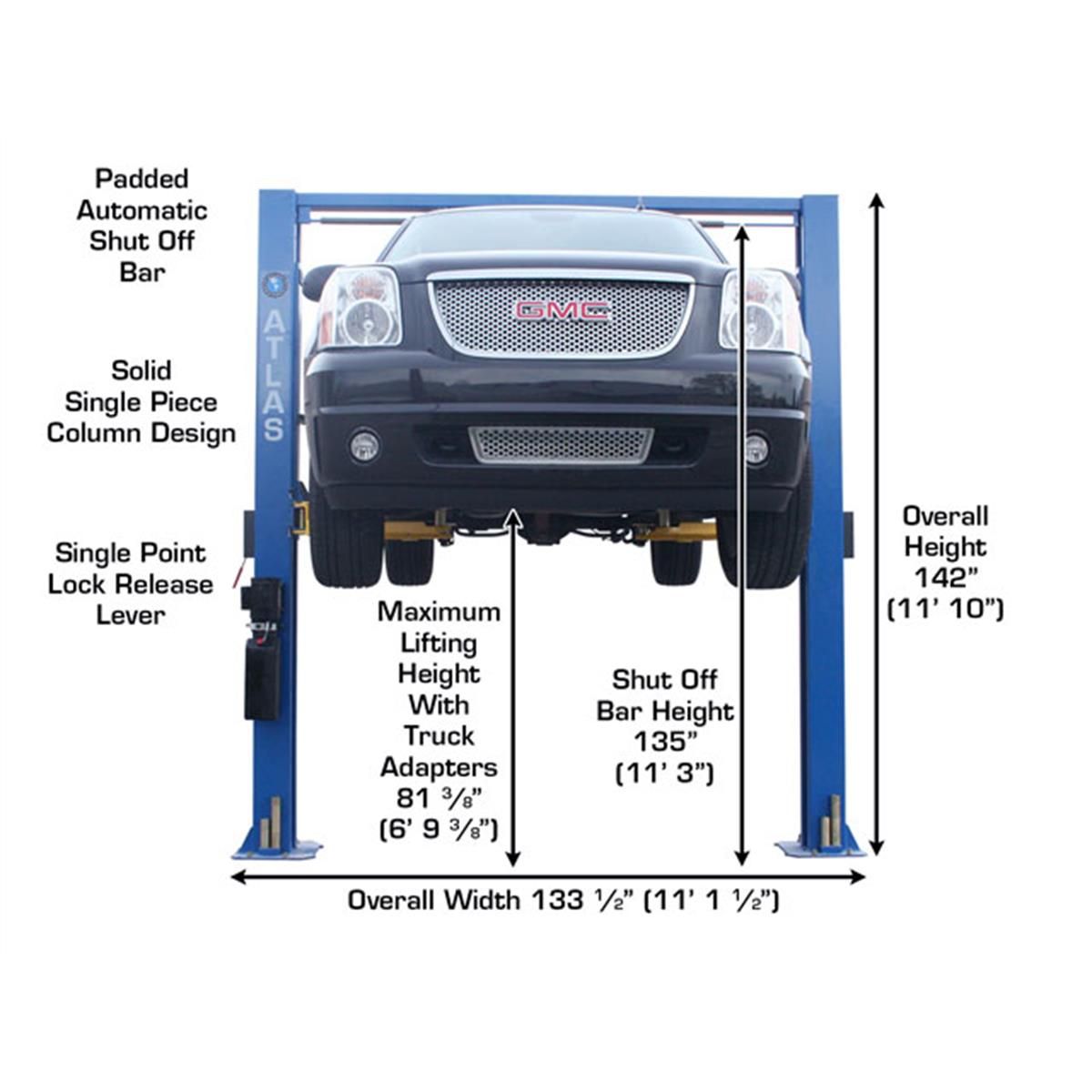

• Overall Height: 142" (11' 10")

• Padded Bar Height: 135" (11' 3")

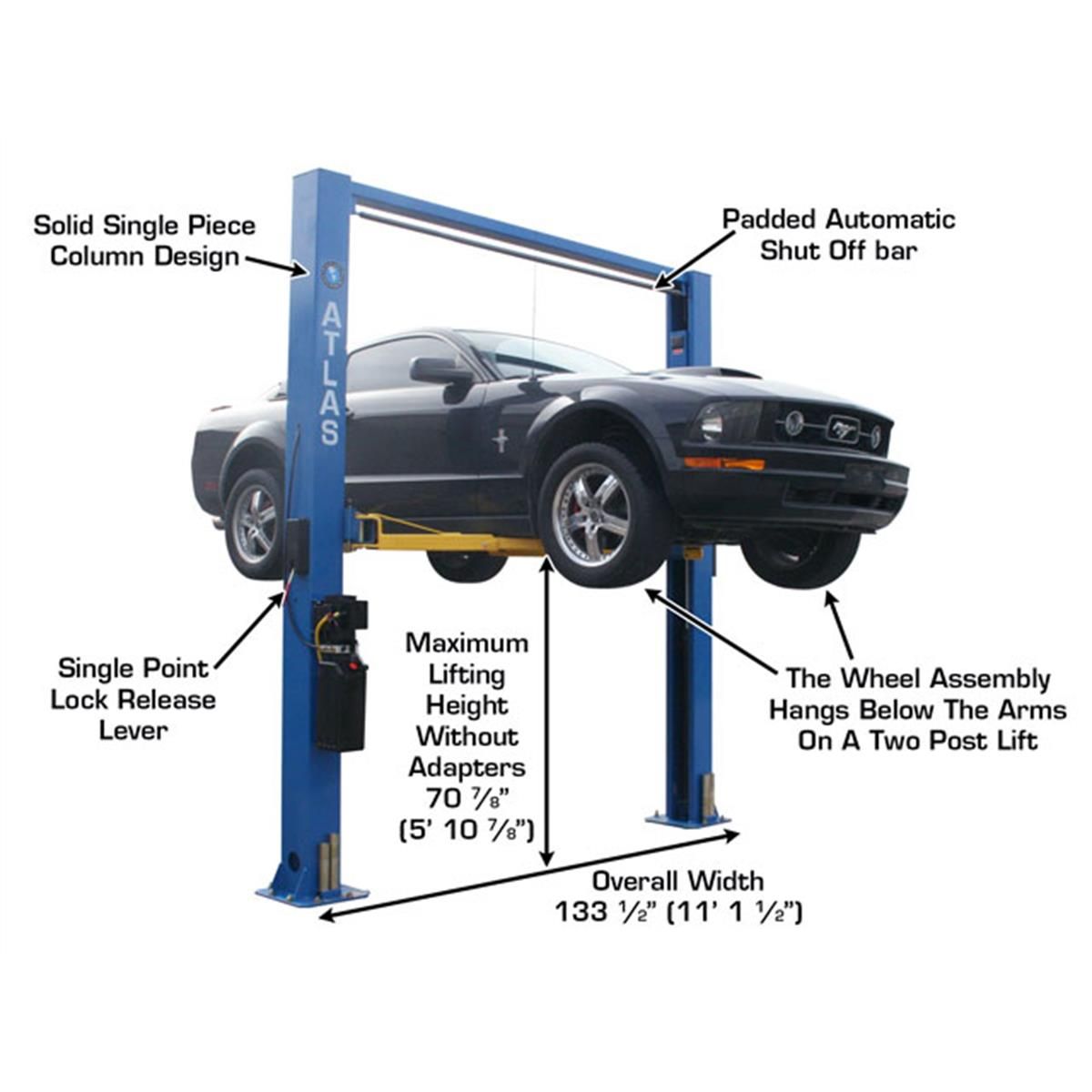

• Overall Width: 133.5" (11' 1.5")

• Outside Column to Outside Column: 125.5" (10' 5.5")

• Maximum Lift Height (With Adapters): 87.75" (7' 3")

• Maximum Lift Height (Without Adapters): 76.75" (6' 4.75")

• Minimum Arm Height: 4"

• Inside Column Width: 109.5" (9' 1.5")

• Drive-Thru Clearance: 100.5" (8' 4.5")

• Column Size: 8" x 9.375"

• Column Steel Thickness: 5mm

• Carriage Steel Thickness: 5mm

• Arm Steel Thickness: 6mm

• Carriage Height: 57.5"

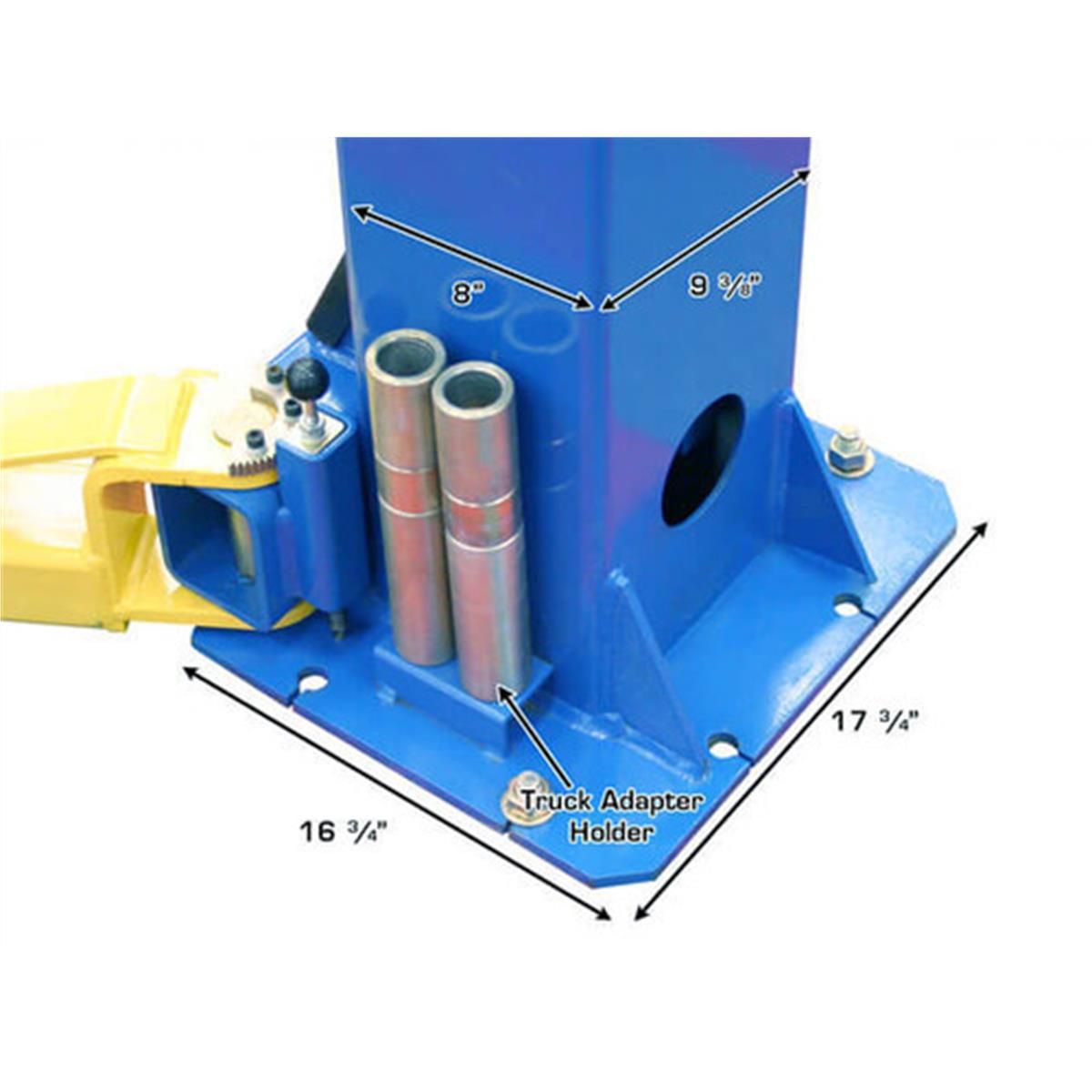

• Base Plate Dimensions: 16.75" x 17.75"

• Cable Diameter: 0.375"

• Motor/Electrical Requirement: 220V single-phase, 30A breaker

• Oil Requirement: 3-5 gallons AW32/AW46

• Shipping Weight: Approximately 1,474 lbs

Features:

• Single-Piece Column Design: Enhances structural integrity and simplifies installation.

• Super-Symmetric Arm Configuration: Features 3-stage front arms and 2-stage rear arms for versatile vehicle positioning.

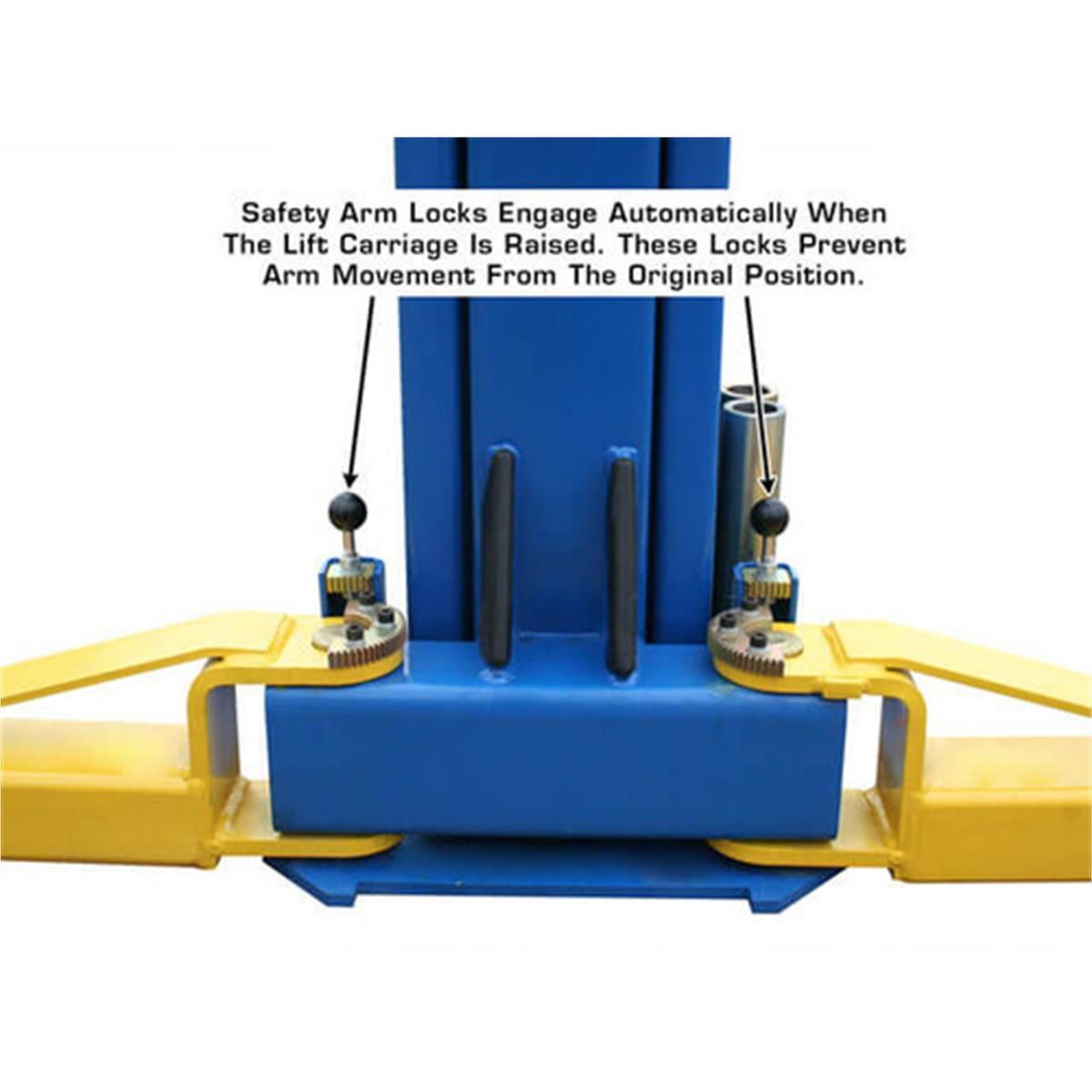

• Automatic Arm Restraints: Ensures arms remain securely in place during lifting operations.

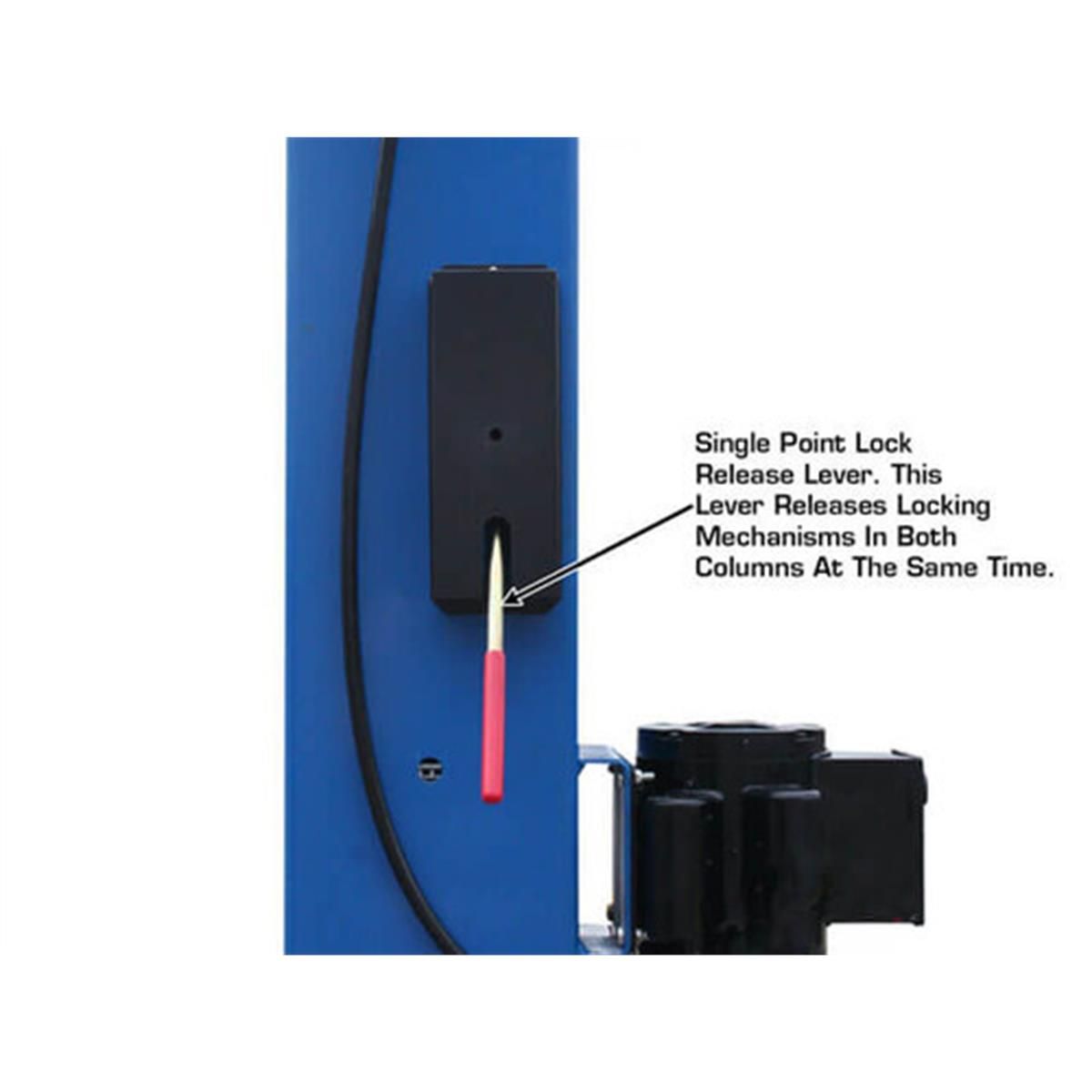

• Single Point Lock Release: Simplifies the lowering process by releasing both column locks simultaneously.

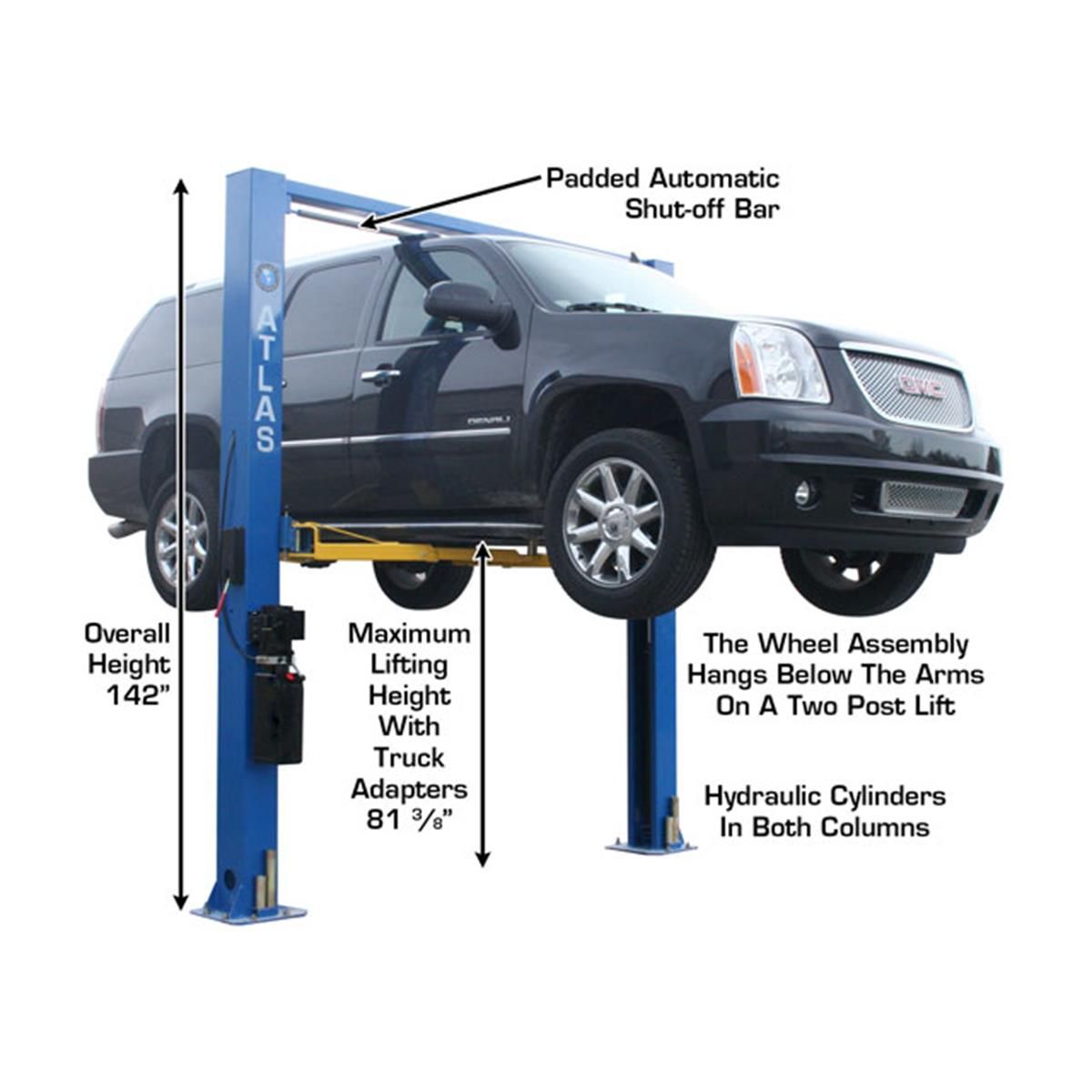

• Overhead Safety Shut-Off Bar: Prevents damage by stopping the lift if a vehicle reaches maximum height.

• Dual Hydraulic Chain-Drive Cylinders: Provides smooth and reliable lifting performance.

• Clear Floor Design: Offers unobstructed floor space for easier vehicle access and movement.

• Included Accessories: Comes with a 12-piece stackable height adapter set (4 each of 6", 3", and 2") and anchor bolts for installation.

Installation Requirements:

• Ceiling Height: Minimum of 12 feet to accommodate the lift's overall height.

• Concrete Specifications: Minimum 4" thick concrete with a strength of 3,000 psi.

• Electrical: 220V single-phase power supply with a 30A breaker.

Warranty:

• Structural Components: 5-year limited warranty.

• Hydraulic Components: 2-year limited warranty (parts only).

• Wear Items: 90-day warranty.

Important Details:

• Vehicle Compatibility: Suitable for a wide range of vehicles, including compact cars, sedans, SUVs, and light trucks. Not recommended for 3/4 ton diesel trucks or larger due to front arm weight limitations.

• Safety Precautions: Operators should adhere to the safety guidelines outlined in the user manual to prevent accidents and ensure proper use.

• Maintenance: Regular inspections and maintenance are recommended to keep the equipment in optimal working condition and extend its lifespan.

• Environmental Conditions: Operate the lift in a clean, dry, and well-ventilated environment to ensure safety and efficiency.
