Atlas 9KOHX 9,000lb 2 Post Vehicle Lift

Atlas 9KOHX 9,000 lb Overhead Two-Post Auto Lift

Overview

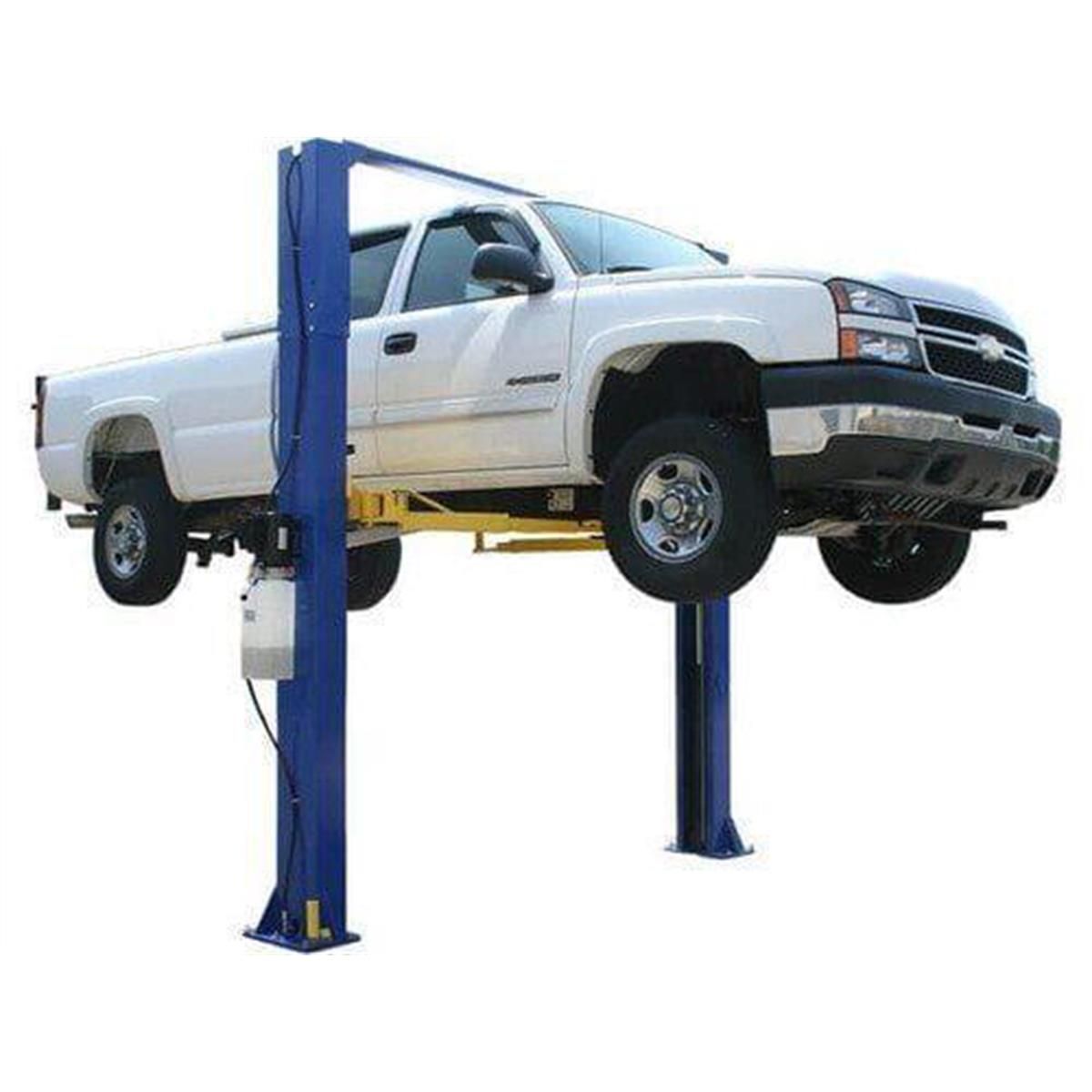

The Atlas 9KOHX is a versatile two-post lift designed for both professional and personal automotive service environments. With a lifting capacity of 9,000 lbs, it accommodates a wide range of vehicles, from compact cars to light-duty trucks. Its overhead, clear-floor design ensures unobstructed workspace, enhancing efficiency and safety.

Specifications

• Lifting Capacity: 9,000 lbs

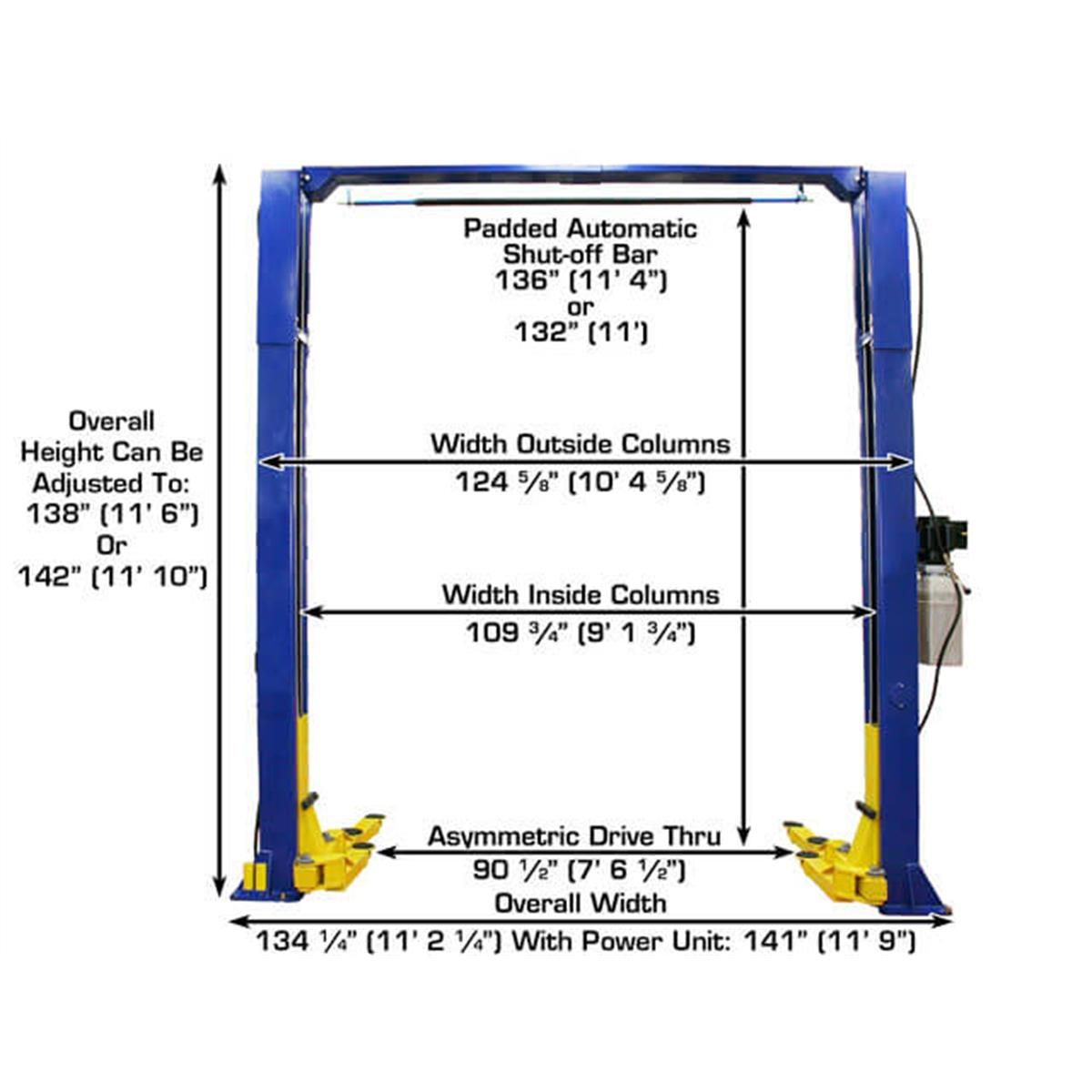

• Overall Height: Adjustable to 138" or 142"

• Overall Width (with Power Unit): 141"

• Overall Width (without Power Unit): 134 1/4"

• Distance Between Columns (Outside): 124 5/8"

• Distance Between Columns (Inside): 110"

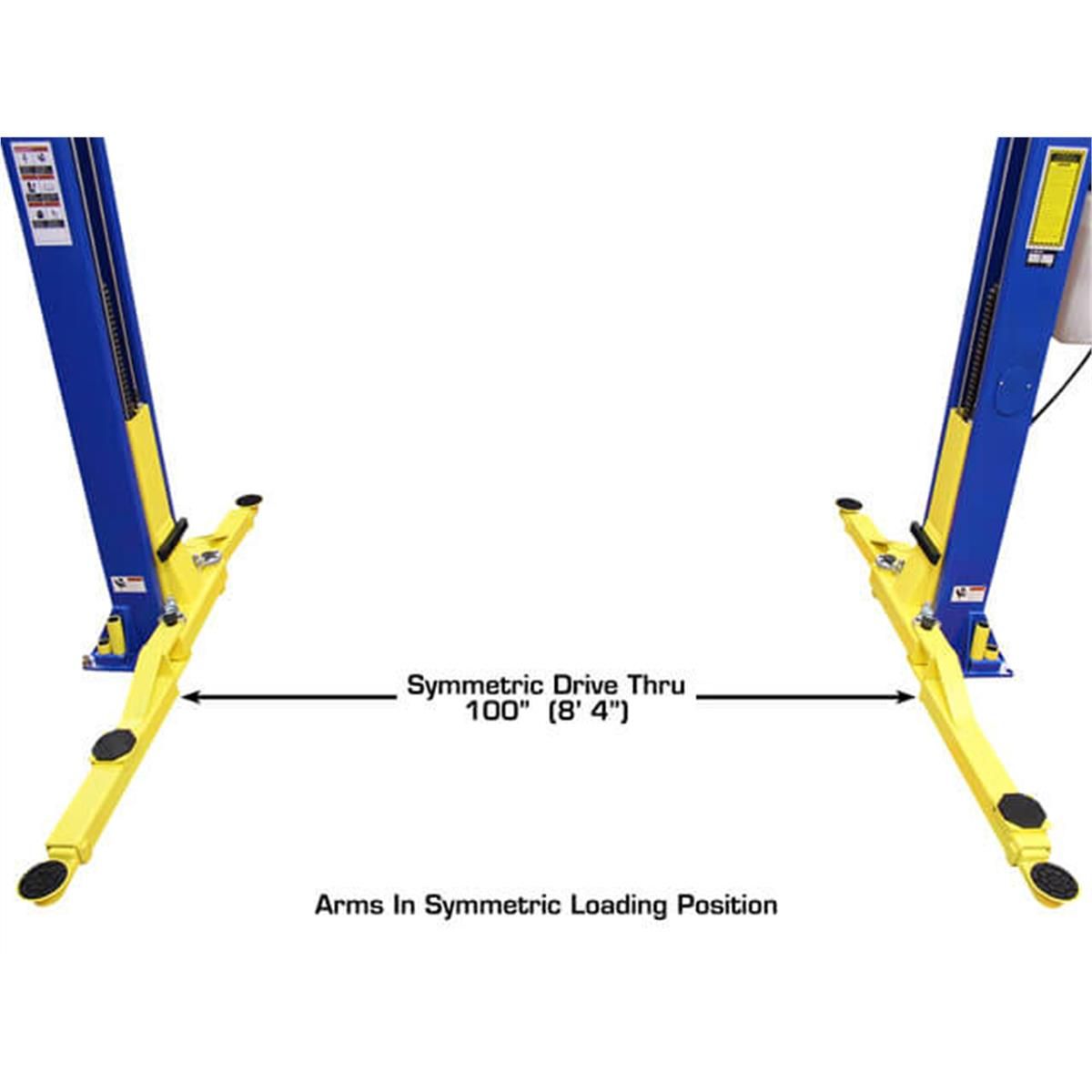

• Drive-Through Width: 100" (Symmetric) / 90 1/2" (Asymmetric)

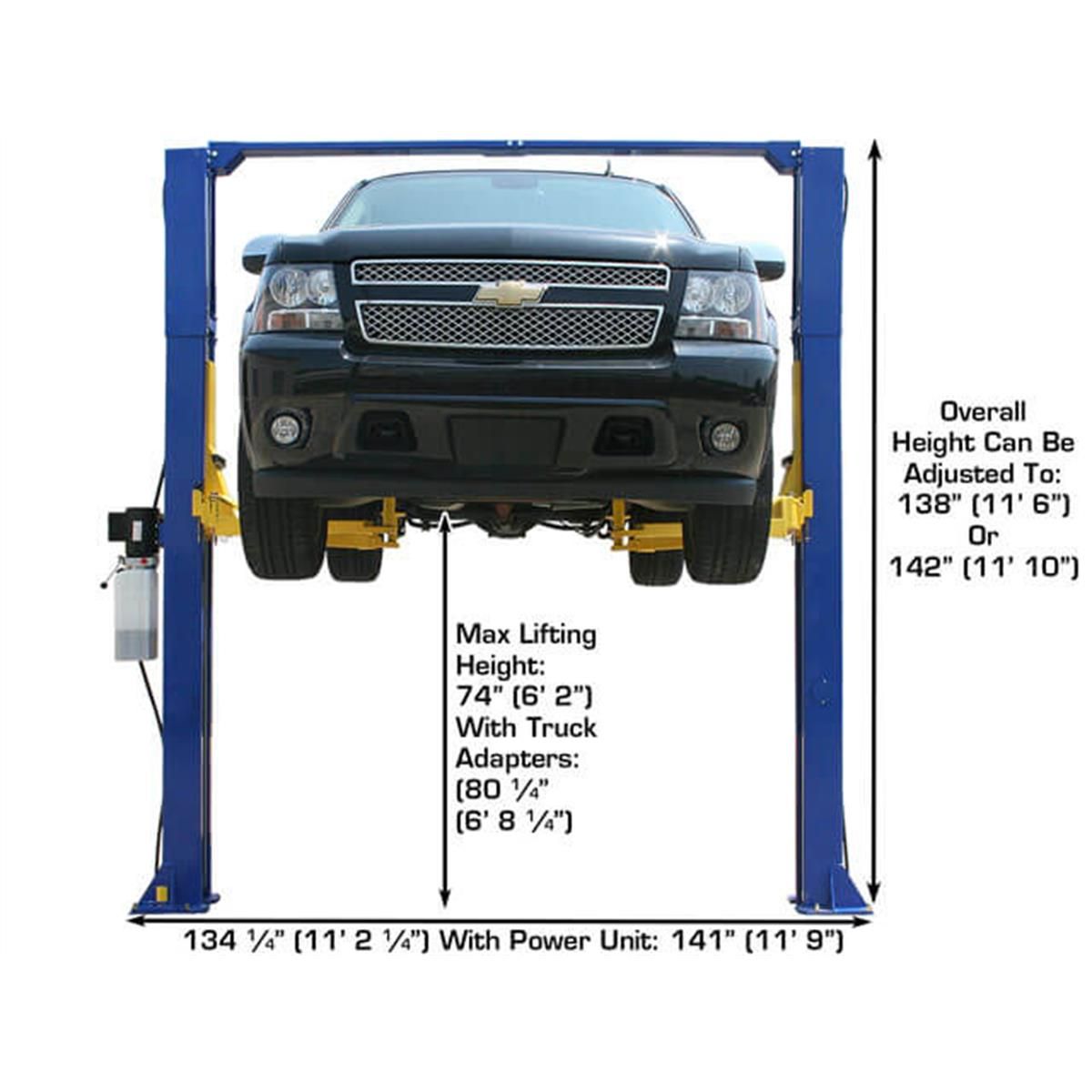

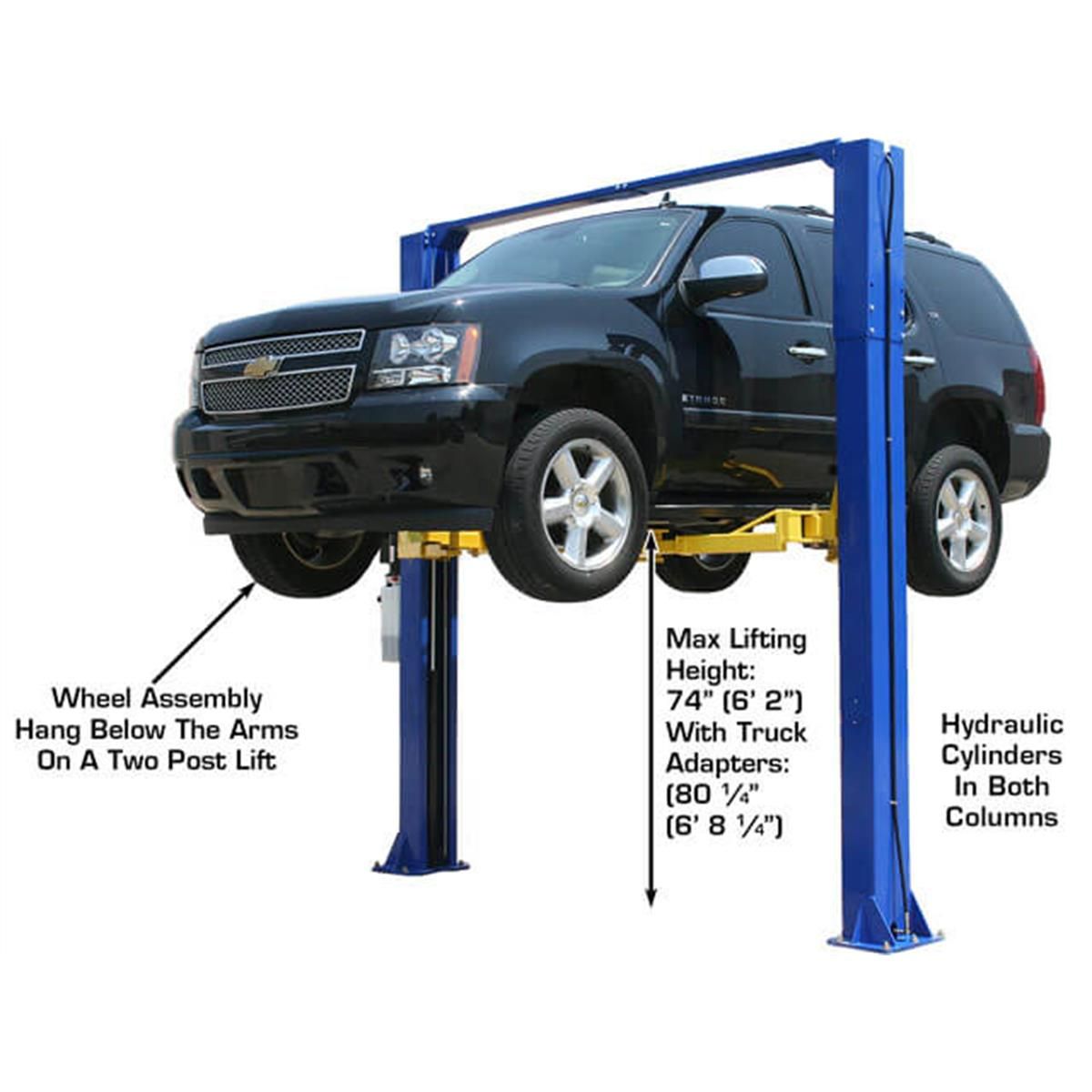

• Maximum Lift Height (without Adapters): 74"

• Maximum Lift Height (with Adapters): 80 1/4"

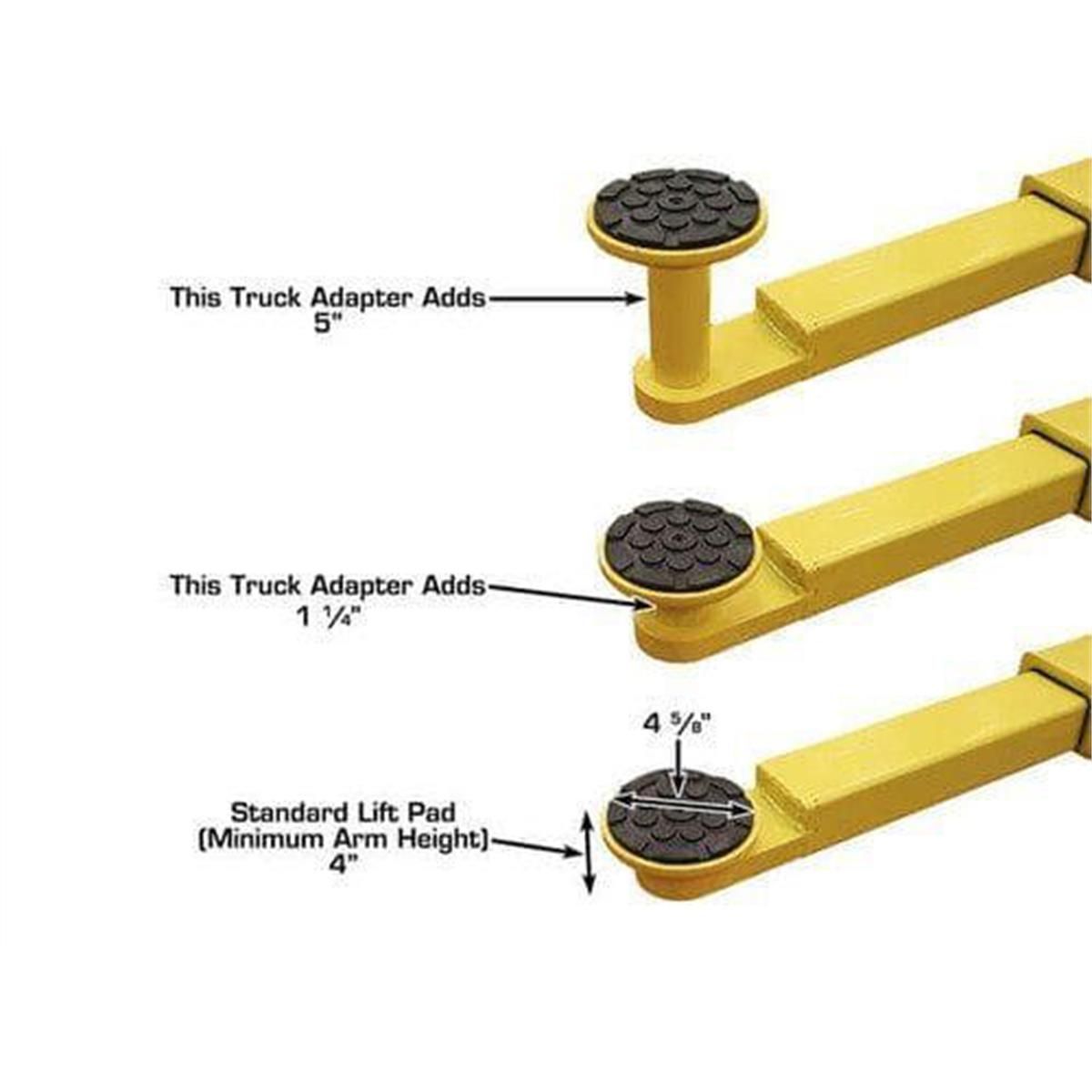

• Minimum Arm Height: 4"

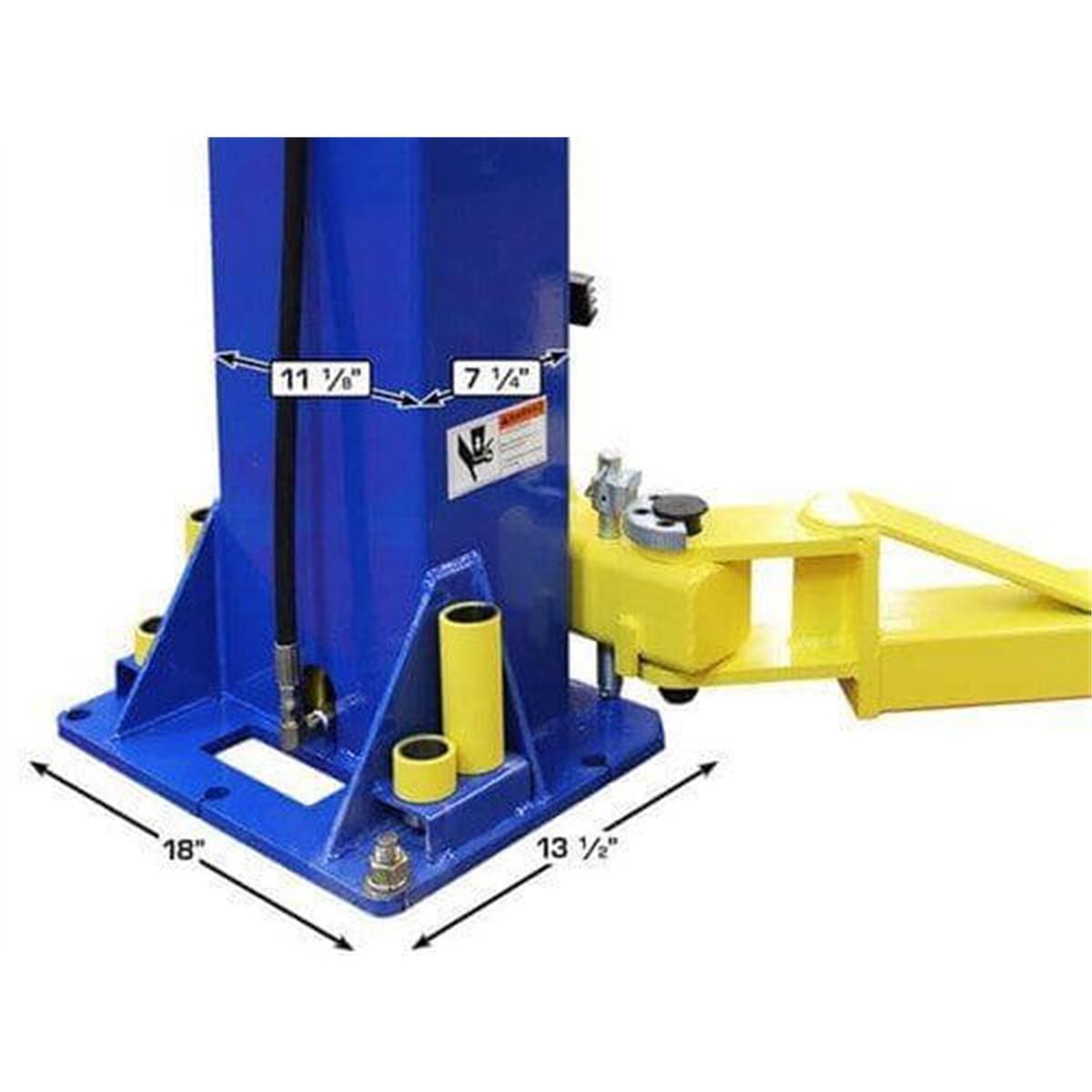

• Column Size: 7 1/4" x 11"

• Base Plate Size: 14 1/4" x 18"

• Column Steel Thickness: 5mm

• Arm Steel Thickness: 6mm

• Motor/Electrical Requirements: 220V single-phase (30 amp breaker recommended)

• Oil Requirement: 3-5 gallons AW32/AW46 (not included)

• Concrete Requirements: Minimum 4" thickness with a strength of 3,000 PSI

• Shipping Weight: Approximately 1,450 lbs

Features

• Overhead, Clear-Floor Design: Provides unobstructed workspace beneath the vehicle, facilitating tool and equipment movement.

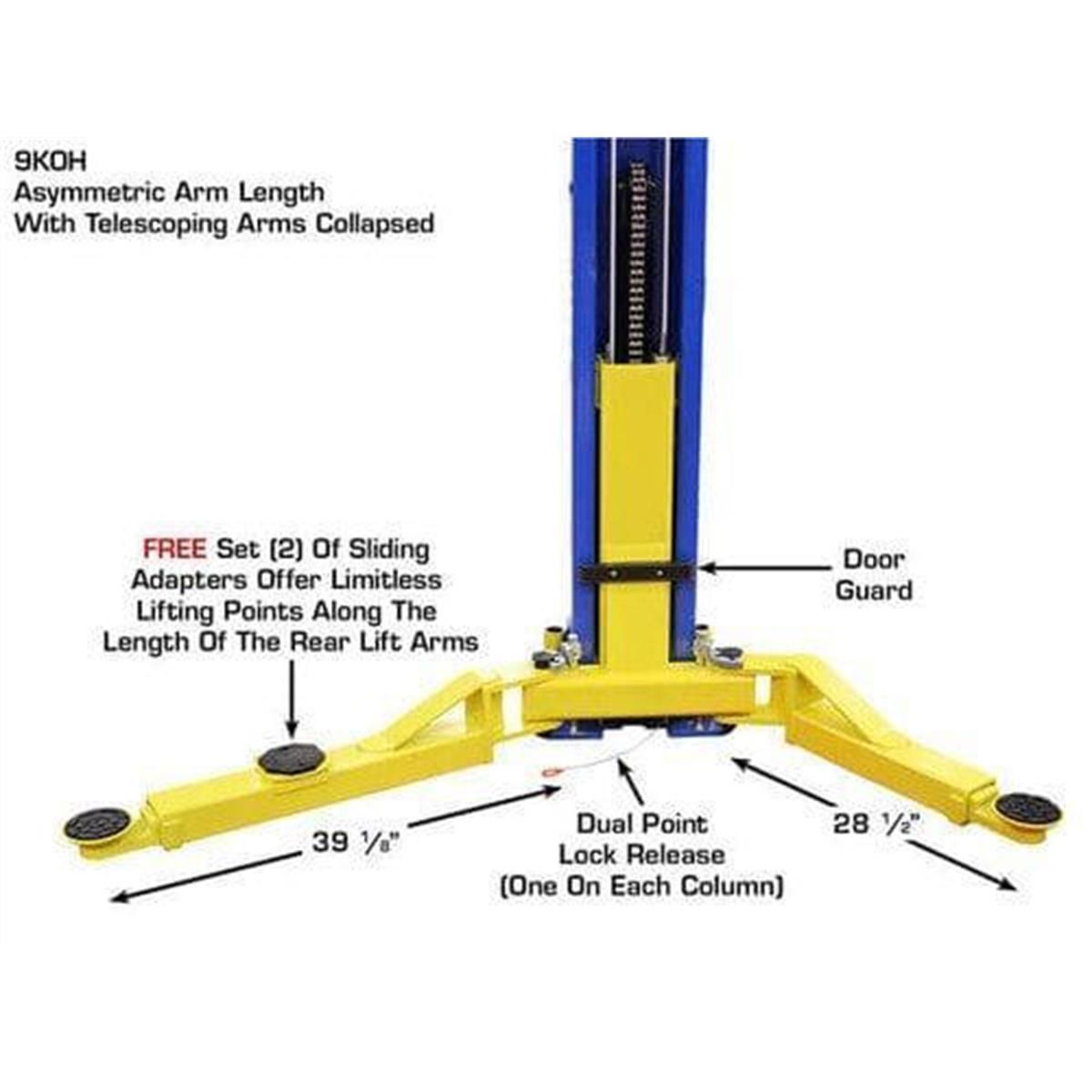

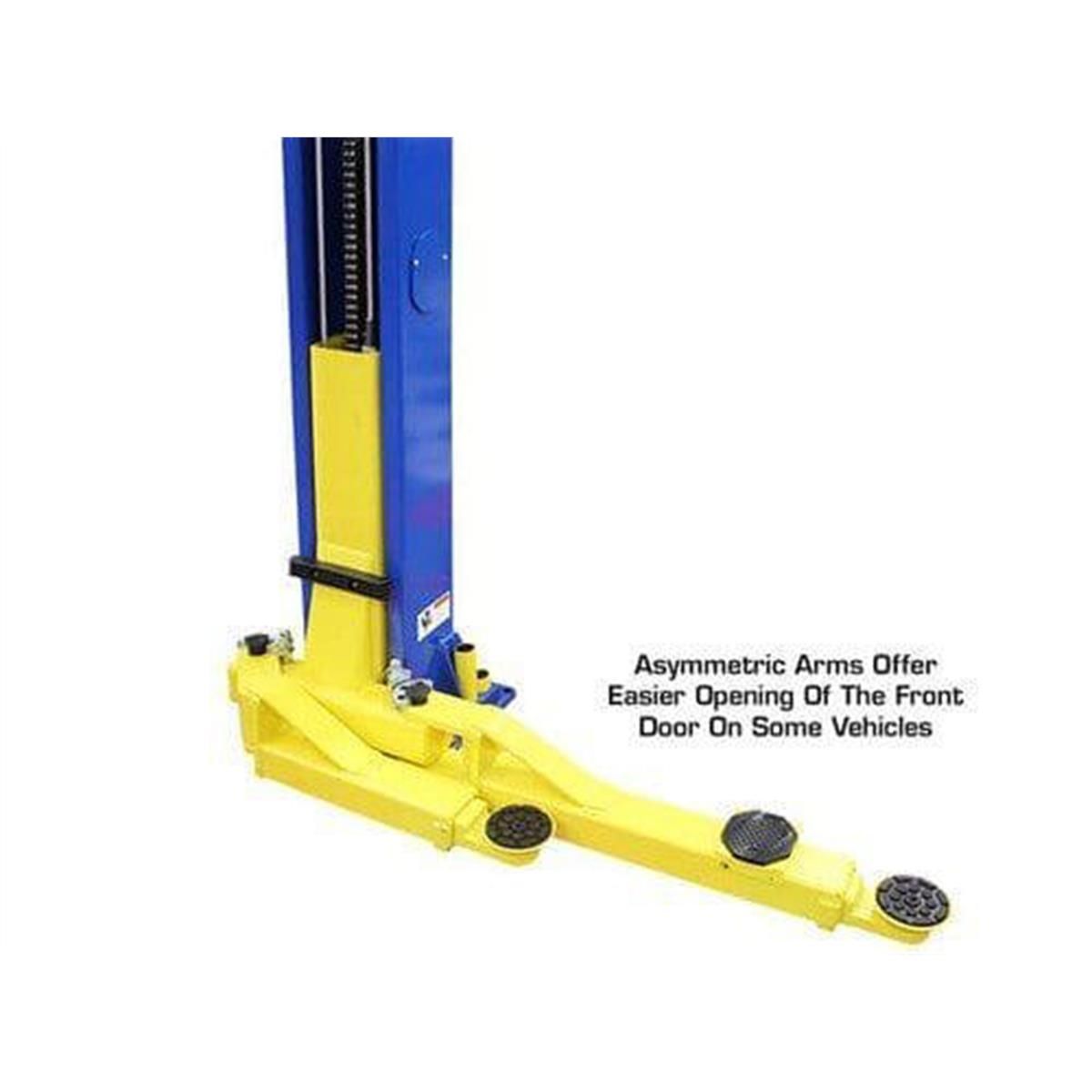

• Asymmetric/Symmetric Arm Configuration: Allows flexibility in lifting various vehicle types and sizes.

• Dual Hydraulic Chain-Drive Cylinders: Ensure smooth and efficient lifting operations.

• Secondary Lock System (SLS): Automatically engages in the event of chain slack or failure, enhancing safety.

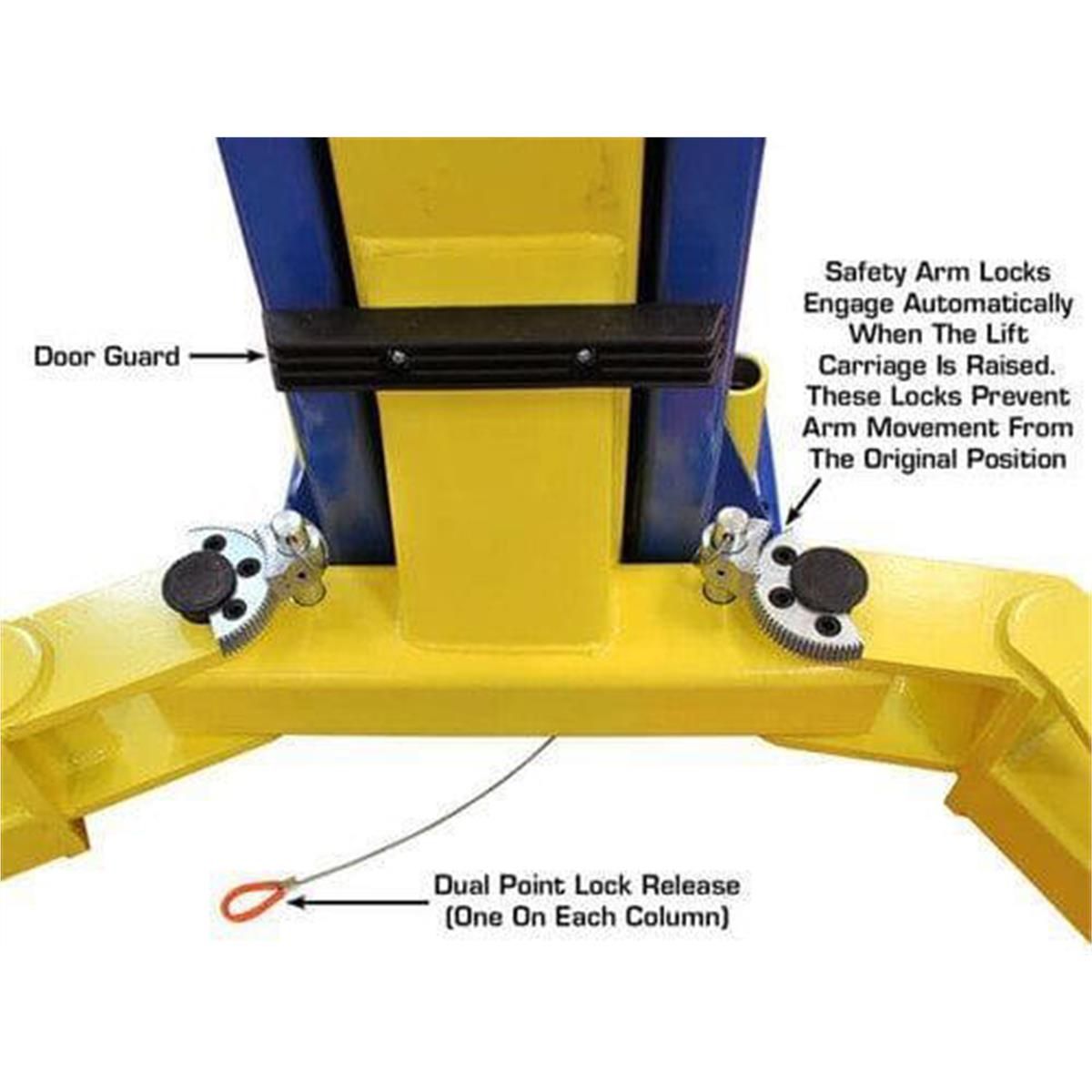

• Automatic Arm Restraints: Secure the vehicle arms automatically during lifting.

• Padded Shut-Off Bar: Prevents vehicle damage by stopping the lift if the vehicle roof contacts the overhead bar.

• Dual-Point Lock Release: Allows for easy and simultaneous unlocking of both columns.

• Powder-Coated Finish: Enhances durability and resistance to corrosion.

• Rubber Guards on Carriages: Protect vehicle doors from damage during operation.

Included Accessories

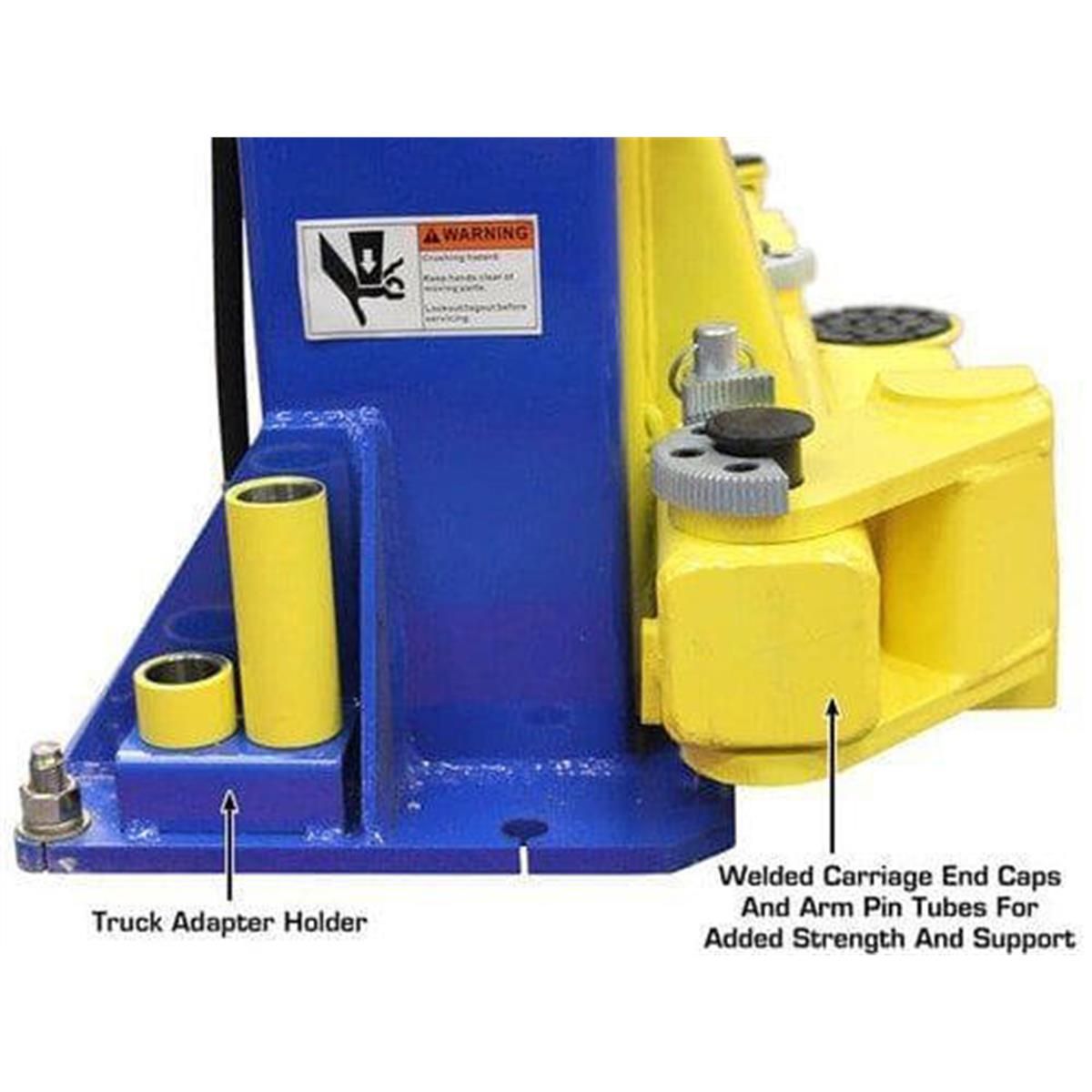

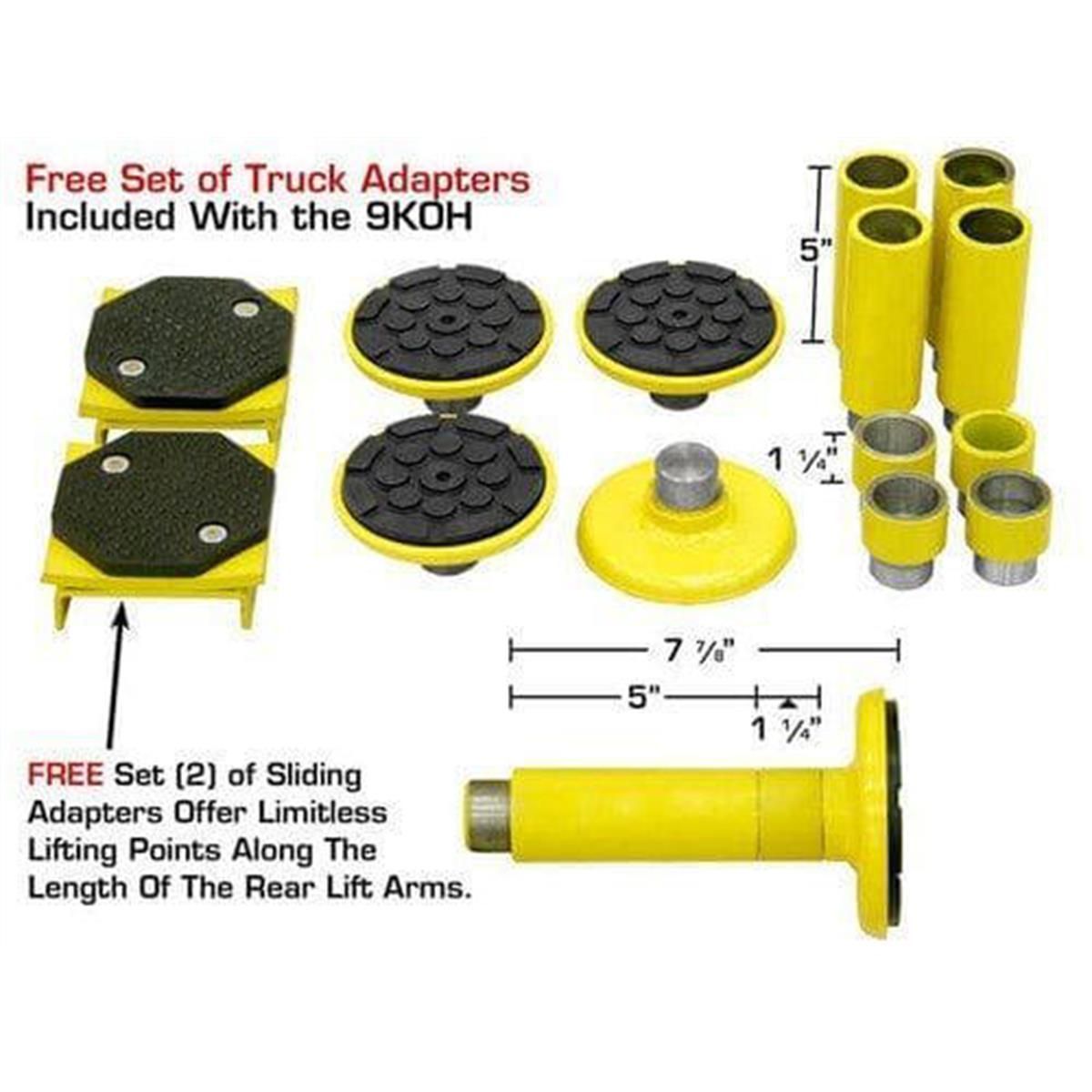

• 8-piece truck adapter set

• Sliding arm adapters

• Mounting hardware

Warranty

• Structural Components: 2-year warranty

• Hydraulic Components: 1-year warranty (parts only)

The Atlas 9KOHX offers a combination of strength, flexibility, and safety features, making it a reliable choice for various automotive lifting needs.
